| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

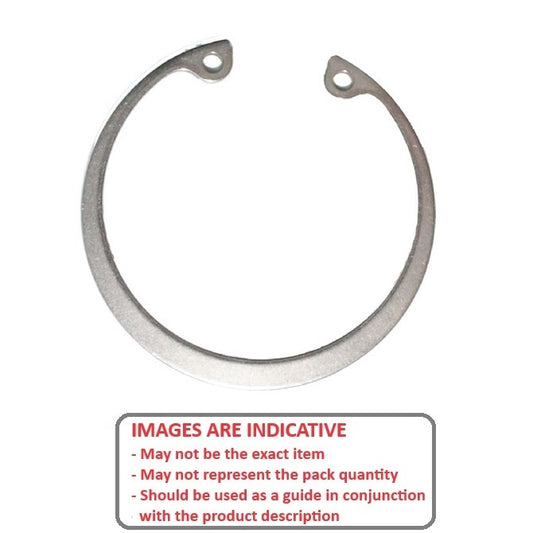

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 299 |
||||||
|
Part Number: CCI-01800-S15 (PK-50)
Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$42.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 299 |
||||||
|
Part Number: CCI-01800-S15 (PK-50)
Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$42.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 1969 |
||||||
|
Part Number: CCI-01800-C (PK-20)
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 1969 |
||||||
|
Part Number: CCI-01800-C (PK-20)
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 3079 |
||||||
|
Part Number: CCI-01900-C (PK-100)
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$22.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 3079 |
||||||
|
Part Number: CCI-01900-C (PK-100)
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$22.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 900 |
||||||
|
Part Number: CCI-01900-S15 (PK-4)
Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 900 |
||||||
|
Part Number: CCI-01900-S15 (PK-4)
Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.99
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.75
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 4106 |
||||||
|
Part Number: CCI-01905-CZY (PK-5)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$1.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.99 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.75
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 4106 |
||||||
|
Part Number: CCI-01905-CZY (PK-5)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$1.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.99
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.75
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 12563 |
||||||
|
Part Number: CCI-01905-C (PK-10)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$6.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.99 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.75
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 12563 |
||||||
|
Part Number: CCI-01905-C (PK-10)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$6.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.99
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.75
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 4889 |
||||||
|
Part Number: CCI-01905-S15 (PK-5)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.99 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.75
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 4889 |
||||||
|
Part Number: CCI-01905-S15 (PK-5)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

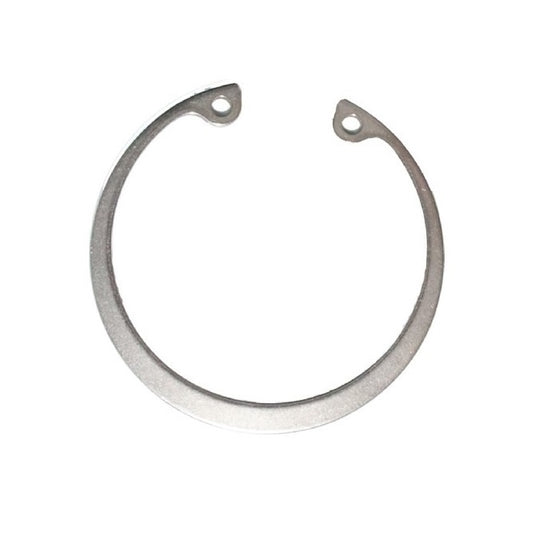

Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (Equiv. 0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.83
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 1849 |
||||||
|
Part Number: CCI-01974-CZY (PK-50)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$23.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (Equiv. 0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.83
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 1849 |
||||||
|
Part Number: CCI-01974-CZY (PK-50)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$23.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (Equiv. 0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.83
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 299 |
||||||
|
Part Number: CCI-01974-S15 (PK-4)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (Equiv. 0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.83
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 299 |
||||||
|
Part Number: CCI-01974-S15 (PK-4)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (Equiv. 0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.83
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5460 |
||||||
|
Part Number: CCI-01974-C (PK-10)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip 15 units (150 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (Equiv. 0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.83
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5460 |
||||||
|
Part Number: CCI-01974-C (PK-10)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip 15 units (150 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (Equiv. 0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 251 |
||||||
|
Part Number: CCI-02000-S15 (PK-4)
Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (Equiv. 0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 251 |
||||||
|
Part Number: CCI-02000-S15 (PK-4)
Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (Equiv. 0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 7405 |
||||||
|
Part Number: CCI-02000-C (PK-20)
Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip 38 units (760 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$3.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (Equiv. 0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 7405 |
||||||
|
Part Number: CCI-02000-C (PK-20)
Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip 38 units (760 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$3.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (Equiv. 0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.60
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-02000H-C (Each)
Internal Retaining Rings - 20x1.5x21 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (Equiv. 0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-02000H-C (Each)
Internal Retaining Rings - 20x1.5x21 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 01, 2028 |
||||||
|
Housing Bore (B)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (Equiv. 0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.91
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1315 |
||||||
|
Part Number: CCI-02064-S15 (PK-4)
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (Equiv. 0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.91
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1315 |
||||||
|
Part Number: CCI-02064-S15 (PK-4)
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$9.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (Equiv. 0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.91
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 2850 |
||||||
|
Part Number: CCI-02064-CZY (PK-250)
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$100.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (Equiv. 0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.91
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 2850 |
||||||
|
Part Number: CCI-02064-CZY (PK-250)
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$100.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (Equiv. 0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.91
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 2912 |
||||||
|
Part Number: CCI-02064-C (PK-100)
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$37.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (Equiv. 0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 1.91
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 2912 |
||||||
|
Part Number: CCI-02064-C (PK-100)
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$37.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (Equiv. 0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (Equiv. 0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 622 |
||||||
|
Part Number: CCI-02100-S15 (PK-50)
Internal Retaining Rings - 21x1x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$47.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
21.00
mm (Equiv. 0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (Equiv. 0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 622 |
||||||
|
Part Number: CCI-02100-S15 (PK-50)
Internal Retaining Rings - 21x1x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$47.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (Equiv. 0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (Equiv. 0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-02100-C (PK-20)
Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 13, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
21.00
mm (Equiv. 0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (Equiv. 0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-02100-C (PK-20)
Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 13, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 994 |
||||||
|
Part Number: CCI-02200N-CZY (PK-50)
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$23.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 994 |
||||||
|
Part Number: CCI-02200N-CZY (PK-50)
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$23.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 391 |
||||||
|
Part Number: CCI-02200N-S15 (Each)
Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$3.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 391 |
||||||
|
Part Number: CCI-02200N-S15 (Each)
Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$3.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 1235 |
||||||
|
Part Number: CCI-02200N-C (PK-10)
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip 7 units (70 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$5.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Min. Lug Diameter (h): 2.00 mm
Min. Extension (n): 1.50
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 1235 |
||||||
|
Part Number: CCI-02200N-C (PK-10)
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip 7 units (70 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$5.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.07
mm + 0.13 / - 0.00 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.37
mm + 0.00 / - 0.06 (Equiv. 0.92 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 13.72 mm
Clearance in Groove (C1): 14.99 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 2.06
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5062 |
||||||
|
Part Number: CCI-02200-C (PK-20)
Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$3.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.07
mm + 0.13 / - 0.00 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.37
mm + 0.00 / - 0.06 (Equiv. 0.92 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 13.72 mm
Clearance in Groove (C1): 14.99 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 2.06
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5062 |
||||||
|
Part Number: CCI-02200-C (PK-20)
Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now | Further orders can be expected around Sun, Jan 04, 2026 Regular price
$3.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.07
mm + 0.13 / - 0.00 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.37
mm + 0.00 / - 0.06 (Equiv. 0.92 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 13.72 mm
Clearance in Groove (C1): 14.99 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 2.06
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1196 |
||||||
|
Part Number: CCI-02200-S15 (PK-50)
Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$49.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.07
mm + 0.13 / - 0.00 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.37
mm + 0.00 / - 0.06 (Equiv. 0.92 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 13.72 mm
Clearance in Groove (C1): 14.99 mm
Min. Lug Diameter (h): 1.52 mm
Min. Extension (n): 2.06
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1196 |
||||||
|
Part Number: CCI-02200-S15 (PK-50)
Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 04, 2026 Regular price
$49.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
Groove Width (W)
1.60
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-02200H-C (Each)
Internal Retaining Rings - 22x1.5x23 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (Equiv. 0.906 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-02200H-C (Each)
Internal Retaining Rings - 22x1.5x23 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 01, 2028 |
||||||
