Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings (With Images)

Internal

Circlips

Tabbed

510 Products in this selection

This is a combined category of products from Standard Circlips Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00635-C (50 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 50 View the product page first if you are unsure.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00635-C (50 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-00635-C (50 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel CCI-00635-C (50 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated

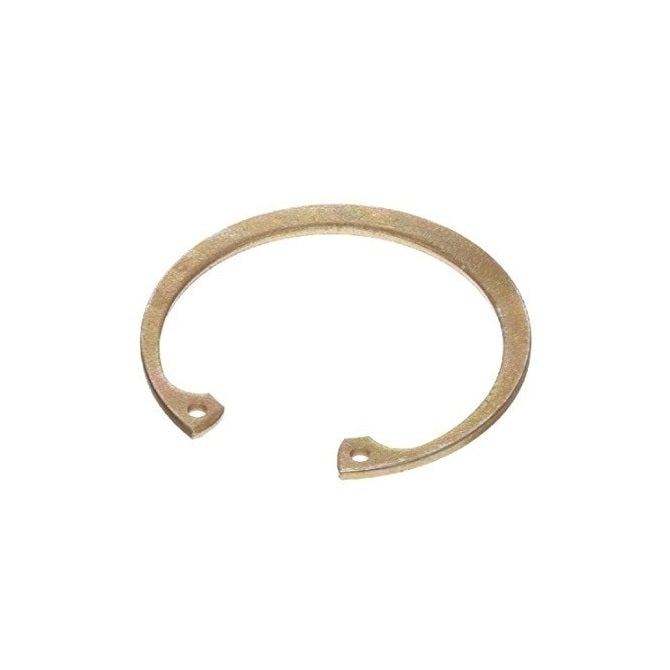

Part Number: CCI-00635-CZY (100 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $49.68 AUD Regular price Sale price $49.68 AUD Unit price per Per 100 View the product page first if you are unsure.
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00635-CZY (100 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $49.68 AUD Regular price Sale price $49.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-00635-CZY (100 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel Zinc Plated CCI-00635-CZY (100 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Carbon Steel Zinc Plated Regular price $49.68 AUD Regular price Sale price $49.68 AUD Unit price per Out of stock! Backorder Now
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00635-S15 (2 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings 155 units (310 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2 View the product page first if you are unsure.
6.35 mm	0.31 mm +/-0.025	6.81 mm +0.00/-0.05	7.11 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00635-S15 (2 Pcs) Circlips - 6.35 mm x 0.31 mm x 6.81 mm / Retaining Rings 155 units (310 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-00635-S15 (2 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Stainless PH15-7 Mo CCI-00635-S15 (2 Pcs) --- Circlips - 6.35 mm x 0.31 mm x 6.81 mm Stainless PH15-7 Mo Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 155 Available Now
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00794-C (20 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (80 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00794-C (20 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (80 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-00794-C (20 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel CCI-00794-C (20 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 4 Available Now
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00794-CZY (100 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Per 100 View the product page first if you are unsure.
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00794-CZY (100 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-00794-CZY (100 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel Zinc Plated CCI-00794-CZY (100 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Carbon Steel Zinc Plated Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Out of stock! Backorder Now
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13		0.51 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00794-S15 (5 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (20 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 5 View the product page first if you are unsure.
7.94 mm	0.31 mm +/-0.025	8.38 mm +0.00/-0.05	8.79 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.51 mm +0.05/-0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00794-S15 (5 Pcs) Circlips - 7.94 mm x 0.31 mm x 8.38 mm / Retaining Rings 4 units (20 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-00794-S15 (5 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Stainless PH15-7 Mo CCI-00794-S15 (5 Pcs) --- Circlips - 7.94 mm x 0.31 mm x 8.38 mm Stainless PH15-7 Mo Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per 4 Available Now
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00800-S15 (5 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 3 units (15 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 5 View the product page first if you are unsure.
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00800-S15 (5 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 3 units (15 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-00800-S15 (5 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Stainless PH15-7 Mo CCI-00800-S15 (5 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Stainless PH15-7 Mo Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per 3 Available Now
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00800-C (50 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 373 units (18650 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 50 View the product page first if you are unsure.
8.00 mm	0.80 mm +0.09/-0.00	8.40 mm +0.00/-0.05	8.70 mm +0.36/-0.10
Material: Carbon Steel Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00800-C (50 Pcs) Circlips - 8 mm x 0.8 mm x 8.4 mm / Retaining Rings 373 units (18650 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-00800-C (50 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Carbon Steel CCI-00800-C (50 Pcs) --- Circlips - 8 mm x 0.8 mm x 8.4 mm Carbon Steel Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 373 Available Now
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00900-S15 (2 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 38 units (76 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2 View the product page first if you are unsure.
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00900-S15 (2 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 38 units (76 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-00900-S15 (2 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Stainless PH15-7 Mo CCI-00900-S15 (2 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Stainless PH15-7 Mo Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per 38 Available Now
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10		0.90 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00900-C (50 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 20 units (1000 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50 View the product page first if you are unsure.
9.00 mm	0.80 mm +0.09/-0.00	9.40 mm +0.00/-0.05	9.80 mm +0.36/-0.10
Material: Carbon Steel Groove Width (W): 0.90 mm +0.05/-0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00900-C (50 Pcs) Circlips - 9 mm x 0.8 mm x 9.4 mm / Retaining Rings 20 units (1000 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-00900-C (50 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Carbon Steel CCI-00900-C (50 Pcs) --- Circlips - 9 mm x 0.8 mm x 9.4 mm Carbon Steel Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 20 Available Now
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00953-C (100 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Per 100 View the product page first if you are unsure.
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00953-C (100 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-00953-C (100 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel CCI-00953-C (100 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Out of stock! Backorder Now
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00953-S15 (2 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Tue, Apr 22, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2 View the product page first if you are unsure.
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00953-S15 (2 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Tue, Apr 22, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-00953-S15 (2 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Stainless PH15-7 Mo CCI-00953-S15 (2 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Stainless PH15-7 Mo Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Out of stock! Backorder Now
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00953-CZY (5 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings 38 units (190 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per Per 5 View the product page first if you are unsure.
9.53 mm	0.64 mm +/-0.050	10.08 mm +0.00/-0.05	10.54 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00953-CZY (5 Pcs) Circlips - 9.53 mm x 0.64 mm x 10.08 mm / Retaining Rings 38 units (190 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-00953-CZY (5 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel Zinc Plated CCI-00953-CZY (5 Pcs) --- Circlips - 9.53 mm x 0.64 mm x 10.08 mm Carbon Steel Zinc Plated Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 38 Available Now
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10		1.10 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01000-C (50 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 18 units (900 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 50 View the product page first if you are unsure.
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10
Material: Carbon Steel Groove Width (W): 1.10 mm +0.05/-0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01000-C (50 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 18 units (900 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01000-C (50 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Carbon Steel CCI-01000-C (50 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 18 Available Now
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10		1.10 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01000-S15 (5 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 13 units (65 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5 View the product page first if you are unsure.
10.00 mm	1.00 mm +0.11/-0.00	10.40 mm +0.00/-0.06	10.80 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.05/-0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01000-S15 (5 Pcs) Circlips - 10 mm x 1 mm x 10.4 mm / Retaining Rings 13 units (65 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01000-S15 (5 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Stainless PH15-7 Mo CCI-01000-S15 (5 Pcs) --- Circlips - 10 mm x 1 mm x 10.4 mm Stainless PH15-7 Mo Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per 13 Available Now
11.00 mm	1.00 mm +0.11/-0.00	11.40 mm +0.00/-0.06	11.80 mm +0.36/-0.10		1.10 mm +0.05/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01100-S15 (2 Pcs) Circlips - 11 mm x 1 mm x 11.4 mm / Retaining Rings 12 units (24 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 2 View the product page first if you are unsure.
11.00 mm	1.00 mm +0.11/-0.00	11.40 mm +0.00/-0.06	11.80 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.05/-0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01100-S15 (2 Pcs) Circlips - 11 mm x 1 mm x 11.4 mm / Retaining Rings 12 units (24 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01100-S15 (2 Pcs) --- Circlips - 11 mm x 1 mm x 11.4 mm Stainless PH15-7 Mo CCI-01100-S15 (2 Pcs) --- Circlips - 11 mm x 1 mm x 11.4 mm Stainless PH15-7 Mo Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 12 Available Now
11.00 mm	1.00 mm +0.11/-0.00	11.40 mm +0.00/-0.06	11.80 mm +0.36/-0.10		1.10 mm +0.05/-0.00
Material: Carbon Steel Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01100-C (50 Pcs) Circlips - 11 mm x 1 mm x 11.4 mm / Retaining Rings 15 units (750 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50 View the product page first if you are unsure.
11.00 mm	1.00 mm +0.11/-0.00	11.40 mm +0.00/-0.06	11.80 mm +0.36/-0.10
Material: Carbon Steel Groove Width (W): 1.10 mm +0.05/-0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01100-C (50 Pcs) Circlips - 11 mm x 1 mm x 11.4 mm / Retaining Rings 15 units (750 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01100-C (50 Pcs) --- Circlips - 11 mm x 1 mm x 11.4 mm Carbon Steel CCI-01100-C (50 Pcs) --- Circlips - 11 mm x 1 mm x 11.4 mm Carbon Steel Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 15 Available Now
11.11 mm	0.64 mm +/-0.050	11.71 mm +0.00/-0.06	12.24 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01111-C (20 Pcs) Circlips - 11.11 mm x 0.64 mm x 11.71 mm / Retaining Rings 22 units (440 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 20 View the product page first if you are unsure.
11.11 mm	0.64 mm +/-0.050	11.71 mm +0.00/-0.06	12.24 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01111-C (20 Pcs) Circlips - 11.11 mm x 0.64 mm x 11.71 mm / Retaining Rings 22 units (440 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-01111-C (20 Pcs) --- Circlips - 11.11 mm x 0.64 mm x 11.71 mm Carbon Steel CCI-01111-C (20 Pcs) --- Circlips - 11.11 mm x 0.64 mm x 11.71 mm Carbon Steel Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 22 Available Now
11.11 mm	0.64 mm +/-0.050	11.71 mm +0.00/-0.06	12.24 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01111-S15 (2 Pcs) Circlips - 11.11 mm x 0.64 mm x 11.71 mm / Retaining Rings 242 units (484 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
11.11 mm	0.64 mm +/-0.050	11.71 mm +0.00/-0.06	12.24 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01111-S15 (2 Pcs) Circlips - 11.11 mm x 0.64 mm x 11.71 mm / Retaining Rings 242 units (484 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01111-S15 (2 Pcs) --- Circlips - 11.11 mm x 0.64 mm x 11.71 mm Stainless PH15-7 Mo CCI-01111-S15 (2 Pcs) --- Circlips - 11.11 mm x 0.64 mm x 11.71 mm Stainless PH15-7 Mo Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 242 Available Now
11.11 mm	0.64 mm +/-0.050	11.71 mm +0.00/-0.06	12.24 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01111-CZY (5 Pcs) Circlips - 11.11 mm x 0.64 mm x 11.71 mm / Retaining Rings 40 units (200 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Per 5 View the product page first if you are unsure.
11.11 mm	0.64 mm +/-0.050	11.71 mm +0.00/-0.06	12.24 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01111-CZY (5 Pcs) Circlips - 11.11 mm x 0.64 mm x 11.71 mm / Retaining Rings 40 units (200 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01111-CZY (5 Pcs) --- Circlips - 11.11 mm x 0.64 mm x 11.71 mm Carbon Steel Zinc Plated CCI-01111-CZY (5 Pcs) --- Circlips - 11.11 mm x 0.64 mm x 11.71 mm Carbon Steel Zinc Plated Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per 40 Available Now
11.51 mm	0.64 mm +/-0.050	12.12 mm +0.00/-0.06	12.65 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01151-C (100 Pcs) Circlips - 11.51 mm x 0.64 mm x 12.12 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $42.77 AUD Regular price Sale price $42.77 AUD Unit price per Per 100 View the product page first if you are unsure.
11.51 mm	0.64 mm +/-0.050	12.12 mm +0.00/-0.06	12.65 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01151-C (100 Pcs) Circlips - 11.51 mm x 0.64 mm x 12.12 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $42.77 AUD Regular price Sale price $42.77 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01151-C (100 Pcs) --- Circlips - 11.51 mm x 0.64 mm x 12.12 mm Carbon Steel CCI-01151-C (100 Pcs) --- Circlips - 11.51 mm x 0.64 mm x 12.12 mm Carbon Steel Regular price $42.77 AUD Regular price Sale price $42.77 AUD Unit price per Out of stock! Backorder Now
11.51 mm	0.64 mm +/-0.050	12.12 mm +0.00/-0.06	12.65 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01151-S15 Circlips - 11.51 mm x 0.64 mm x 12.12 mm / Retaining Rings 21 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each View the product page first if you are unsure.
11.51 mm	0.64 mm +/-0.050	12.12 mm +0.00/-0.06	12.65 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01151-S15 Circlips - 11.51 mm x 0.64 mm x 12.12 mm / Retaining Rings 21 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-01151-S15 --- Circlips - 11.51 mm x 0.64 mm x 12.12 mm Stainless PH15-7 Mo CCI-01151-S15 --- Circlips - 11.51 mm x 0.64 mm x 12.12 mm Stainless PH15-7 Mo Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per 21 Available Now
11.51 mm	0.64 mm +/-0.050	12.12 mm +0.00/-0.06	12.65 mm +0.25/-0.13		0.74 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01151-CZY (5 Pcs) Circlips - 11.51 mm x 0.64 mm x 12.12 mm / Retaining Rings 40 units (200 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 5 View the product page first if you are unsure.
11.51 mm	0.64 mm +/-0.050	12.12 mm +0.00/-0.06	12.65 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm +0.08/-0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01151-CZY (5 Pcs) Circlips - 11.51 mm x 0.64 mm x 12.12 mm / Retaining Rings 40 units (200 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01151-CZY (5 Pcs) --- Circlips - 11.51 mm x 0.64 mm x 12.12 mm Carbon Steel Zinc Plated CCI-01151-CZY (5 Pcs) --- Circlips - 11.51 mm x 0.64 mm x 12.12 mm Carbon Steel Zinc Plated Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 40 Available Now
12.00 mm	1.00 mm +0.11/-0.00	12.50 mm +0.00/-0.06	13.00 mm +0.36/-0.10		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01200-S15 (2 Pcs) Circlips - 12 mm x 1 mm x 12.5 mm / Retaining Rings 6 units (12 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 View the product page first if you are unsure.
12.00 mm	1.00 mm +0.11/-0.00	12.50 mm +0.00/-0.06	13.00 mm +0.36/-0.10
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01200-S15 (2 Pcs) Circlips - 12 mm x 1 mm x 12.5 mm / Retaining Rings 6 units (12 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01200-S15 (2 Pcs) --- Circlips - 12 mm x 1 mm x 12.5 mm Stainless PH15-7 Mo CCI-01200-S15 (2 Pcs) --- Circlips - 12 mm x 1 mm x 12.5 mm Stainless PH15-7 Mo Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 6 Available Now
