CCI-01900-C (100 Pcs)

Internal Retaining Rings - 19x1x20 mm - Carbon Steel

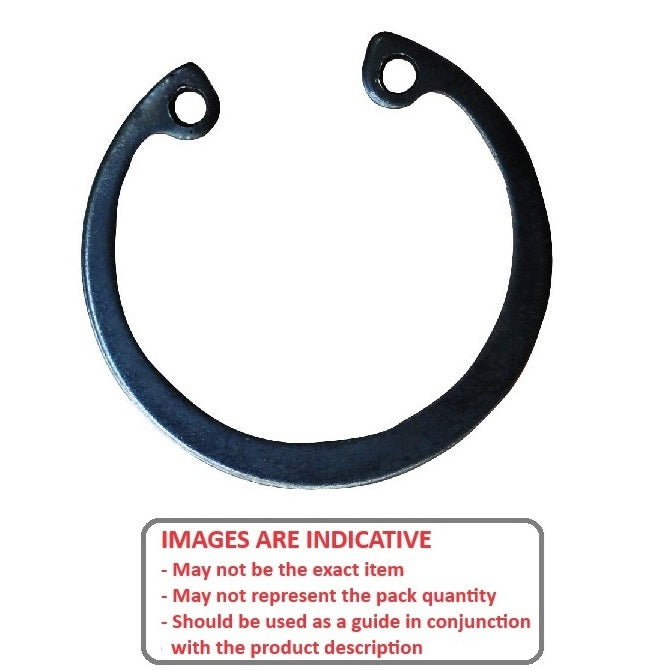

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store Name: Miniature Bearings Australia (Minibearings)

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$21.68 AUD
$26.02 AUD $21.68 AUD
per 100
Backorder
Order 50 or more (5000 pcs) for $19.51 AUD per 100
Backorder now! Backorders for more than the stock quantity are expected before Jul 16, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 5622

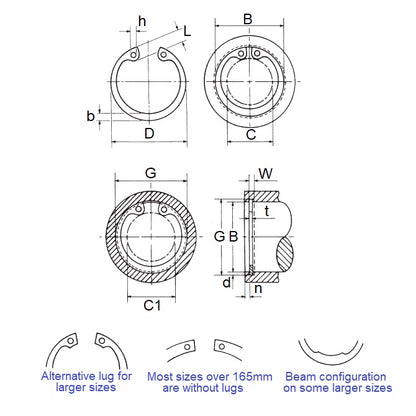

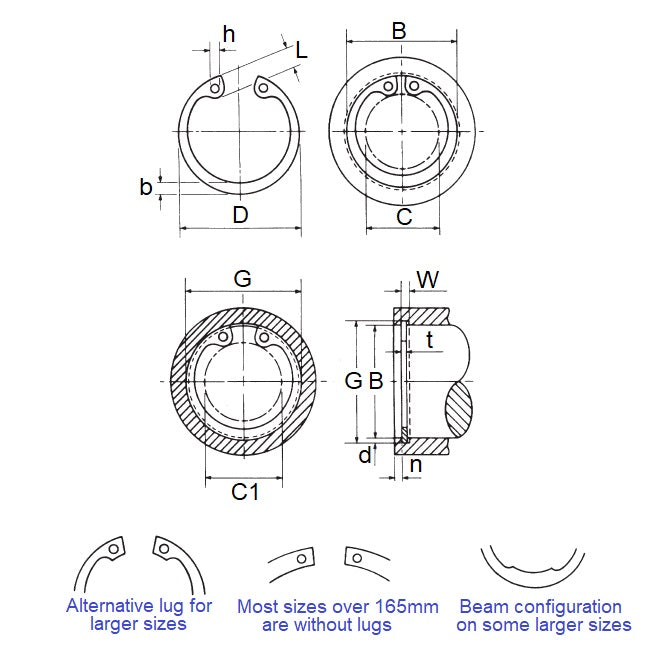

Housing Bore (B): 19.00mm
(19.00mm is 0.748 in.)

Carbon Steel
  • Clip Thickness (T): 1.00mm
    + 0.13 / - 0.00
    (1.00mm is 0.039 in.)
  • Groove Dia. (Dg): 20.00mm
    + 0.00 / - 0.06
    (20.00mm is 0.787 in.)
  • Approx. Loose Circlip OD (Dr): 20.50mm
    + 0.42 / - 0.13
  • Groove Width (W): 1.10mm
    + 0.08 / - 0.00
  • Clearance in Bore (C): 10.40mm
  • Clearance in Groove (C1): 11.80mm
  • Min. Lug Diameter (h): 2.00mm
  • Min. Extension (n): 1.50
  • Standard: DIN472

Brand: MBA
Country of Origin: US

Alternative Parts Include: D13000190, D1300-0190APP, D13000190APP, D1300-0190, D1300-019, D1300019, NZT.J19, DHO019, DHO-019, BN822019, BN-822-019, 1300-0190APP, 13000190APP, 1300-0190, 13000190, MD0472MQB019, J19BLS, J19, J-019, J019, J19-BLS, J19X1, 472019, 472-019, CCI01900C, Ellison, Bossard, Waldes, NoCor, Rotor Clip, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
