W0120-ALN-W-SET (PK-10)

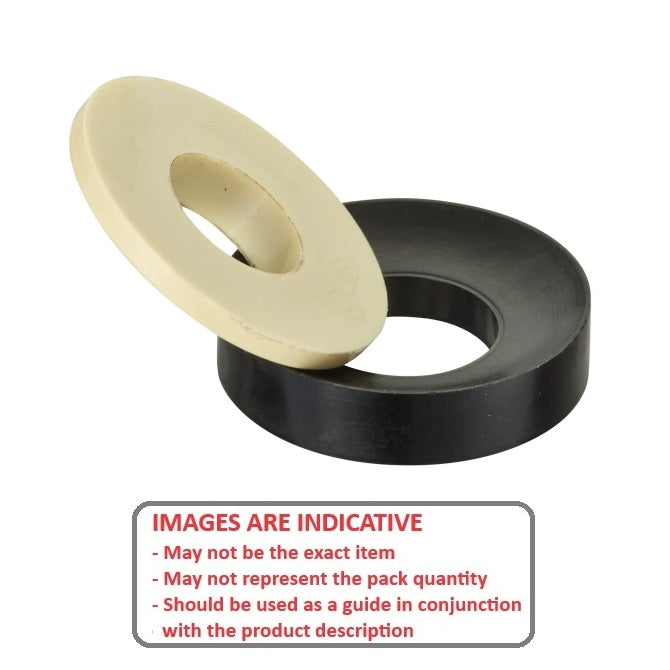

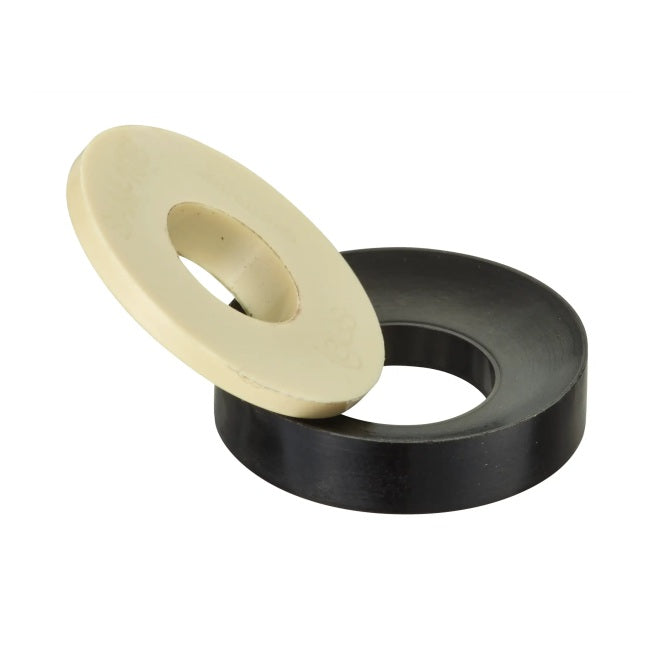

Self Aligning Washers - 12x14.5x30 mm Sets - Carbon Spring Steel Self Finish Washer
Iglidur
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more packs of 10 (500 pcs)
for $152.71 AUD per 10 pack
12x14.5x30 mm Self Aligning Washers - Carbon Spring Steel Self Finish - Sold per pack of 10:
Base Category: Washers - Self Aligning
Top Level Category: Washers - Self Aligning - Sets - Plastic
Product Details

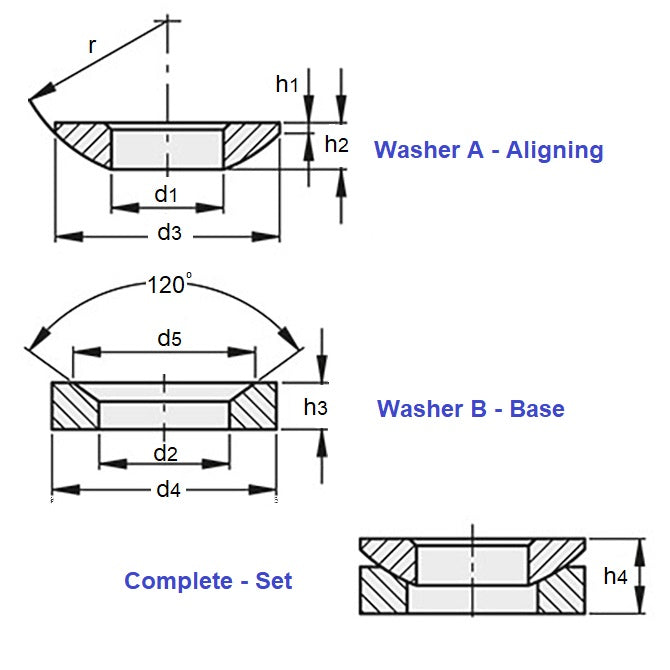

Nominal Inside Diameter (B): 12.00mm+ 0.50 / - 0.00
(12.00mm is 0.472 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (B): 12.00mm
+ 0.50 / - 0.00
(12.00mm is 0.472 in.)
- Housing Pad Bore (d3): 14.50mm
(14.50mm is 0.571 in.)
- OD (d2): 30.00mm
(30.00mm is 1.181 in.)
- Ball socket (h1): 5.00mm
- Spherical Disk (h2): 6.00mm
- Overall Height (H): 8.00mm
- Radius (R): 32.00mm
- Compensation angle: 2°
- Short Term Max Tensile Strngth: 12000N
- Long Term Max Tensile Strength: 6000N
Brand: Iglidur
Country of Origin: DE
Product Compliance and Data
Similar to
- Igus® SAM-12
- SAM12
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0120ALNWSET, W0120ALN
