W0143-D-026-004-BB-C (Each)

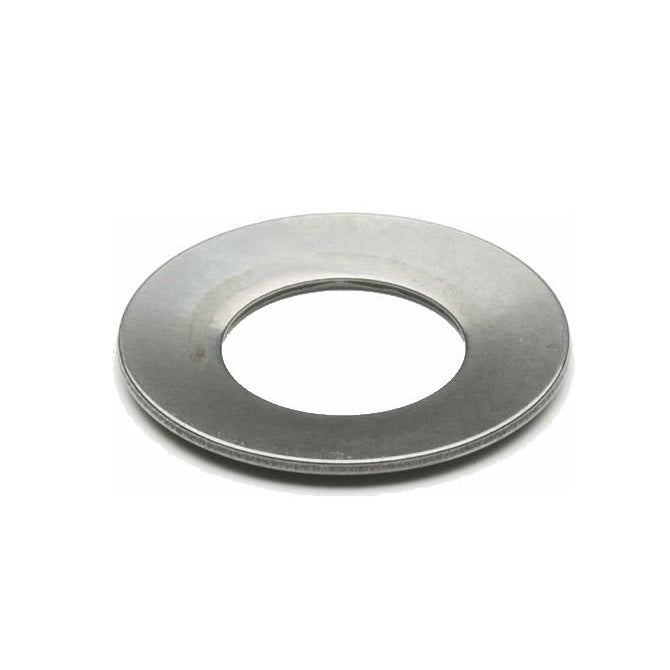

Disc Spring Washers - 25.7x14x0.4 mm Ball Bearing Type - Carbon Steel Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Order 50 or more
for $0.00 AUD Each
25.7x14x0.4 mm Disc Spring Washers - Carbon Steel - Sold Per Each:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Ball Bearing Type

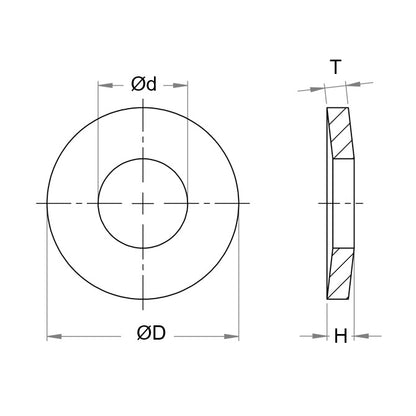

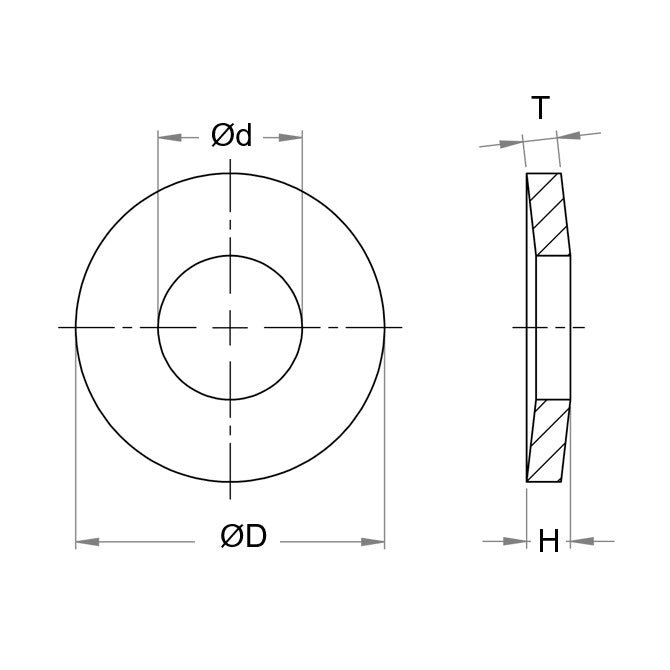

Product Details
Nominal Outside Diameter (A): 25.70mm(25.70mm is 1.012 in.)
Carbon Steel
- Nominal Outside Diameter (A): 25.70mm
(25.70mm is 1.012 in.)
- Nominal Inside Diameter (B): 14.00mm
+ 0.30 / - 0.00
(14.00mm is 0.551 in.)
- Thickness (C): 0.40mm
(0.40mm is 0.016 in.)
-
+/- 1.1
- Suits Bearing Size: 6000 / 629
- Load at 0.75 height: 6.58Kg
- Free Height (E): 0.90mm
- Inside Height (D): 0.50mm
Brand: MBA
Country of Origin: AU
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0143D026004BBC, W0143D026
