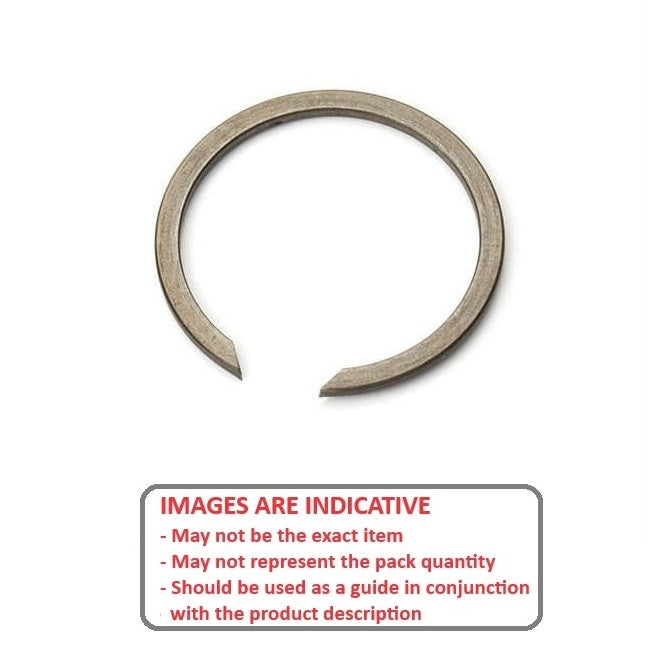

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

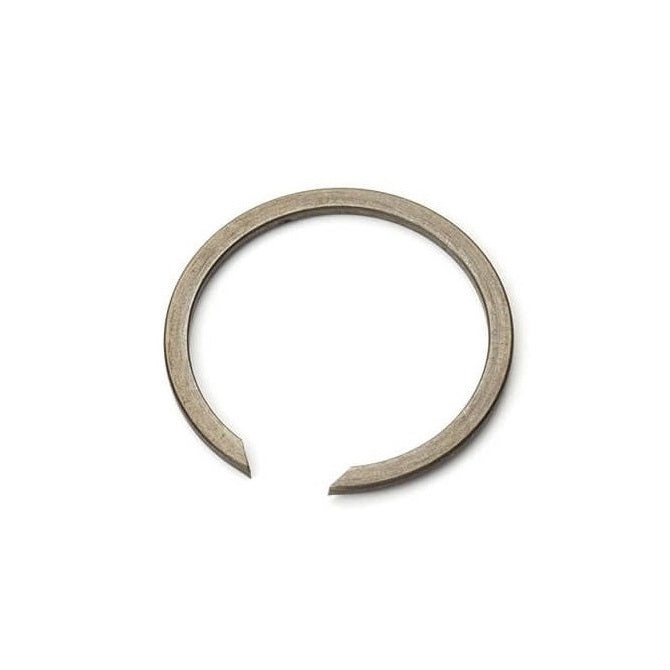

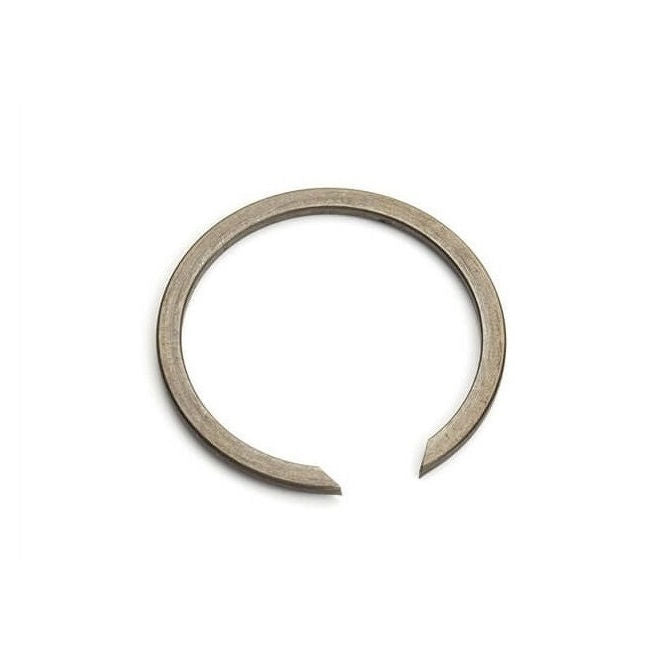

Snap - 7 mm x 0.8 mm x 5.5 mm
WRI-0070-LS

Name: 1076416 | WRI-0070-LS --- Snap - 7 mm x 0.8 mm x 5.5 mm
Brand: MBA
SKU: WRI0070LS
Availability: OutOfStock

MBA

Category: Snap Rings - Internal - Basic - Carbon Steel

Additional resources:
Spiral Rings
Wire Rings
Snap Rings and Spiral Rings PDF

Discontinued

Similar Items

This item is discontinued. Please contact us for a special quote if you require a large quantity.

Quantity

Base Category: Snap Rings - Internal

Top Level Category: Snap Rings - Internal - Basic - Carbon Steel

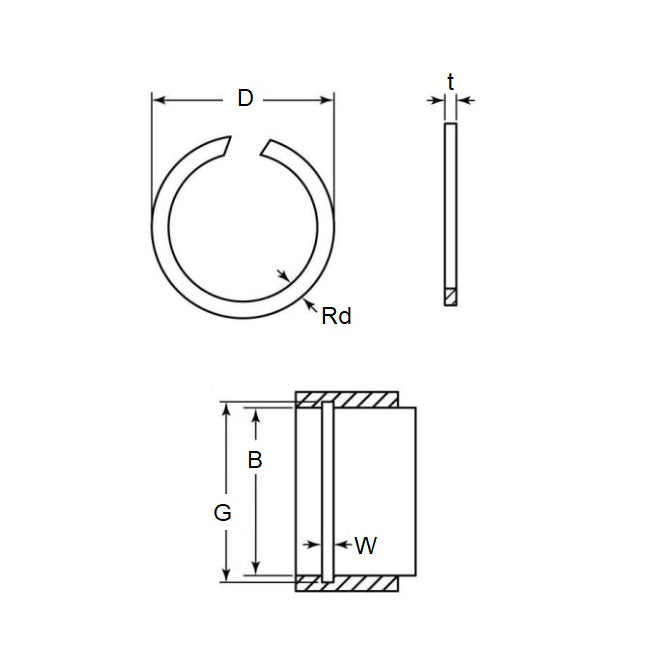

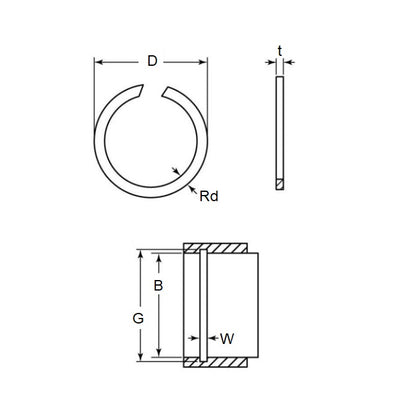

Product Details:

Housing Bore (B): 7.00mm
Spring Steel

Clip Thickness (t): 0.80mm
_+0/-0.10
Approx. Free ID: 5.5mm
Free OD Max (D): 7.50mm
Section (Rd): 1.00mm
_+0/-0.10
Groove Dia. (G): 7.30mm
_+0.09/-0.00
Groove Width (W): 0.90
Spring Steel
Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: DE

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
