AC-2050-3

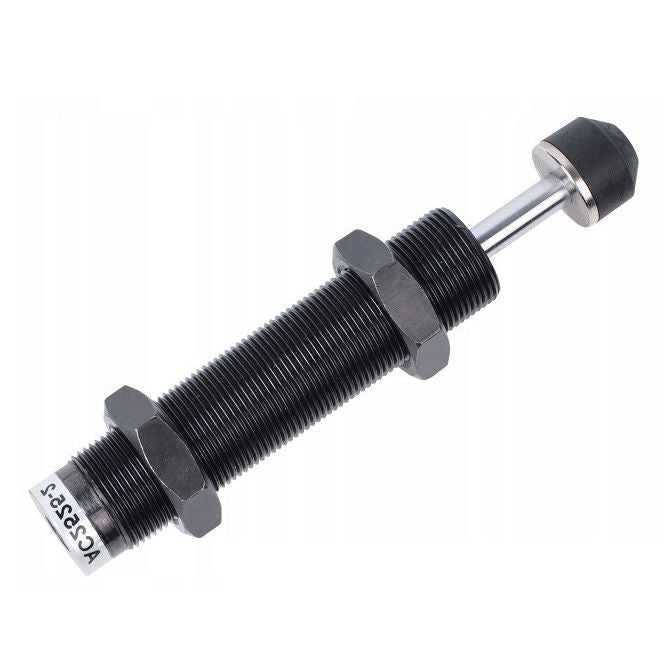

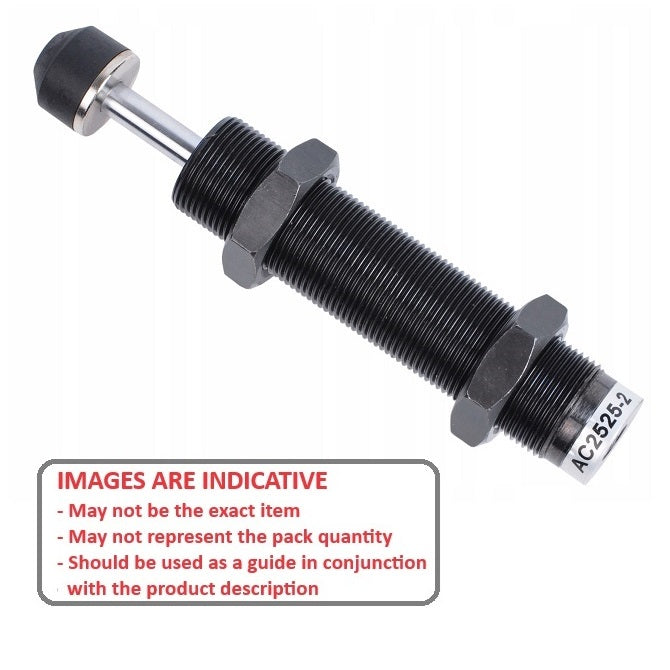

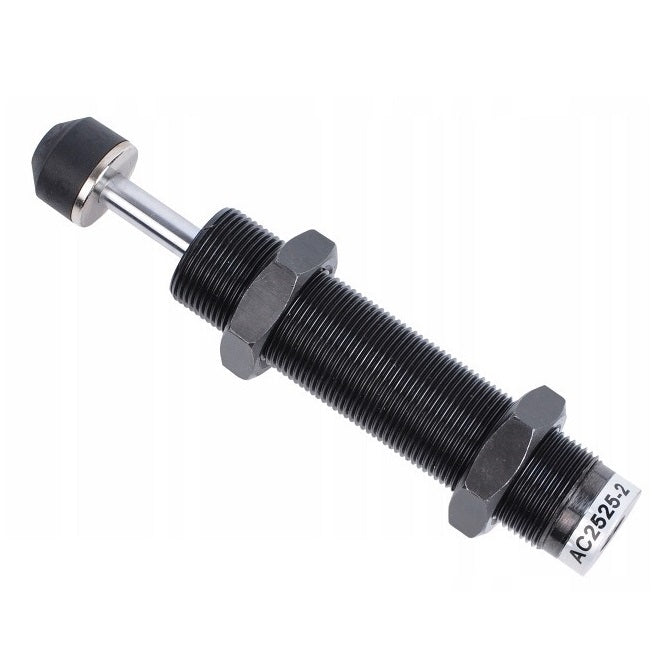

Hydraulic Shock Absorbers - 50 mm M20x1.5 235 mm
MBA
Base Category: Shock Absorbers - Hydraulic
Top Level Category: Shock Absorbers - Hydraulic - Non-Adjustable - C-Jac
Product Details:Stroke: 50.0mm
- Thread (C): M20x1.5
- Length (A): 235.0mm
- Shaft Size (D): 6.0mm
- Max. Effective Mass: 1200Kg
- Max. Nm Per Cycle: 60Nm
- Max. Nm Per Hour: 60000Nm
- Max Impact Speed: 1.0m/s
- Weight: 300g
- Body Length (B): 167mm
- Tip Length x Diameter (CxE): 18x18mm

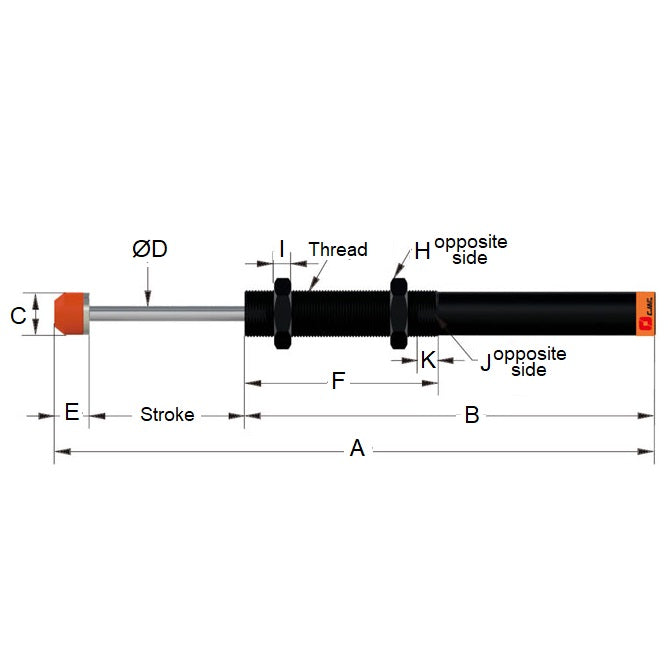

- Figure: Figure 1.
Brand: MBA
Country of Origin: DE
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
