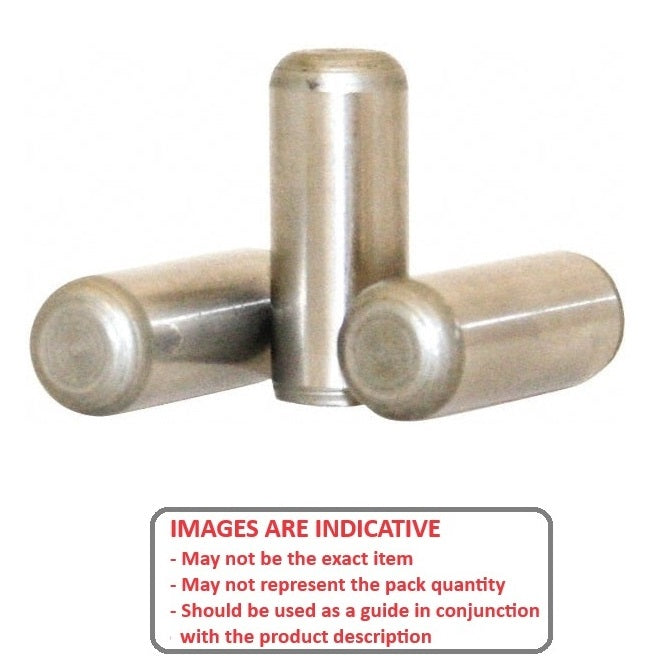

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

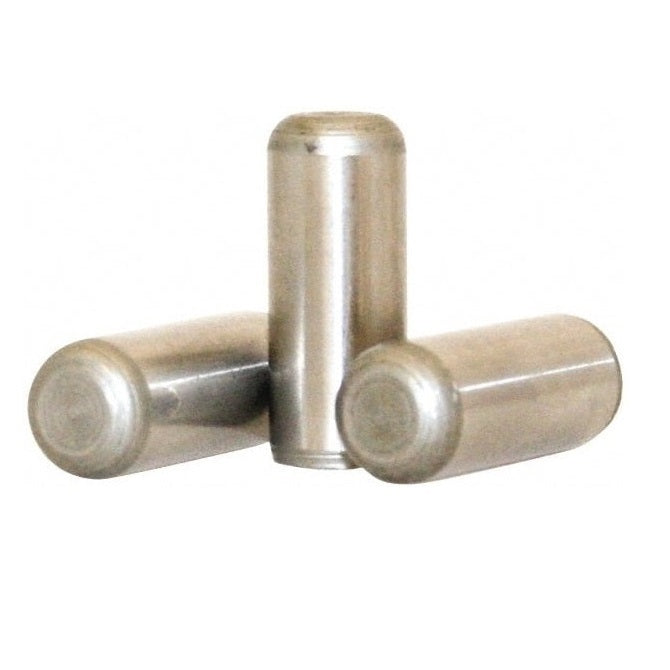

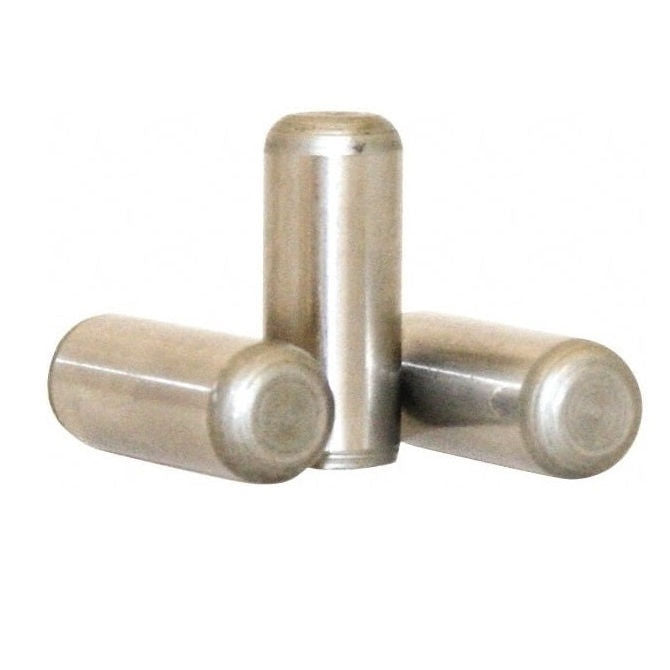

Pins - 3 mm x 8 mm x 8 mm
DP030-008-416-2

Name: 1046655 | DP030-008-416-2 --- Pins - 3 mm x 8 mm x 8 mm
Brand: MBA
SKU: DP0300084162
Availability: OutOfStock

MBA

Category: Pins - Dowel - Standard - Chamfered Ends - 416 Stainless

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Discontinued

Similar Items

This item is discontinued. Please contact us for a special quote if you require a large quantity.

Quantity

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 416 Stainless

Product Details:

Diameter (D): 3.000mm
_{+0.004/+0.012}

416 Stainless Rc 36-42

Length (L): 8.00mm
_+/-0.254
Overall Length: 8.00mm
_+/-0.254

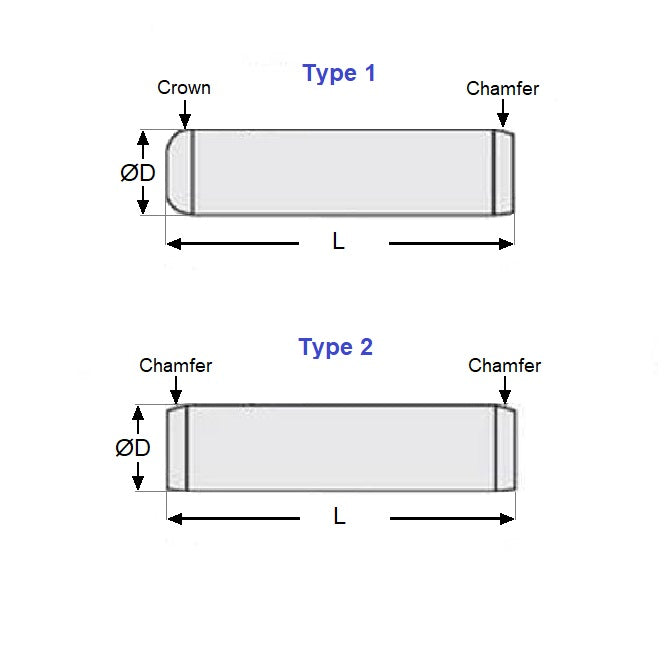

Type: 2 (See diagram)
Chamfer: 0.50 x 15 Deg
Standard: Based on ISO2338

Brand: MBA
Country of Origin: DE

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
