DB050-064-120 (PK-3)

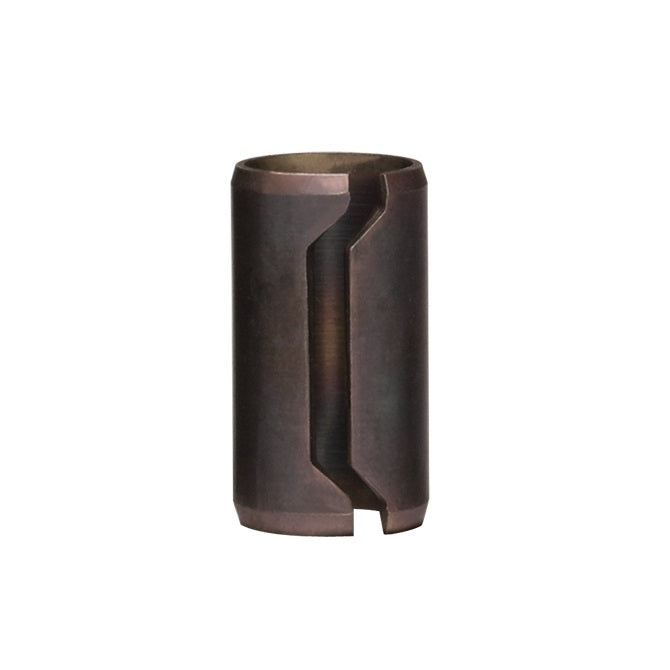

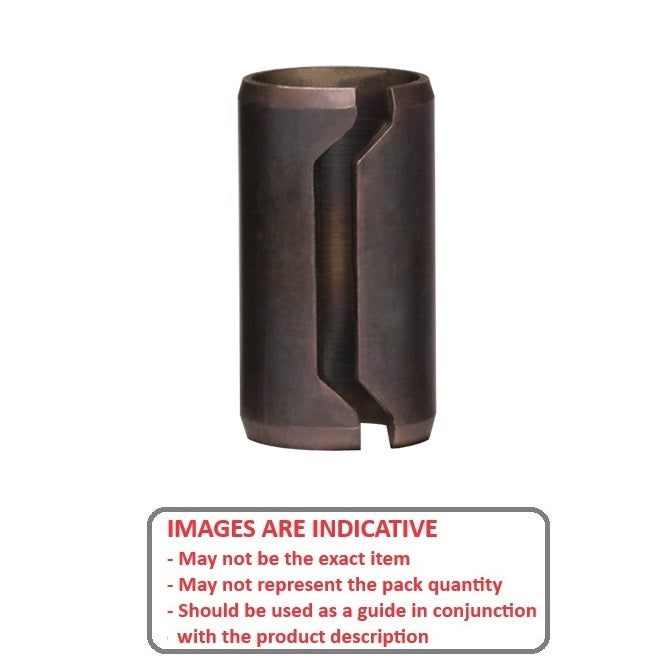

Dowel Bushings Pins - 5x12x6.35 mm
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportDowel Pins Catalogue PDF
Master Pins Catalogue PDF
5x12x6.35 mm Dowel Bushings Pins - - Sold per pack of 3:
Base Category: Pins - Dowel Bushings
Top Level Category: Pins - Dowel Bushings
Product Details
Deleted Item. Available while stocks last.
Suitable Bolt Size: 5.00mm
(5.00mm is 0.197 in.)

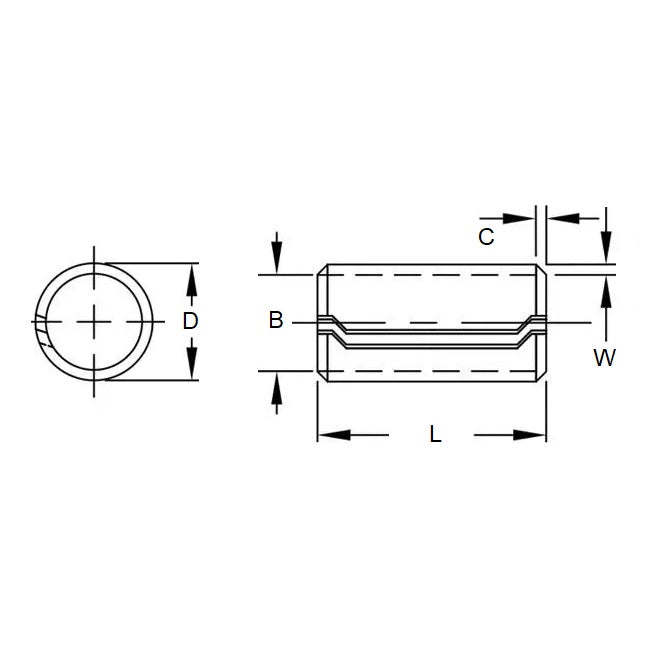

- Suitable Bolt Size: 5.00mm
(5.00mm is 0.197 in.)
- Length : 12.00mm
+ 0.0 / - 1.0
(12.00mm is 0.472 in.)
- Rec. Hole Diameter Min: 6.35mm
(6.35mm is 0.25 in.)
- Unassembled Diameter (D) Min: 6.60mm
- Unassembled Diameter (D) Max: 6.86mm
- Wall Thickness: 0.56mm
- Rec. Hole Diameter Max: 6.48mm
- Minimum Single Shear: 17.40kN
Brand: NoCor
Country of Origin: DE
Product Compliance and Data
Similar to
- DB513
- DB5-13
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
