PSP-035-024-C

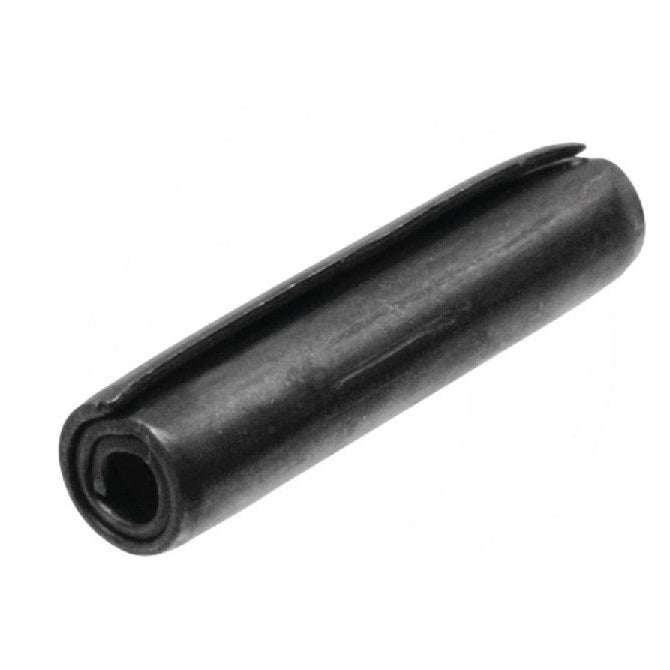

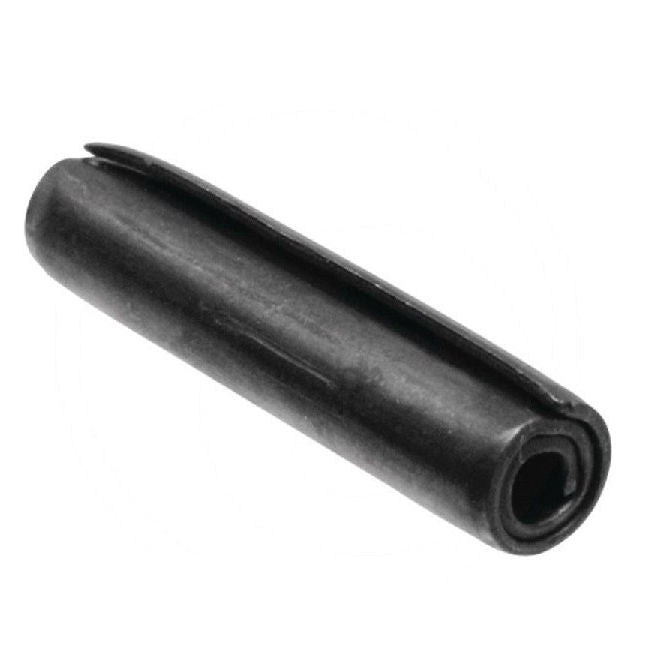

Coiled Pins - 3.5x24 - 3.50 - 3.62 - Carbon Steel - High Carbon

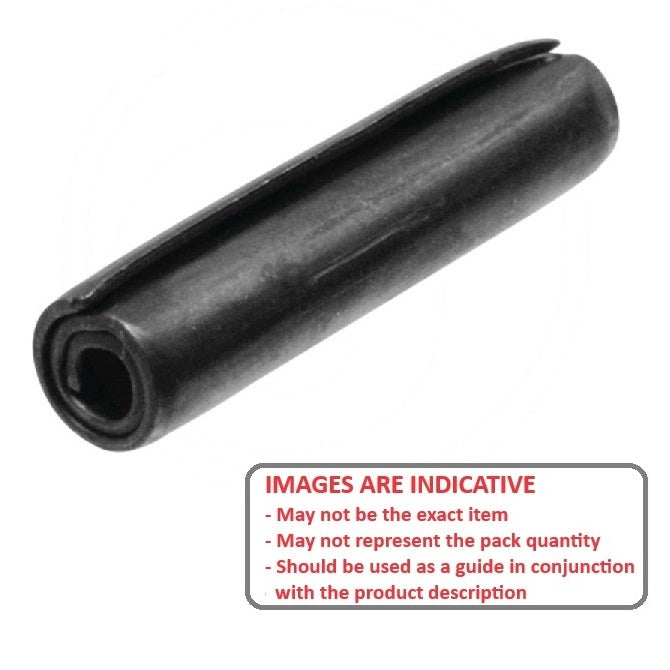

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Master Pins Catalogue PDF
Roll Pins
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Standard Duty

Product Details:

Nom. Hole Diameter: 3.50mm
(3.50mm is 0.138 in.)

Carbon Steel - High Carbon
  • Length: 24.00mm
    +/- 0.50
    (24.00mm is 0.945 in.)
  • Drill Size: 3.50 - 3.62mm
    (3.50 - 3.62mm is 0.138 in.)
  • Loose Diameter: 3.67 - 3.84mm
  • ISO: Standard Duty ISO8750 / ASME B18.8.3M
  • Hardness: RC 46-53 (HV 420 to 545)
  • Double Shear Strength Min.: 7Kn

Brand: MBA
Country of Origin: DE

Alternative Parts Include: SEP3.5-24, SEP3524

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
