PSP-032-035-C

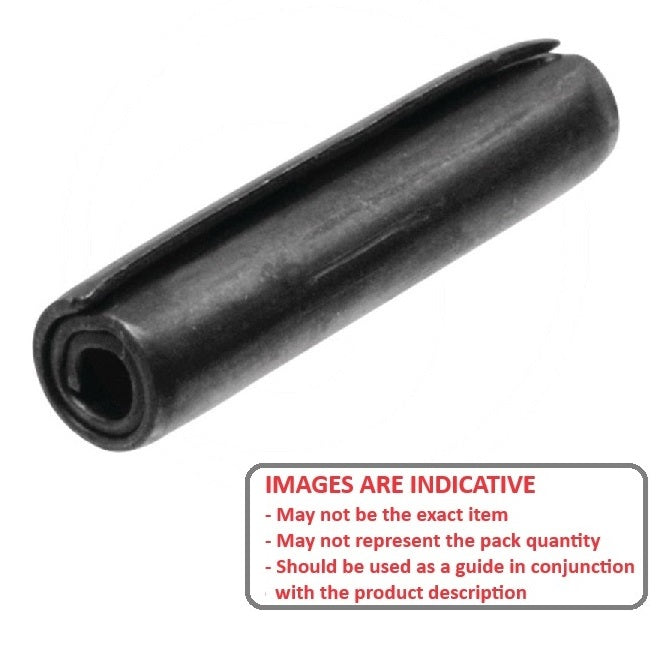

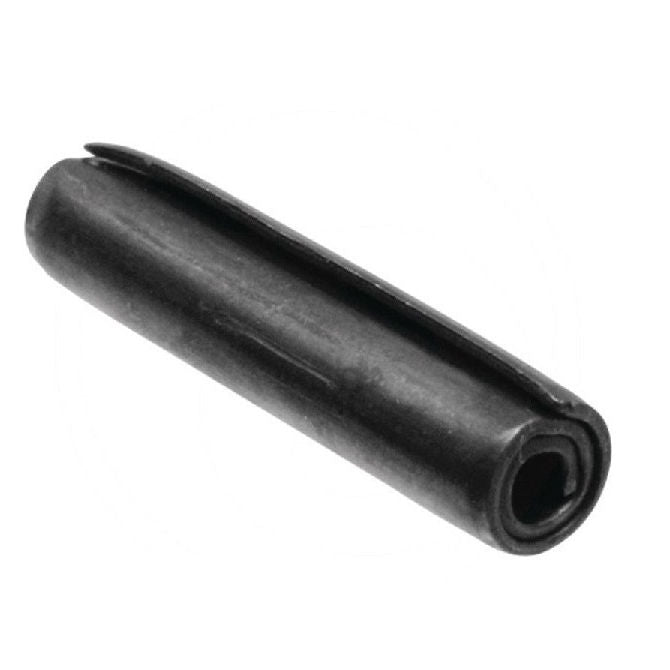

Coiled Pins - 3.18x34.93 - 3.18 - 3.28 - Carbon Steel - High Carbon

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Master Pins Catalogue PDF
Roll Pins
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Standard Duty

Product Details:

Nom. Hole Diameter: 3.18mm
(3.18mm is 0.125 in.)

Carbon Steel - High Carbon
  • Length: 34.93mm
    +/- 0.50
    (34.93mm is 1.375 in.)
  • Drill Size: 3.18 - 3.28mm
    (3.18 - 3.28mm is 0.125 in.)
  • Loose Diameter: 3.33 - 3.51mm
  • ISO: Standard Duty ASME B18.8.2
  • Hardness: RC 46-53 (HV 420 to 545)
  • Double Shear Strength Min.: 6Kn

Brand: MBA
Country of Origin: US

Alternative Parts Include: A9Q36-0444, A9Q360444

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
