SS080M-0294-S4-S440-FB (Each)

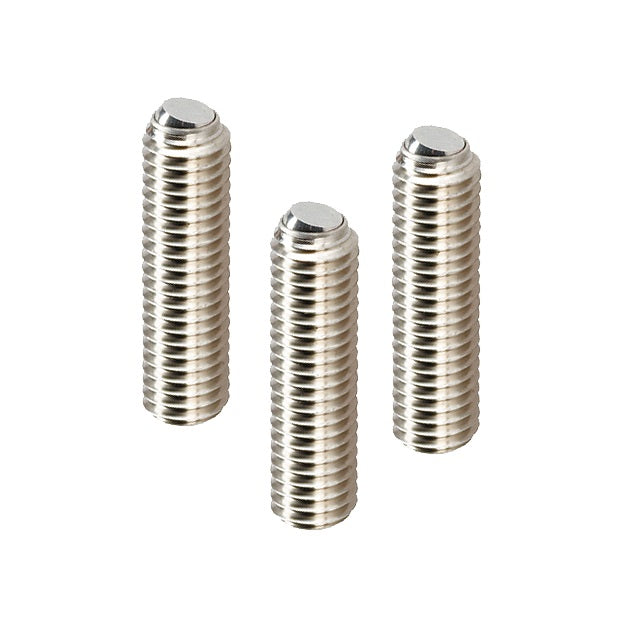

Flat Tip Aligning Socket Set Screws - M8 - 8x1.25mm - 29.4 mm - Aligning Flat Tip - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Socket Set Screws Master PDF
Order 50 or more
for $24.26 AUD Each
M8 (8x1.25mm) 29.4 mm - Aligning Flat Tip Flat Tip Aligning Socket Set Screws - 304 Stainless Steel with 440C Stainless HRC 50-55 tip - Sold per Each:
Base Category: Socket Set Screws - Flat Tip Aligning
Top Level Category: Socket Set Screws - Flat Tip Aligning - Stainless Steel
Product Details
Thread Size: M8 (8x1.25mm)304 Stainless Steel with 440C Stainless HRC 50-55 tip

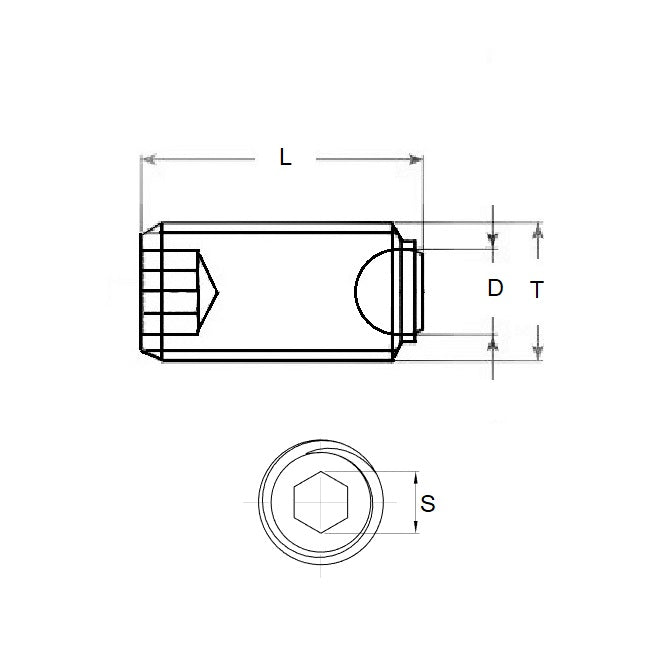

- Thread Size: M8 (8x1.25mm)
- Thread Length (L): 29.4mm
(29.4mm is 1.157 in.)
- Type: Aligning Flat Tip
- 30.0
- Ball Diameter (D): 4.6
- Hex Key Size: 4.0
- Body Material: 304 Stainless Steel
- Ball Material: 440C Stainless HRC 50-55
- Pitch: 1.3mm
- Threads Per Inch: 20.32TPI
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® BSF8X30-SUS
- Misumi® FSU8-30
- Misumi® SCSS-M8X30-FB
- BSF8X30SUS
- SCSSM8X30FB
- FSU830
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SS080M0294S4S440FB, SS080M0294S4
