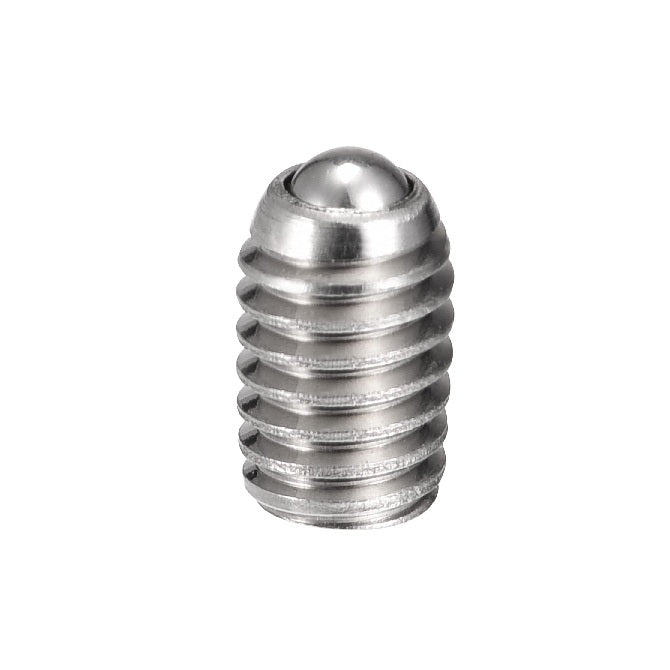

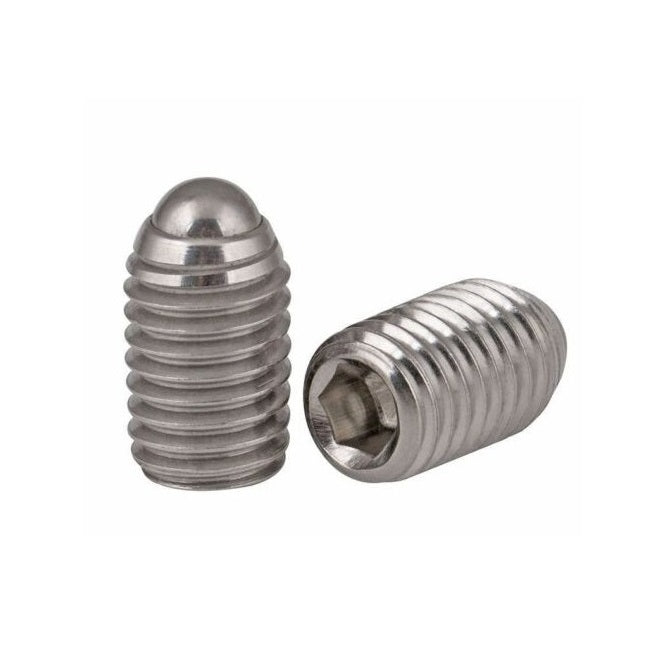

SS030M-0102-S4-S440-RB

Rolling Ball Tip Socket Set Screws - M3 - 3x0.5mm - 9.7 mm - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Socket Set Screws Master PDF
Price:
$14.68 AUD
$17.62 AUD $14.68 AUD
Each
Backorder
Order 50 or more for $13.21 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Sep 15, 2025

Base Category: Socket Set Screws - Rolling Ball Tip

Top Level Category: Socket Set Screws - Rolling Ball Tip - Stainless Steel

Product Details

Thread Size: M3 (3x0.5mm)

304 Stainless Steel with 440C Stainless HRC 50-55 tip
  • Thread Length (L): 9.7mm
    (9.7mm is 0.382 in.)
  • Type: Rolling Ball Tip
  • Overall Length (L): 10.2mm
  • Ball Diameter (D): 1.5mm
  • Hex Key Size: 1.5
  • Body Material: 304 Stainless Steel
  • Ball Material: 440C Stainless HRC 50-55
  • Pitch: 0.5mm
  • Threads Per Inch: 50.8TPI

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • Misumi RSU3-10.2
  • Misumi SCSS-M3X10-R
  • RSU3102
  • SCSSM3X10R

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
