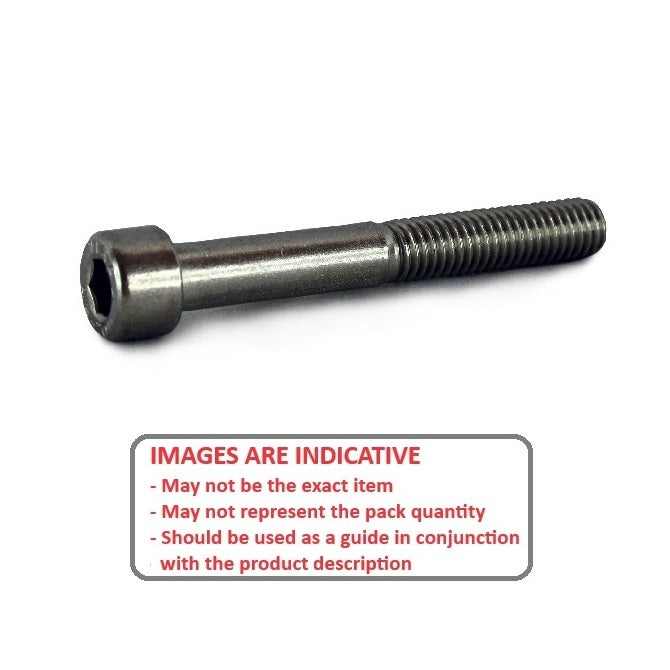

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

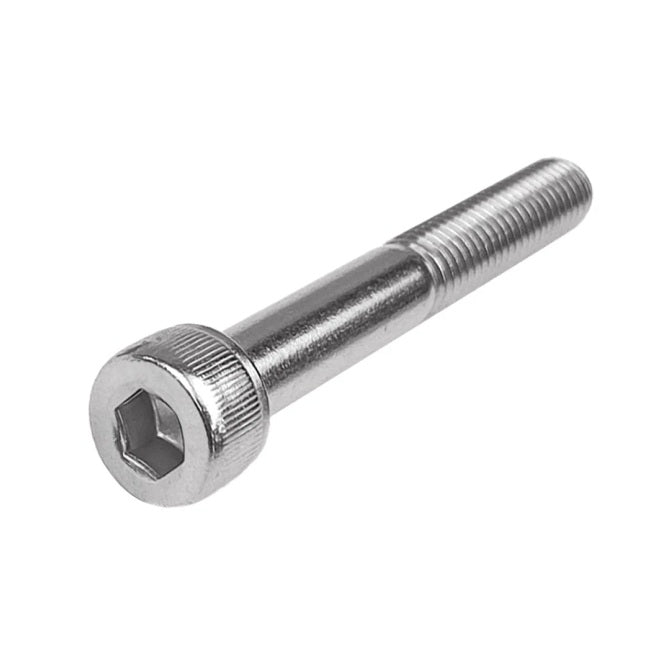

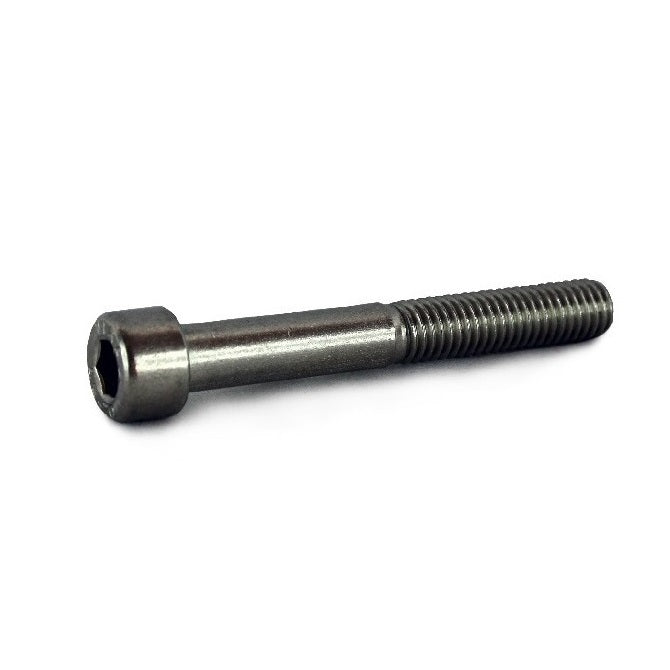

Cap Screws - M3 (3x0.5mm) x 60 mm
SC030M-060-C-SK-S4 (10 Pcs)

Name: 1048123 | SC030M-060-C-SK-S4 (10 Pcs) --- Cap Screws - M3 (3x0.5mm) x 60 mm
Brand: MBA
SKU: SC030M060CSKS4
Price: 11.95 AUD
Availability: InStock

MBA

Category: Screws - Cap - Socket - Stainless - 303-304

Additional resources:
PDF Screws Catalogue
Washers
Nuts

Price:

$11.95 AUD

per 10
Qty: 4 available now (40 pcs)
Order 50 or more (500 pcs) for $10.76 AUD per 10

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Mar 12, 2025

Quantity

Base Category: Screws - Cap

Top Level Category: Screws - Cap - Socket - Stainless - 303-304

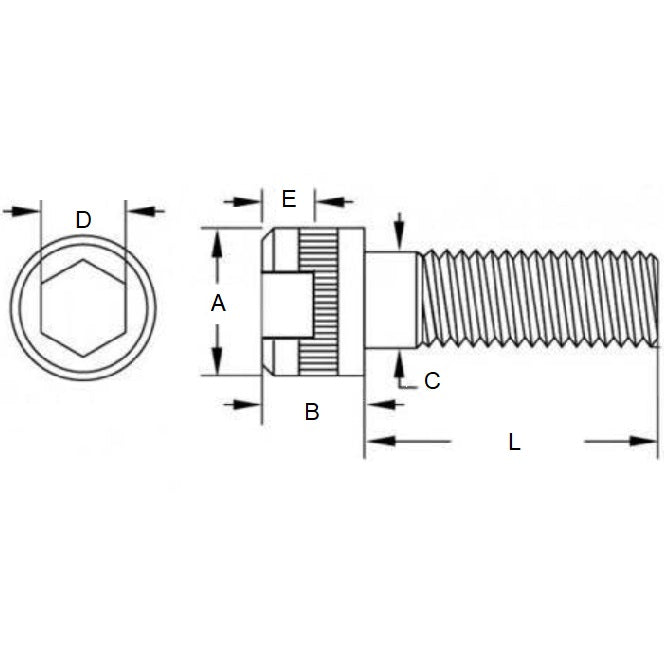

Product Details:

Thread Size (C): M3 (3x0.5mm)
304 Stainless Steel

Length (L): 60mm
Material: 304 Stainless
Head Length (B Max.): 3.0mm
Head Diameter (A Max.): 5.5mm
Drive Depth (E): 1.30mm
Shank Diameter (C): 2.86 - 3.00mm
Hex Key (D): 2.50mm
Pitch: 0.500mm
Threads Per Inch: 50.8TPI
Min thread Length: 18.0mm

Brand: MBA
Country of Origin: US

Alternatives: 538587, 91292A2

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
