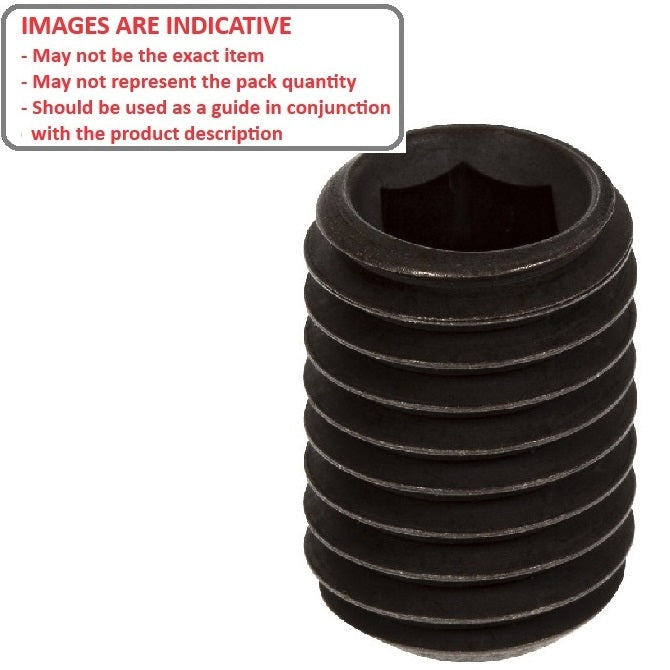

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

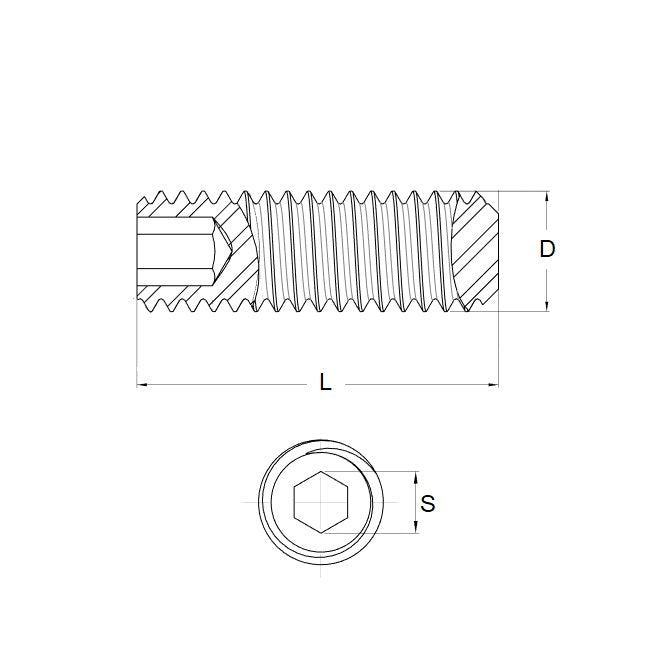

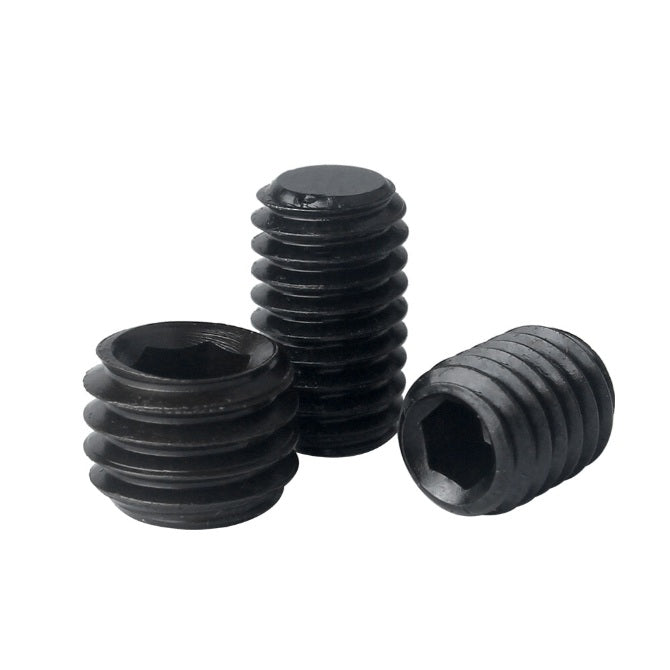

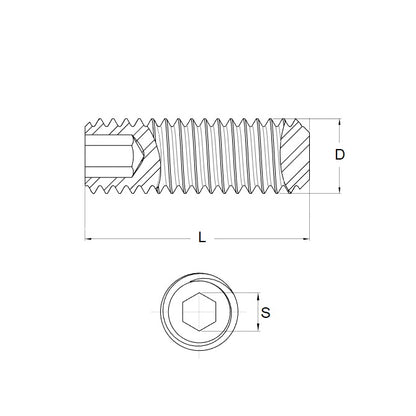

Socket - M3x0.5 (3mm Standard) x 3 mm Flat Tip
SS030M-0030-AS-FT (100 Pcs)

MBA

Additional resources:
Socket Set Screws Master PDF
Price:
$27.59 AUD
$27.59 AUD
per 100
Out Of Stock
Order 50 or more (5000 pcs) for $24.83 AUD per 100
Pre-Order now! Backorders for more than the stock quantity are expected before Feb 01, 2025

Base Category: Socket Set Screws - Flat Tip

Top Level Category: Socket Set Screws - Flat Tip - Fixed - DIN913

Product Details:

Thread Size: M3x0.5 (3mm Standard)
Hardened Carbon Steel
  • Thread Length (L): 3.0mm
  • Type: Flat Tip
  • Hex Key Size: 1.50
  • Pitch: 0.500mm
  • Threads Per Inch: 50.8TPI
  • Finish: Hardened, Black Oxide Coated

Brand: MBA
Country of Origin: DE

Alternatives: 832001, 93245A097

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
