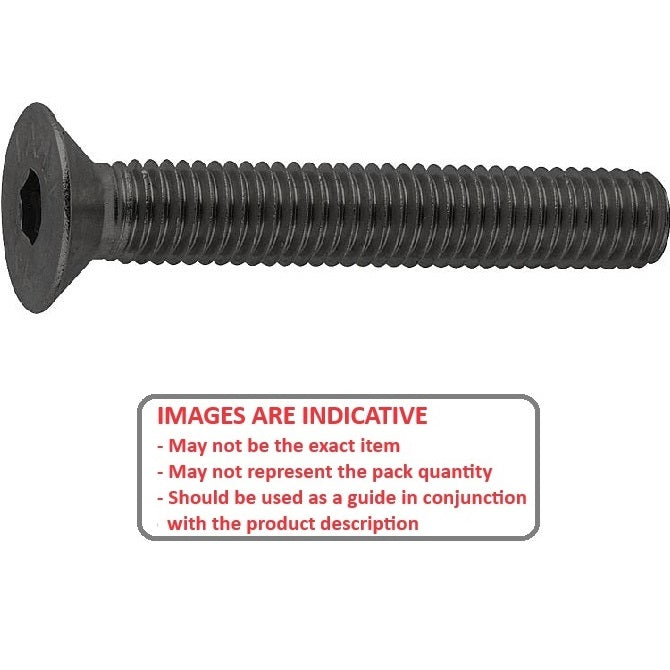

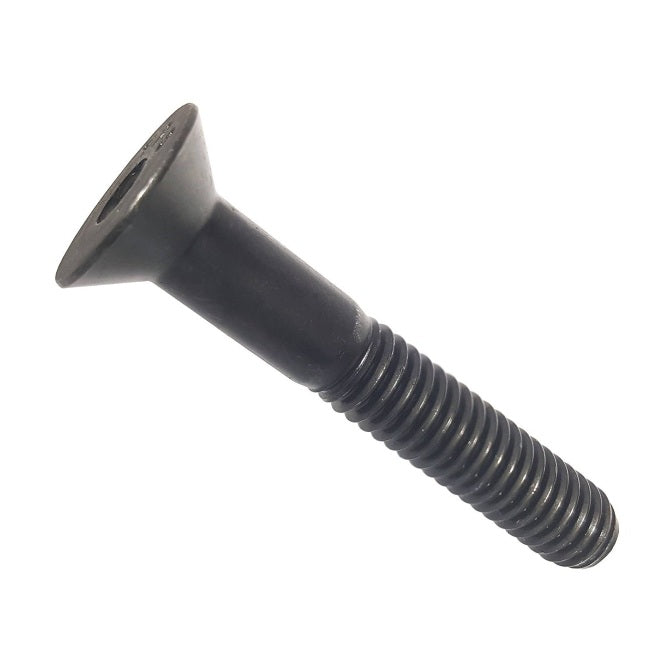

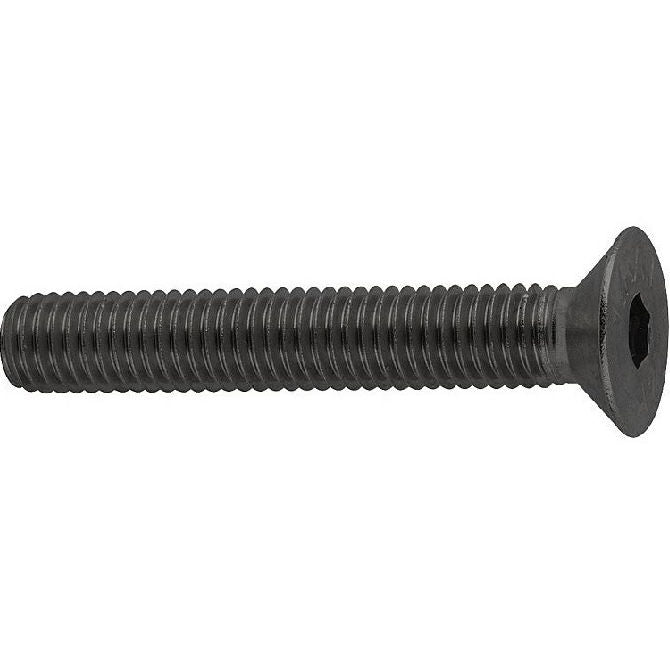

Screw - M24x3 x 140 mm
SK240M-140-SK-C (5 Pcs)
PDF Screws Catalogue
Washers
Nuts
Out Of Stock
Order 50 or more (250 pcs) for $129.07 AUD per 5
Base Category: Screws - Countersunk
Top Level Category: Screws - Countersunk - Socket - Steel - Standard

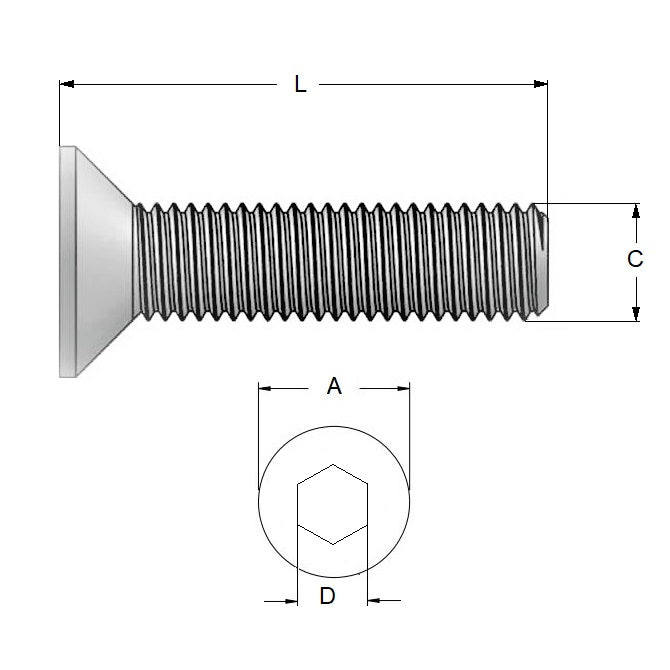

Product Details:Thread Size (C): M24x3
High Tensile Steel Black Oxide
- Overall Length (L): 140mm
+/-0.80
- Material: High Tensile Steel / Black Oxide
- Max Head Diameter: 39.0mm
- Max Head Height: 14.0mm
- Minimum Thread Length (l): 60mm
- Hex Key (s): 14.00mm
- Countersunk Angle: 90Deg
- Pitch: 3.000mm
- Threads Per Inch: 8.46TPI
- Standard: DIN7991
Brand: MBA
Country of Origin: TW
Alternatives: 564490
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
