SC020M-020-C-SK-C (100 Pcs)

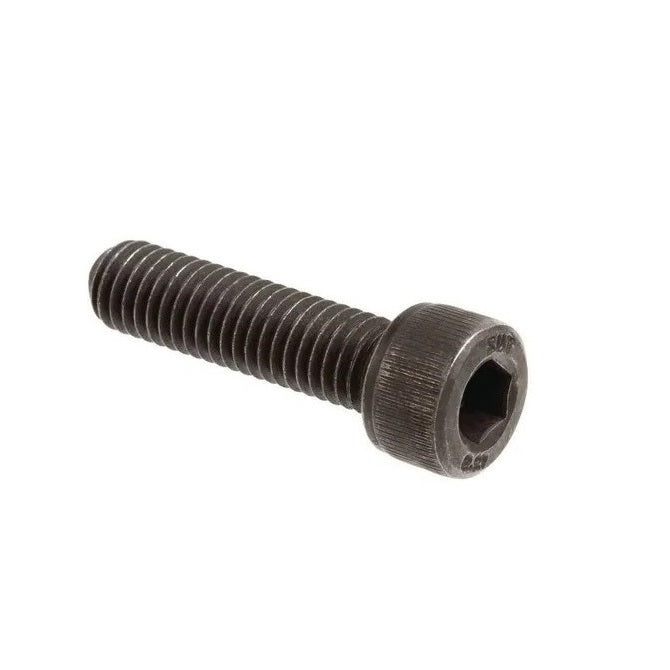

Socket Cap Screws - M2 - 2x0.4mm - 20 mm - High Tensile Steel / Black Oxide Alloy Steel Screw

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

Brighton Best

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$53.05 AUD
$53.05 AUD
per 100
Backorder
Order 50 or more pack (5000 pcs) for $47.75 AUD per 100
Backorder now! Backorders for more than the stock quantity are expected before Aug 15, 2025

Base Category: Screws - Socket Cap

Top Level Category: Screws - Socket Cap - Alloy Steel - Black Oxide

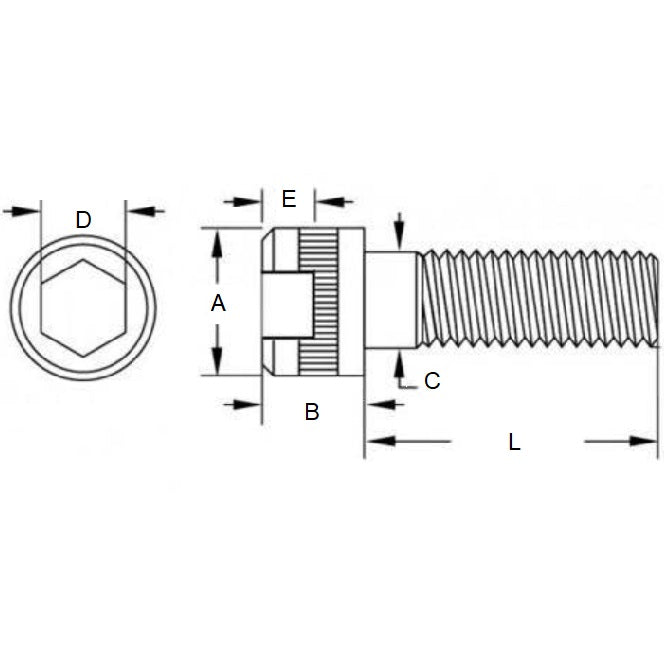

Product Details

Thread Size (C): M2 (2x0.4mm)

High Tensile Steel Black Oxide
  • Thread Length (L): 20mm
    (20mm is 0.787 in.)
  • Material: High Tensile Steel / Black Oxide
  • Head Length (B Max.): 2.0mm
  • Head Diameter (A Max.): 3.8mm
  • Drive Depth (E): 1.00mm
  • Shank Diameter (C): 1.86 - 2.00mm
  • Hex Key (D): 1.50mm
  • Pitch: 0.400mm
  • Threads Per Inch: 63.5TPI
  • Min thread Length: 16mm

Brand: Brighton Best
Country of Origin: TW

Product Compliance and Data

Similar to

  • Brighton Best 532035
  • ALTPART
  • 91290A049
  • MicroFast SCM2020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
