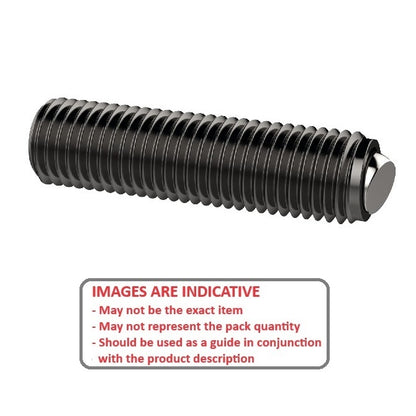

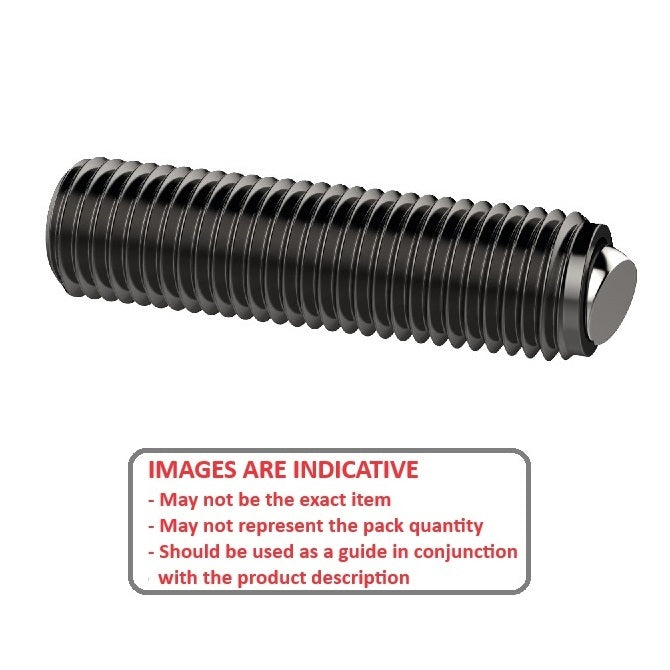

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

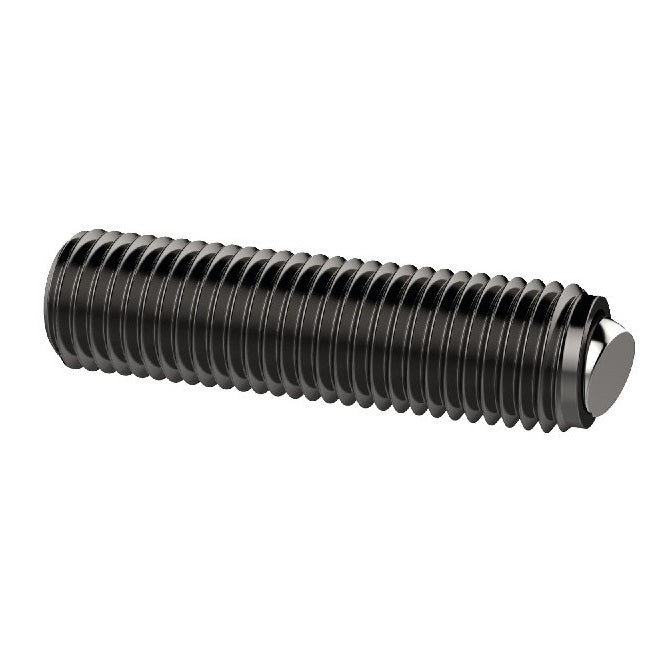

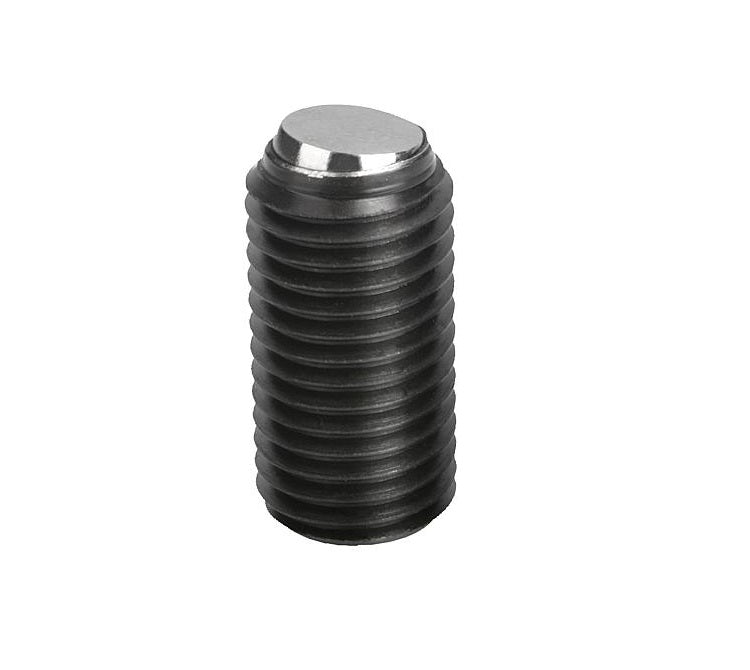

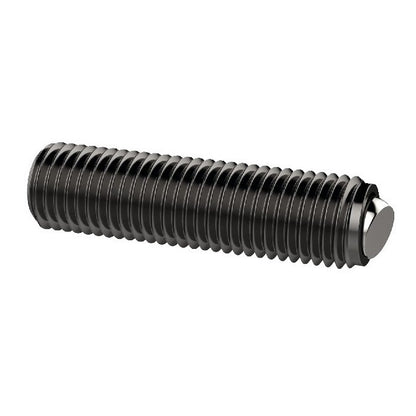

Socket - M16x2 (16mm Standard) x 50 mm Aligning Flat Tip
SS160M-0500-CS-FB

MBA

Additional resources:
Socket Set Screws Master PDF
Price:
$20.00 AUD
$20.00 AUD
Each
Qty: 1 available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Socket Set Screws - Flat Tip

Top Level Category: Socket Set Screws - Flat Tip - Aligning - Carbon Steel

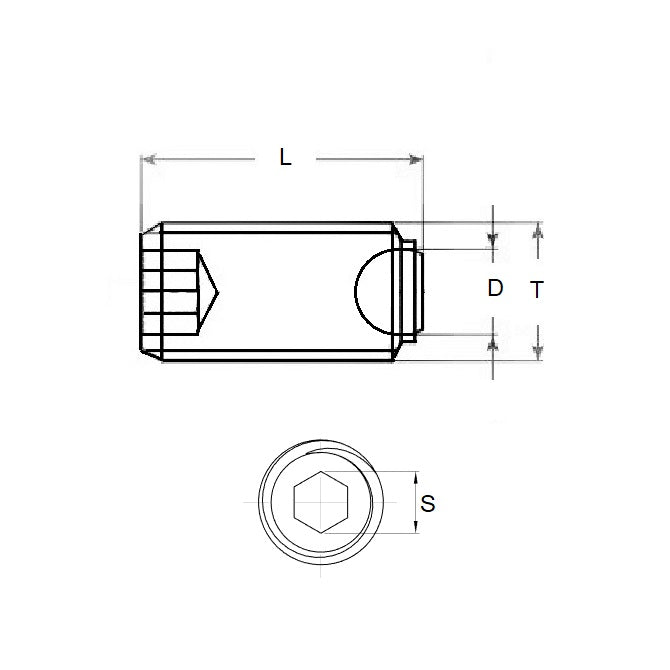

Product Details:

Thread Size: M16x2 (16mm Standard)
Carbon Steel
  • Thread Length (L): 50.0mm
  • Type: Aligning Flat Tip
  • Ball Diameter (D): 12.0
  • Hex Key Size: 8.0
  • Body Material: Carbon Steel
  • Ball Material: Carbon Steel HRC 55-60
  • Pitch: 2.0mm
  • Threads Per Inch: 12.7TPI
  • Finish: Black Oxide

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternatives: S705CFM1650

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
