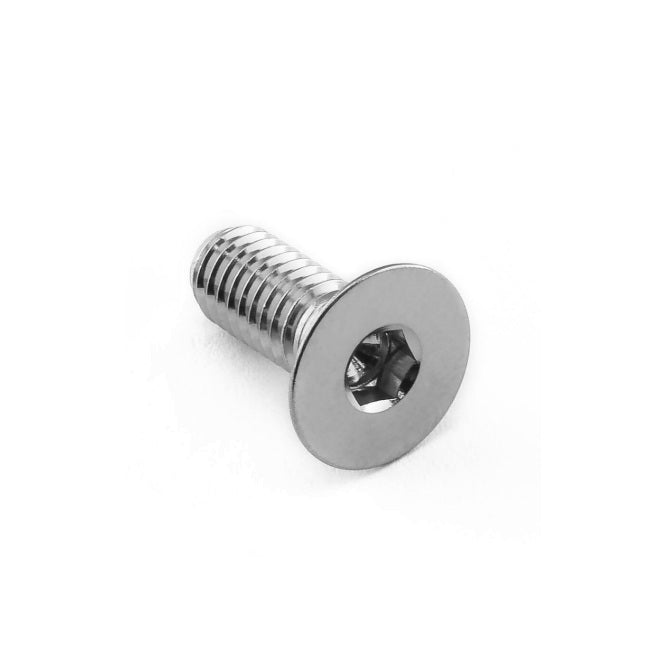

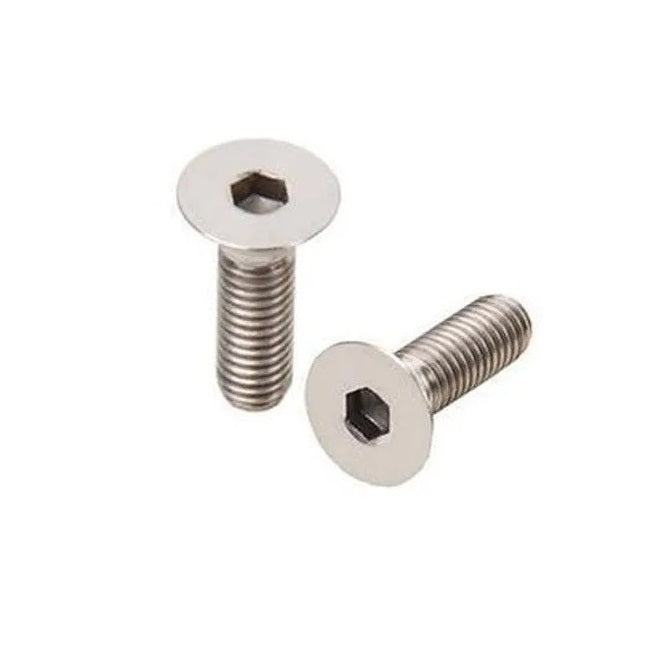

Screw - M10x1.5 x 25 mm
SK100M-025-SK-S4 (50 Pcs)
PDF Screws Catalogue
Washers
Nuts
Out Of Stock
Order 50 or more (2500 pcs) for $60.26 AUD per 50
Base Category: Screws - Countersunk
Top Level Category: Screws - Countersunk - Socket - 304 Stainless

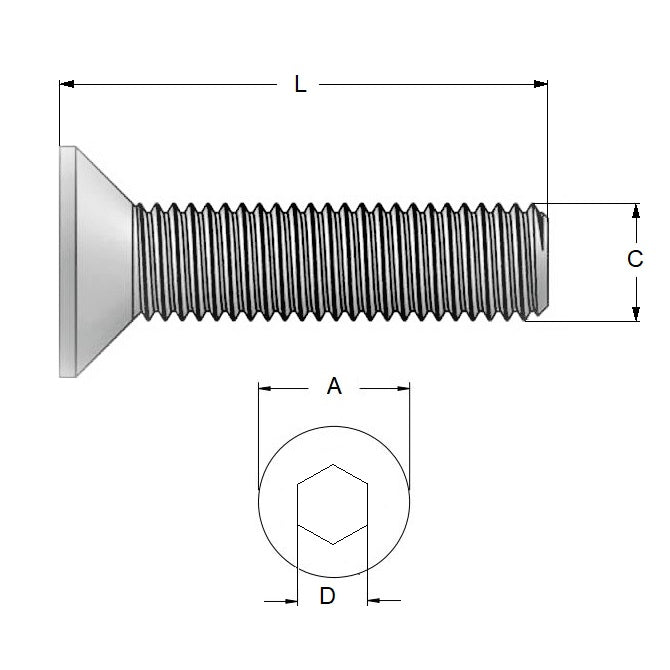

Product Details:Thread Size (C): M10x1.5
- Overall Length (L): 25mm
+/-0.25
- Material: 304 Stainless
- Head Diameter (A): 18.0mm
- Max Head Height: 5.5mm
- Minimum Thread Length (l): 19.5mm
- Hex Key (s): 6.00mm
- Countersunk Angle: 90Deg
- Pitch: 1.500mm
- Threads Per Inch: 16.93TPI
- Standard: DIN7991
Brand: MBA
Country of Origin: TW
Alternatives: 823150, 92125A336
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
