MLM-100M-100-S4PP-ECO (PK-4)

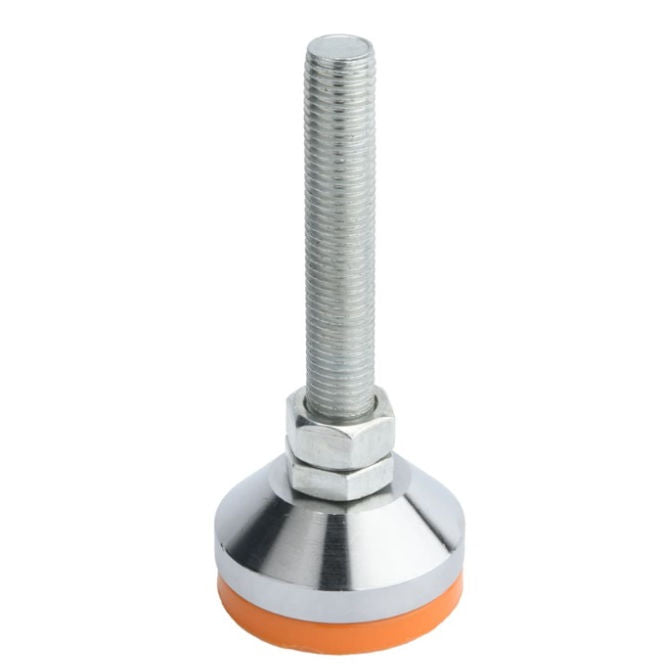

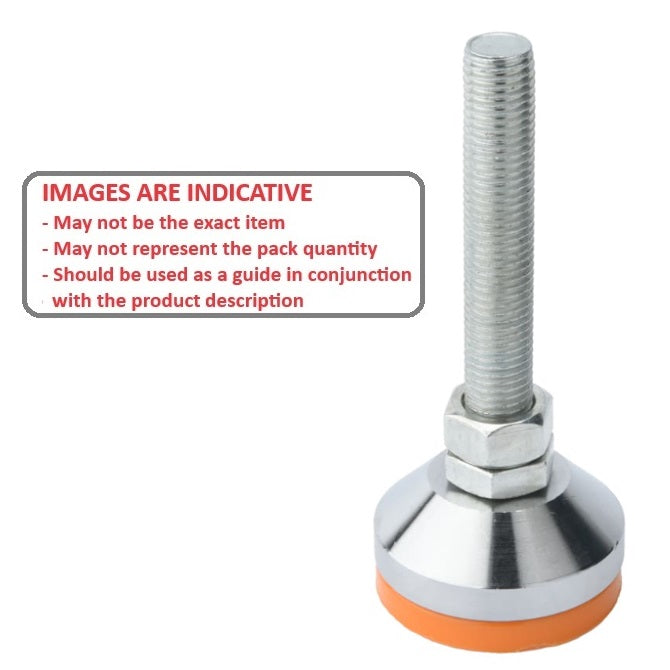

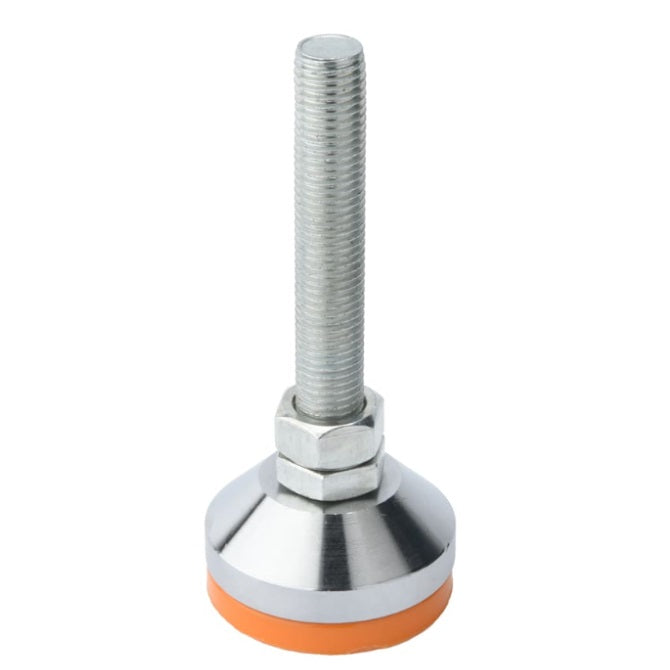

Levelling Studded Mounts - M10 - 10x1.5mm - 60x37 mm Economy - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
ECO
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more packs of 4 (200 pcs)
for $30.65 AUD per 4 pack
M10 (10x1.5mm) 60x37 mm Levelling Studded Mounts - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per pack of 4:
Base Category: Mounts - Levelling Studded
Top Level Category: Mounts - Levelling Studded - Economy - PVC Padded
Product Details

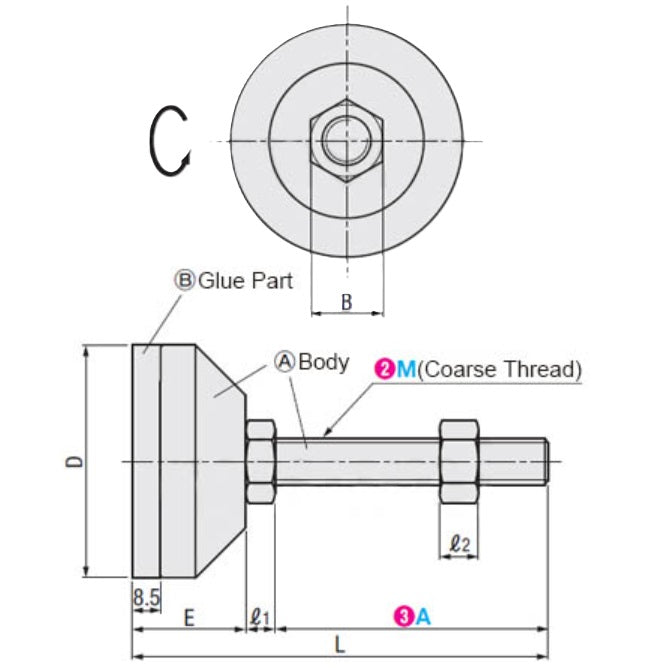

Thread Size (A): M10 (10x1.5mm)Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Thread Size (A): M10 (10x1.5mm)
- Base Diameter (D): 60.0mm
(60.0mm is 2.362 in.)
- Foot Height (C): 37.0mm
(37.0mm is 1.457 in.)
- Thread Length (F): 100.0mm
- Base Height (E): 28.5mm
- Overall Height: 137.0mm
- Load Rating: 49.00Kg
- Pad Thickness: 9mm
- Pad Material: Polyvinyl Chloride
- Hex Flats (B): 17mm
Brand: ECO
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® C-CPVC60-10-100
- CCPVC6010100
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MLM100M100S4PPECO, MLM100M100
