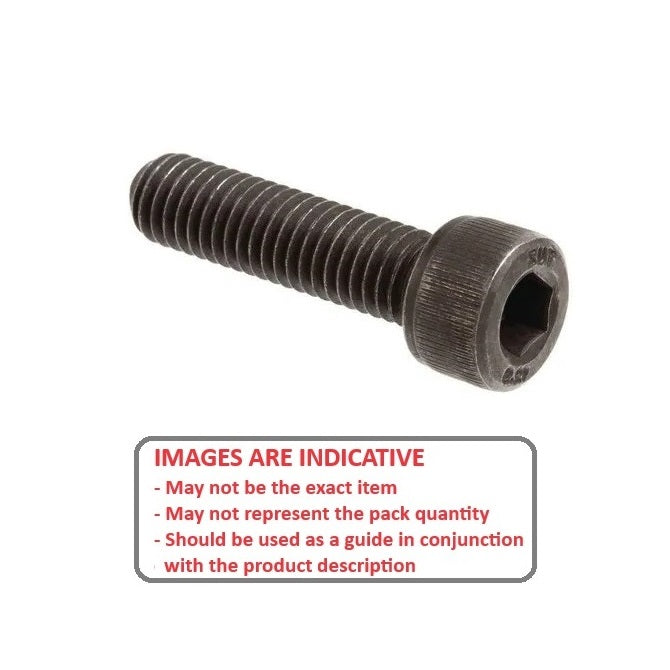

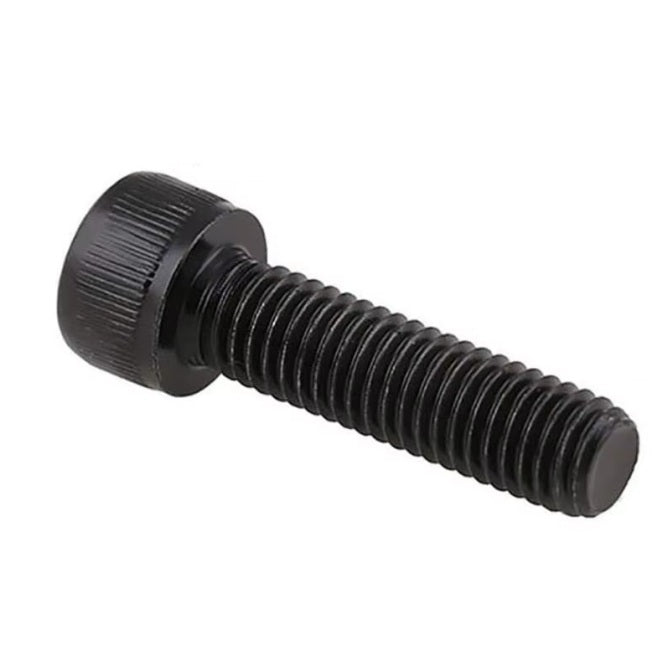

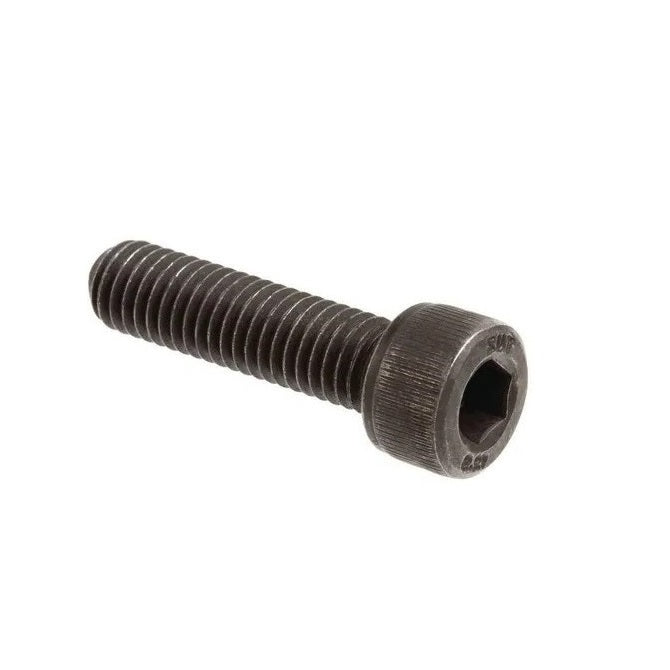

Screw - M1.6x0.35 x 20 mm
SC016M-020-C-SK-BO
PDF Screws Catalogue
Washers
Nuts
Out Of Stock
Order 50 or more for $5.27 AUD Each
Base Category: Screws - Cap
Top Level Category: Screws - Cap - Socket - Alloy Steel - Standard

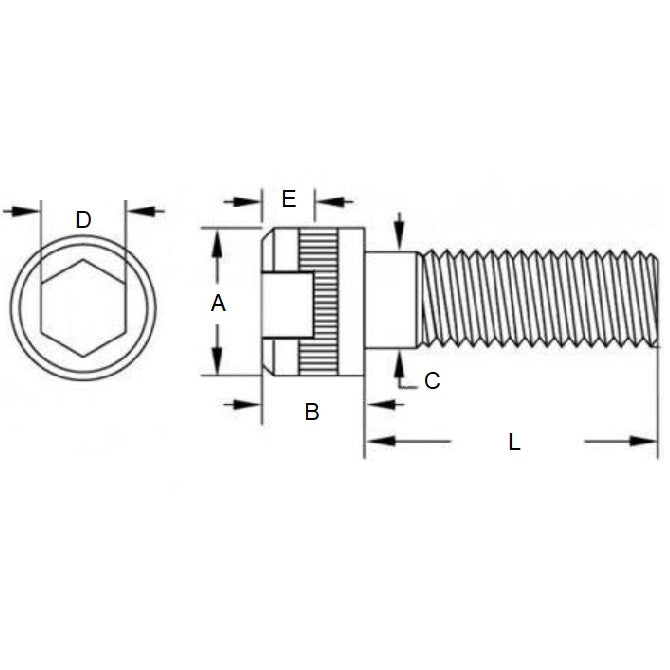

Product Details:Thread Size (C): M1.6x0.35
High Tensile Steel Black Oxide
- Length (L): 20mm
- Material: Black Oxide Carbon Steel 12.9
- Head Length (B Max.): 1.6mm
- Head Diameter (A Max.): 3mm
- Drive Depth (E): 0.7mm
- Shank Diameter (C): 1.46 - 1.60mm
- Hex Key (D): 1.50mm
- Pitch: 0.35mm
- Threads Per Inch: 72.570TPI
- Min thread Length: Fully Threadedmm
Brand: MBA
Country of Origin: US
Alternatives: CSH-ST-M1.6-20
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
