F-04-W300 (PK-10)

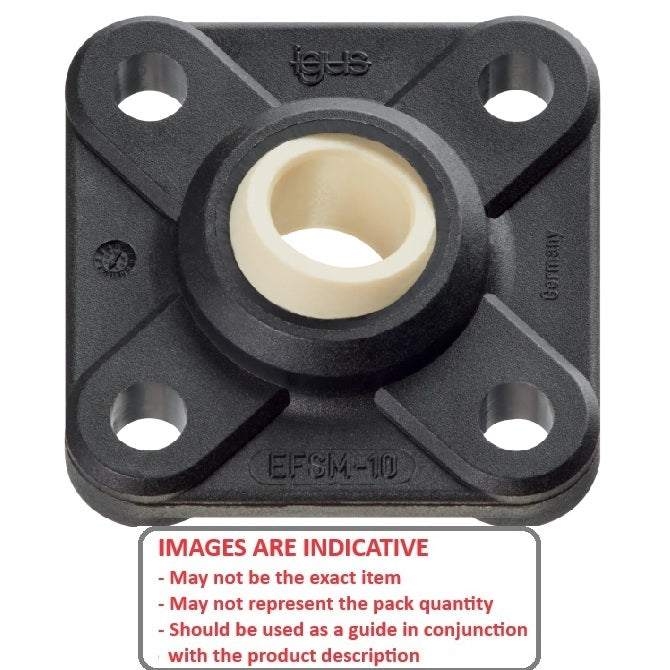

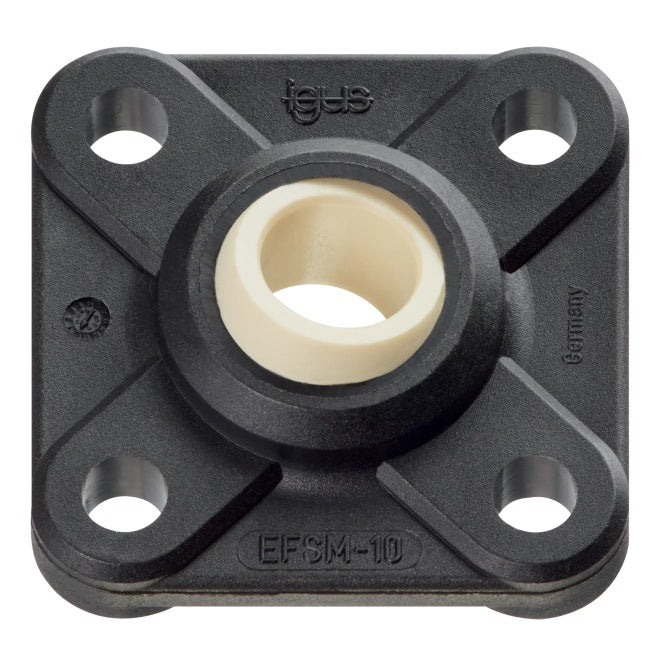

Bearing Housings - 4x25x8.5 mm Flanged - W300 Plastic Housing
Iglidur
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more packs of 10 (500 pcs)
for $189.45 AUD per 10 pack
Base Category: Housings - Bearing
Top Level Category: Housings - Bearing - Flanged - Square - W300

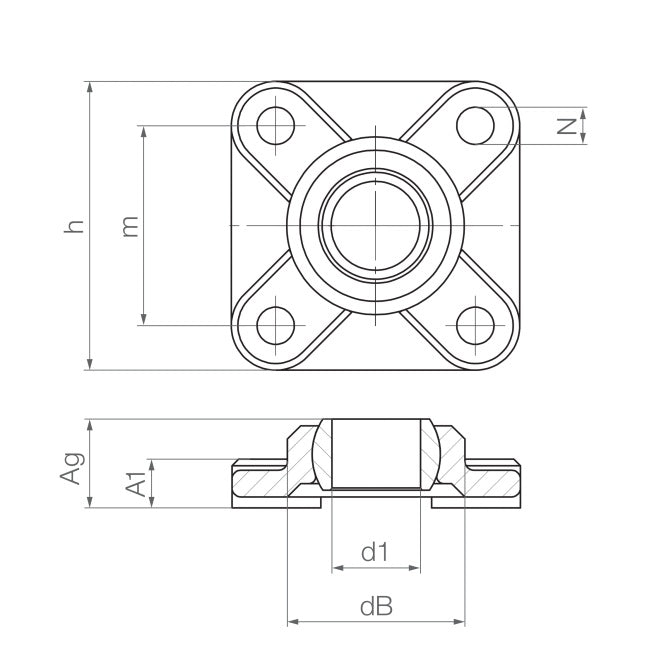

Product Details
Bore (d1): 4.00mm+ 0.020 / + 0.068
(4.00mm is 0.157 in.)
W300 Plastic
- Bore (d1): 4.00mm
+ 0.020 / + 0.068
(4.00mm is 0.157 in.)
- Base Length (L): 25.00mm
(25.00mm is 0.984 in.)
- Width - Assembled (Ag): 8.50mm
(8.50mm is 0.335 in.)
- Base Width (A1): 4.50mm
- Bolt Hole Centres (J): 17.00mm
- Overall Height (Ag): 8.5mm
- To Suit Bearing: Integral
- Bolt Hole Size (N): 3.2mm
Brand: Iglidur
Country of Origin: DE
Product Compliance and Data
Similar to
- Igus® EFSM-04
- EFSM04
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
F04
