G255B-120-D12-254-254-CI-G (Each)

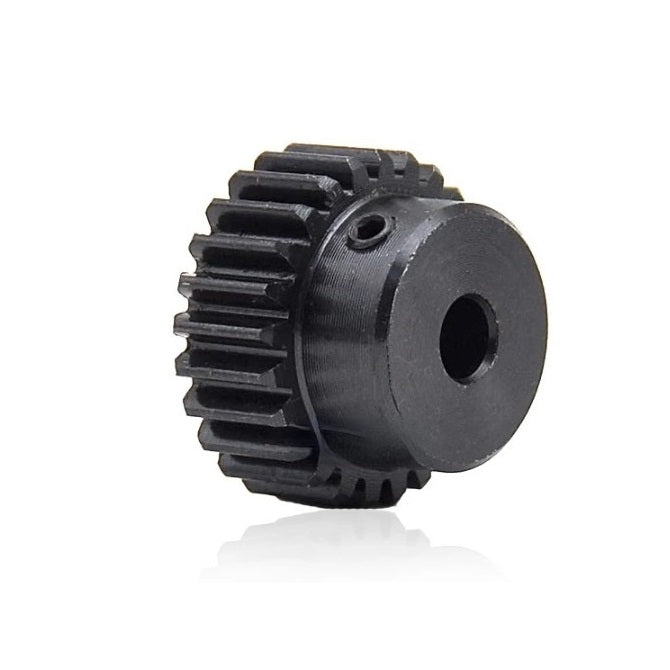

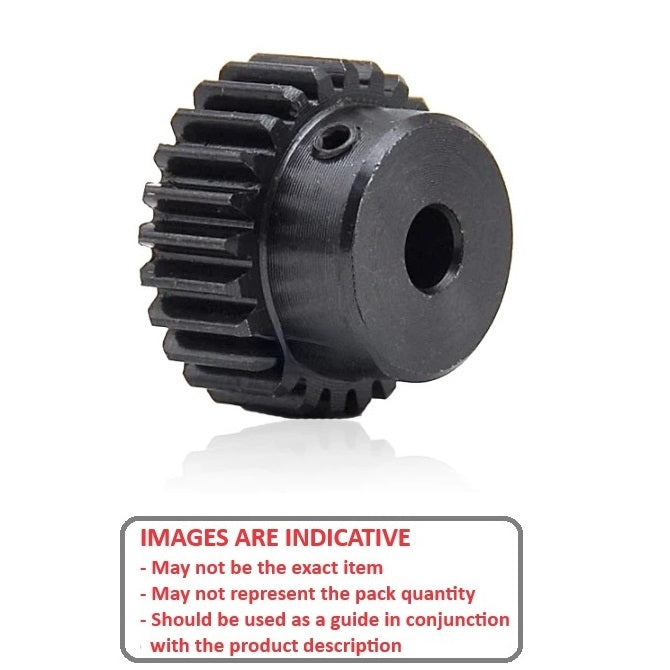

120 tooth - 255x25.4 mm - Cast Iron ASTM-CLASS 30 Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:12DP Gear Racks
Order 50 or more
for $0.00 AUD Each
120 tooth - 255x25.4 mm - Cast Iron ASTM-CLASS 30 - Sold per Each:
Top Level Category: Gears - Spur - Hubbed - 12DP Steel - 20 Deg PA
Product Details
Number of Teeth: 120Cast Iron ASTM-CLASS 30

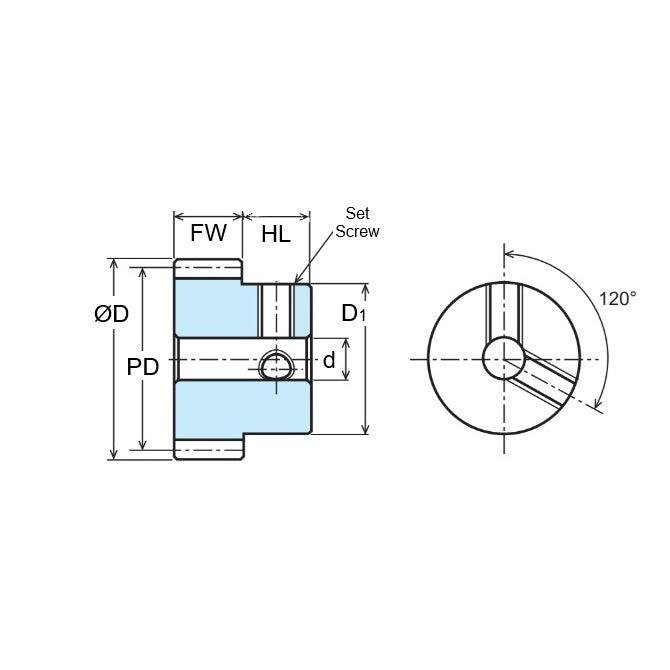

- Number of Teeth: 120
- Pitch Circle Diameter (PD): 255.0mm
(255.0mm is 10.039 in.)
- Bore (d): 25.4mm
(25.4mm is 1 in.)
- Face Width (FW): 25.4mm
- Type: Hubbed
- Hub Diameter (D1): 63.5mm
- Hub Projection (HL): 22.35mm
- Locking Method: None
- Quality: Commercial
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G255B120D12254254CIG, G255B120D12
