G050B-050-M1-100-160P-C-PD (Each)

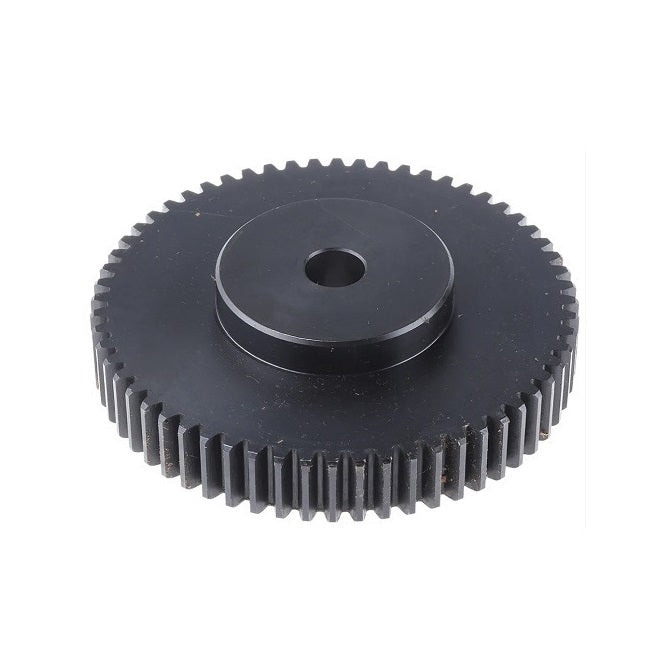

Spur Gears - 50 tooth - 50x16 mm Hubbed - Steel AISI 4135 Gear
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export50 tooth - 50x16 mm Spur Gears - Steel AISI 4135 - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubbed - Module 1 - Steel

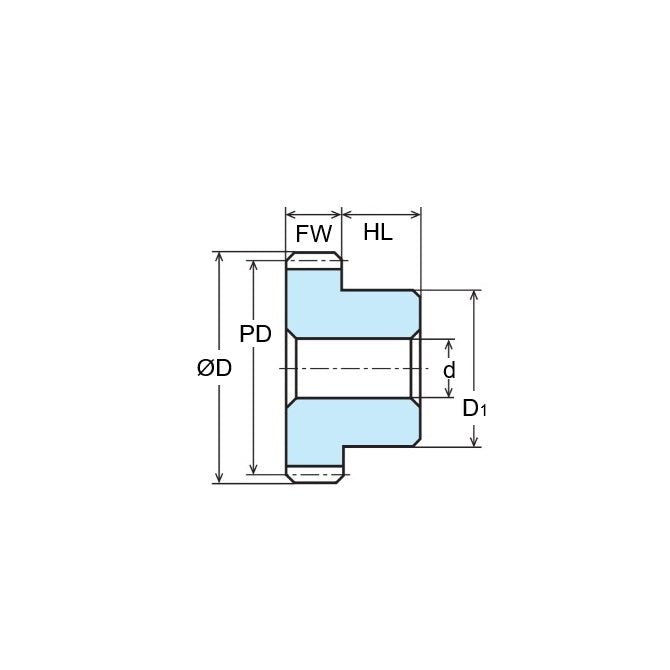

Product Details
Number of Teeth: 50Steel AISI 4135
- Number of Teeth: 50
- Pitch Circle Diameter (PD): 50.00mm
(50.00mm is 1.969 in.)
- Bore (d): 16.000mm
(16.000mm is 0.63 in.)
- Outside Diameter (OD): 52.000mm
- Face Width (FW): 10.000mm
- Type: Hubbed
- Hub Diameter (D1): 35.00
- Hub Projection (HL): 10.00
- Locking Method: None
- Quality: ISO 5 - Ground
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- G050B050M1100160CPD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G050B050M1100160PCPD, G050B050M1
