COL-02000-045-15-2C-S4 (Each)

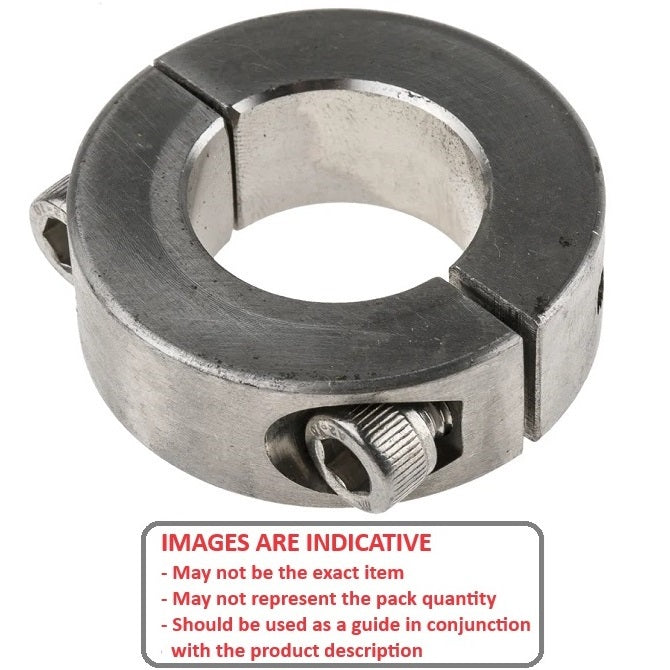

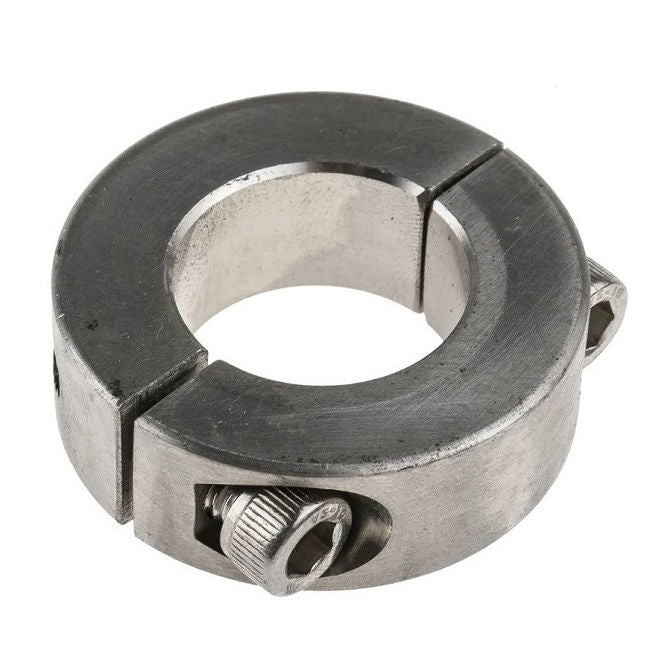

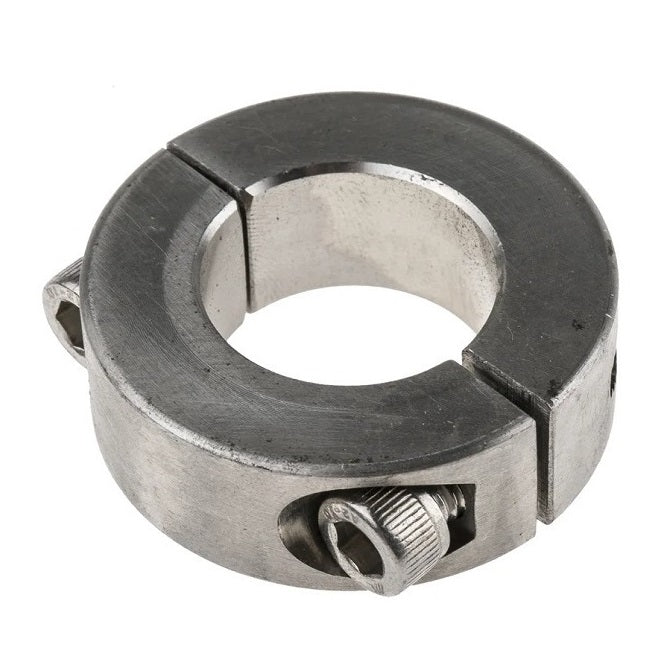

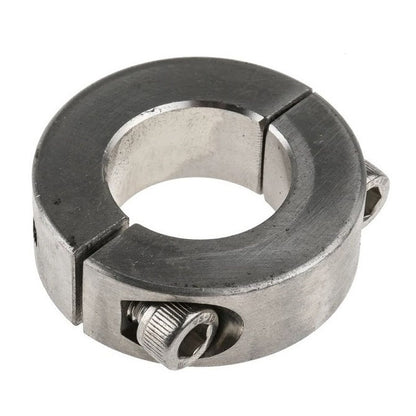

Shaft Collars - 20x45x15 mm Clamp Type - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Collar
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Shaft Collars PDF Catalogue
20x45x15 mm Shaft Collars - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per Each:
Base Category: Collars - Shaft
Top Level Category: Collars - Shaft - Clamp Type - Two Piece - 300 Grade Stainless Steel
Product Details

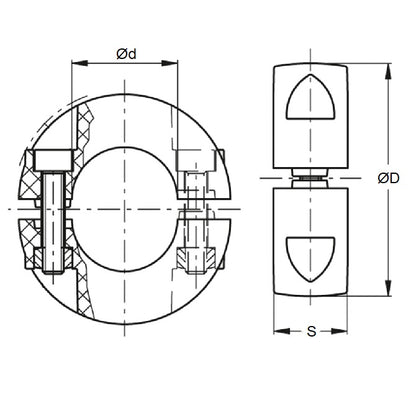

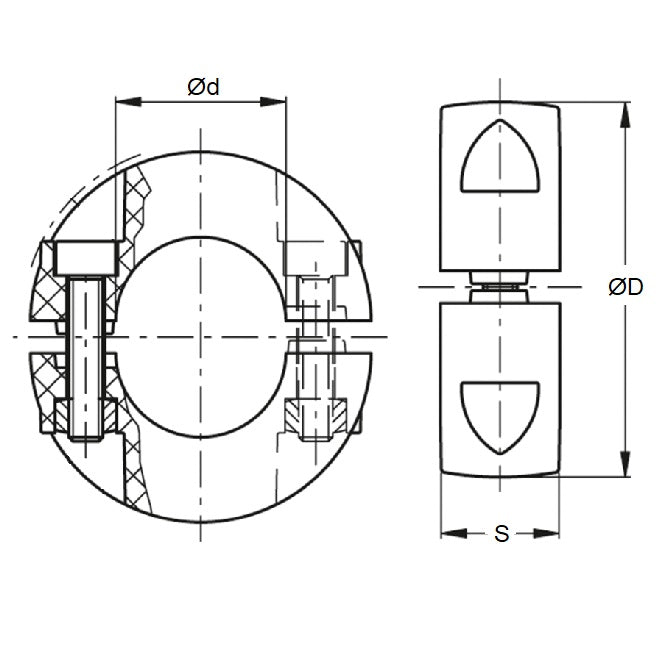

Suitable Shaft Size (d): 20.000mm+ 0.000 / - 0.021
(20.000mm is 0.787 in.)
Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Suitable Shaft Size (d): 20.000mm
+ 0.000 / - 0.021
(20.000mm is 0.787 in.)
- Outside Diameter (D): 45.00mm
(45.00mm is 1.772 in.)
- Overall Width (S): 15.0mm
(15.0mm is 0.591 in.)
- Screw Size: M6
- Screw Centres (E): 15.00
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- S25NSCM2S2015
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
COL02000045152CS4, COL02000045
