CCI-23700-C (Each)

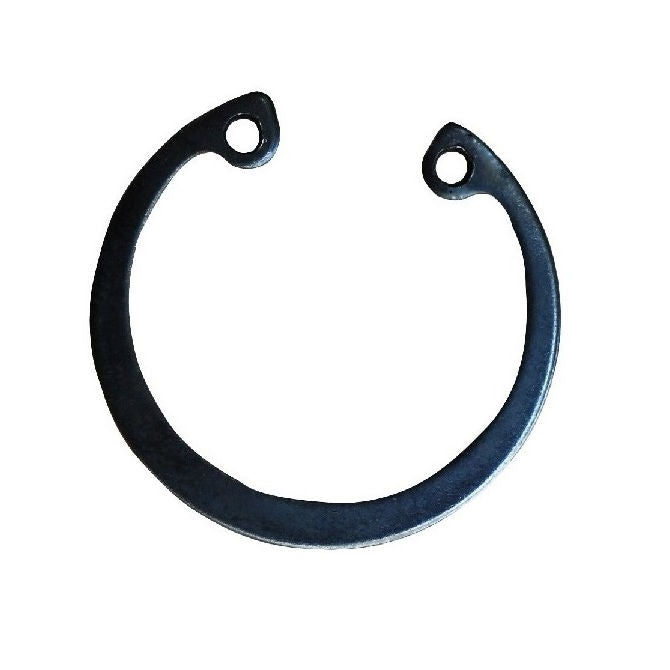

Internal Retaining Rings - 237x5x243 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
237x5x243 mm Internal Retaining Rings - Carbon Spring Steel phosphate and oil finish - Sold per Each:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

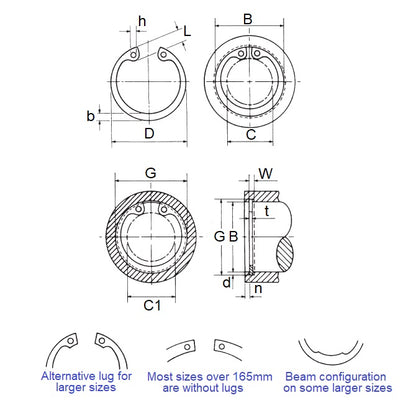

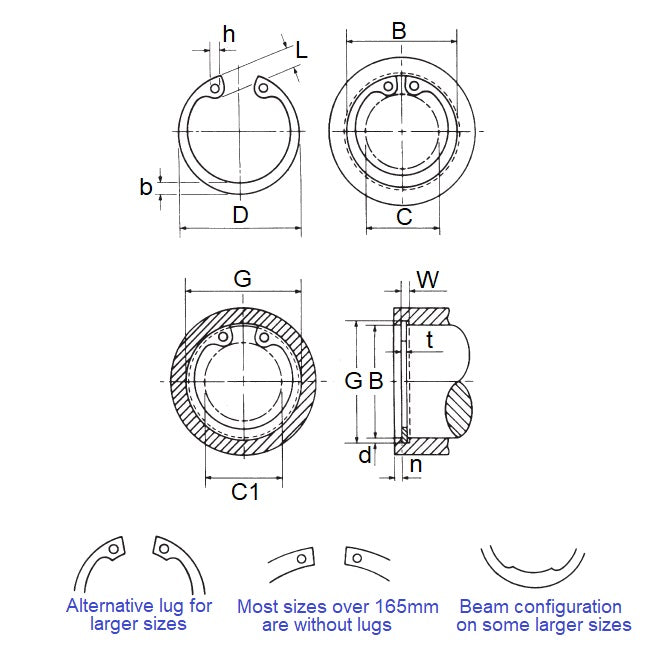

Product Details
Housing Bore (B): 237.00mm(237.00mm is 9.331 in.)
Carbon Spring Steel phosphate and oil finish
- Housing Bore (B): 237.00mm
(237.00mm is 9.331 in.)
- Clip Thickness (T): 5.00mm
+ 0.00 / - 0.12
(5.00mm is 0.197 in.)
- Groove Dia. (Dg): 243.00mm
+ 0.72 / - 0.00
(243.00mm is 9.567 in.)
- Approx. Loose Circlip OD (Dr): 247.00mm
+ 2.00 / - 0.81
- Groove Width (W): 5.15mm
+ 0.20 / - 0.00
- Standard: DIN472
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Ellison® 472-237
- Bossard® BN-822-237
- Waldes® D1300-237
- NoCor® DHO-237
- Rotor Clip® DHO-237
- Seeger® J-237
- Seeger® J237X5
- BN822237
- DHO237
- D13002370APP
- D1300-2370APP
- 472237
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI23700C, CCI23700
