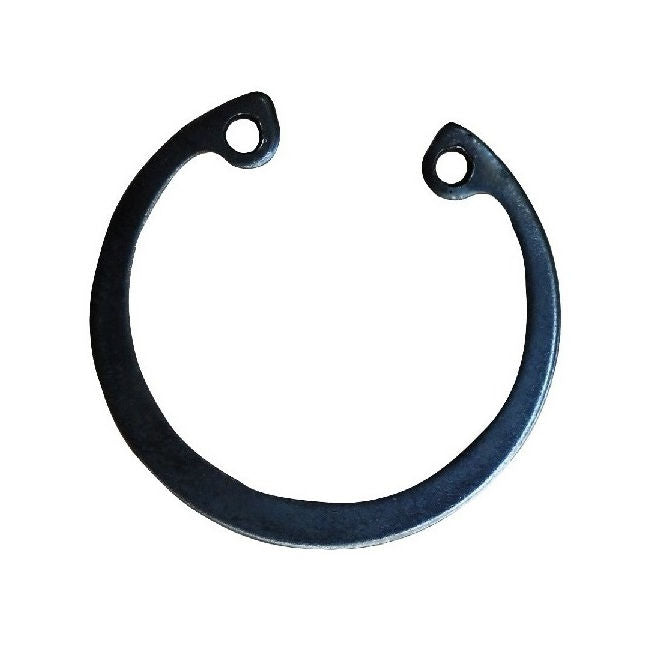

CCI-17700-C (Each)
Internal Retaining Rings - 177x4x182 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
6-31/32x5/32 inch Circlip - 177x4x182 mm Internal Retaining Rings - Carbon Spring Steel phosphate and oil finish - Sold per Each:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

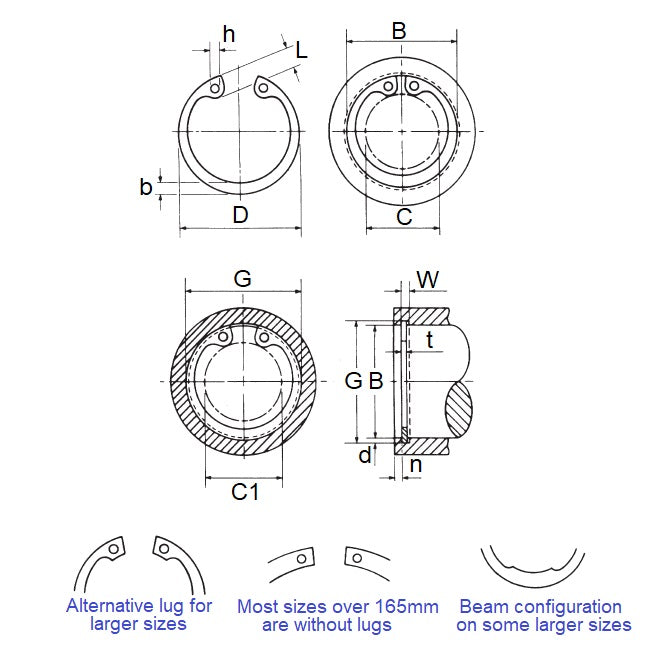

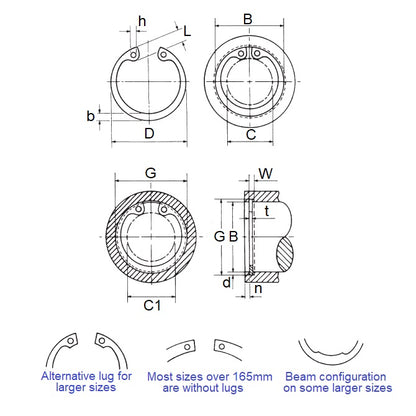

Product Details
Housing Bore (B): 177.00mm(177.00mm is 6.969 in.)
Carbon Spring Steel phosphate and oil finish
- Housing Bore (B): 177.00mm
(177.00mm is 6.969 in.)
- Clip Thickness (T): 4.00mm
+ 0.00 / - 0.10
(4.00mm is 0.157 in.)
- Groove Dia. (Dg): 182.00mm
+ 0.72 / - 0.00
(182.00mm is 7.165 in.)
- Approx. Loose Circlip OD (Dr): 187.50mm
+ 1.70 / - 0.72
- Groove Width (W): 4.15mm
+ 0.20 / - 0.00
- Min. Extension (n): 7.50
- Standard: DIN472
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Ellison® 472-177
- Bossard® BN-822-177
- Waldes® D1300-177
- NoCor® DHO-177
- Rotor Clip® DHO-177
- Seeger® J-177
- Seeger® J177X4
- BN822177
- D1300-1770APP
- D13001770APP
- DHO177
- 472177
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI17700C, CCI17700
