CCI-05200-C-V (62 Pcs)

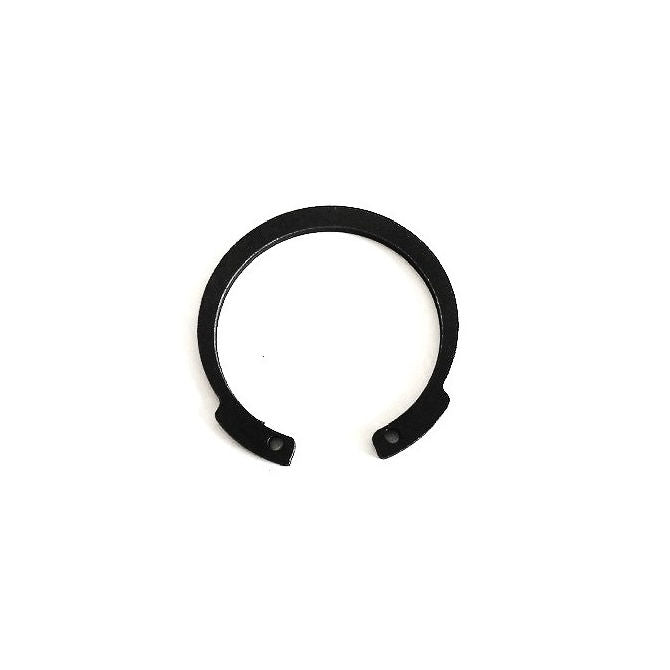

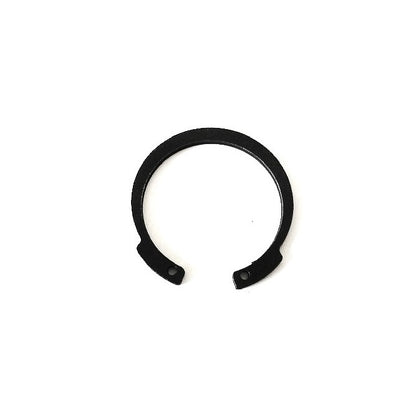

Internal Retaining Rings - 52x2x55 mm - Spring Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$372.86 AUD
$372.86 AUD
per 62
Backorder
Order 50 or more (3100 pcs) for $335.57 AUD per 62
Backorder now! Backorders for more than the stock quantity are expected before Sep 07, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Inverted

Product Details:

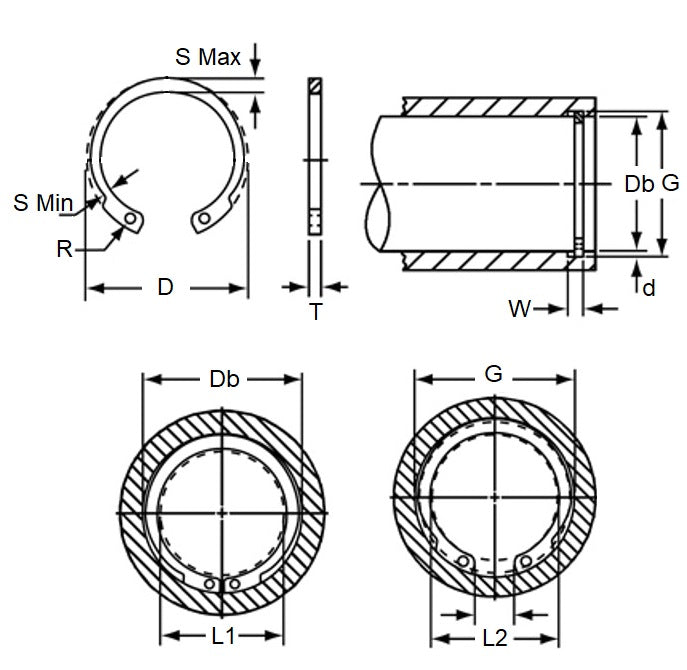

Housing Bore (B): 52.00mm
(52.00mm is 2.047 in.)

Spring Steel
  • Clip Thickness (T): 2.00mm
    + 0.30 / - 0.00
    (2.00mm is 0.079 in.)
  • Groove Dia. (Dg): 55.00mm
    + 0.00 / - 0.07
    (55.00mm is 2.165 in.)
  • Approx. Loose Circlip OD (Dr): 56.20mm
    + 1.10 / - 0.46
  • Radial Wall Max (S): 5.0 - 5.2
  • Groove Width (W): 2.15mm
  • Tool: PRS-I018

Brand: MBA
Country of Origin: US

Alternative Parts Include: BN830052, BN830-052, MDHOI052, MDHOI-052, M1308-052, M1308052, JV052, INTV-052, INTV052, JV-052, Bossard, Ellison, Seeger, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
