CCI-04800-C-V (PK-500)

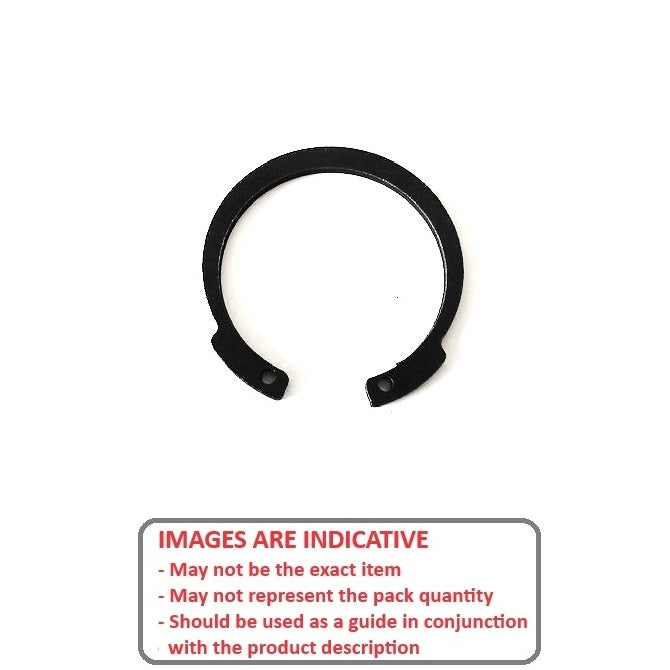

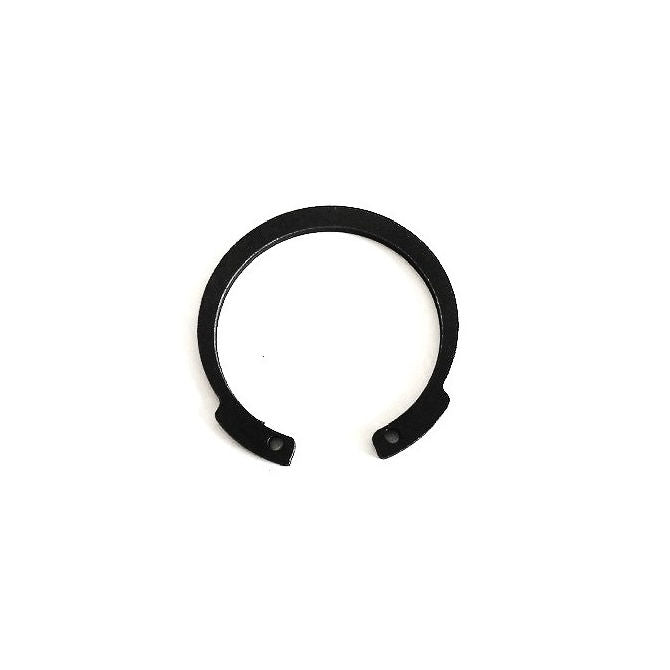

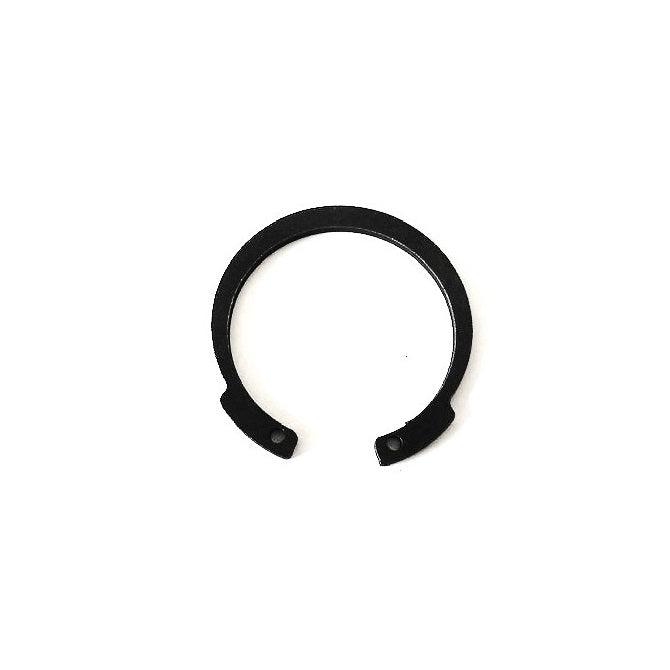

Internal Retaining Rings - 48x1.75x50.5 mm Circlips - Carbon Spring Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 500 (25000 pcs)
for $1,019.99 AUD per 500 pack
48x1.75x50.5 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 500:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Inverted

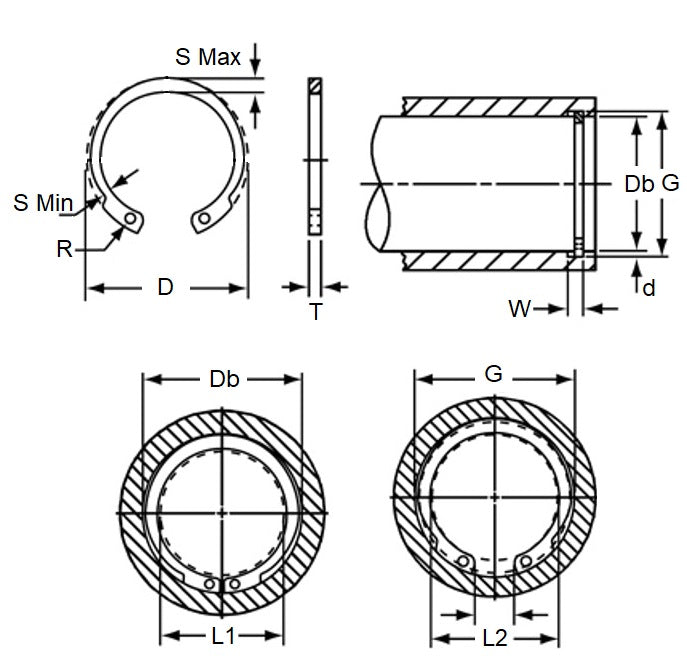

Product Details
Housing Bore (B): 48.00mm(48.00mm is 1.89 in.)
Carbon Spring Steel
- Housing Bore (B): 48.00mm
(48.00mm is 1.89 in.)
- Clip Thickness (T): 1.75mm
+ 0.00 / - 0.06
(1.75mm is 0.069 in.)
- Groove Dia. (Dg): 50.50mm
+ 0.30 / - 0.00
(50.50mm is 1.988 in.)
- Approx. Loose Circlip OD (Dr): 51.50mm
+ 1.10 / - 0.46
- Radial Wall (S) Approx.: 4.5 - 4.7
- Groove Width (W): 1.85mm
- Tool: PRS-I018
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Bossard® BN830-048
- Huyett® DHOI-048
- Ellison® INTV-048
- Seeger® JV-048
- NoCor® MDHOI-048
- BN830048
- INTV048
- M1308-048
- M1308048
- MDHOI048
- JV048
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI04800CV, CCI04800
