NSO-0200-0270-0250-FC

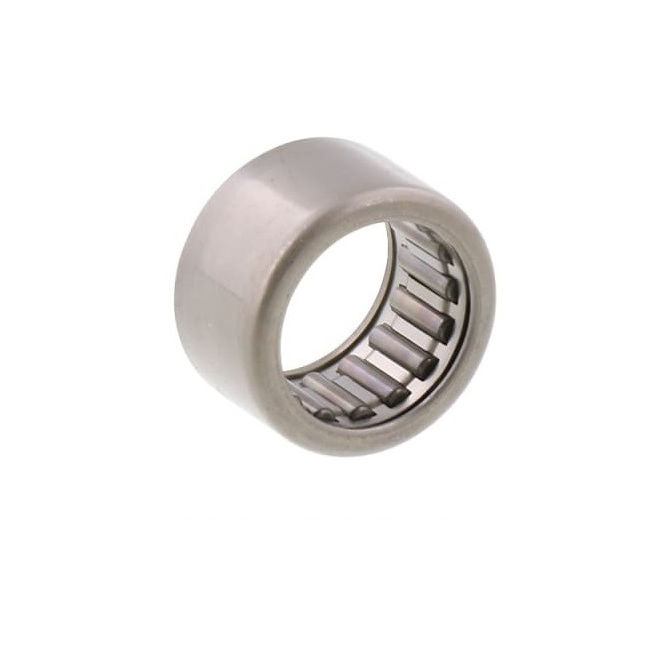

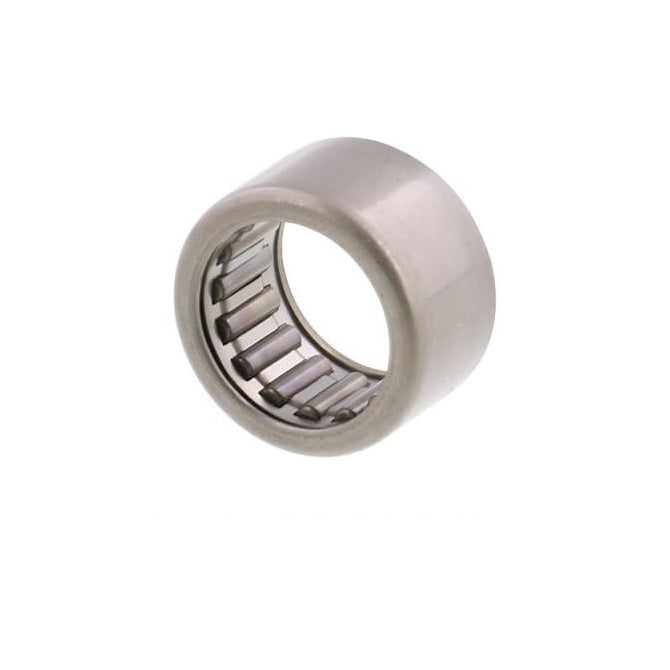

Needle Roller without Inner Ring Bearings - 20x27x25 mm / 3060 Kgf Shell Type - Chrome Steel Bearing

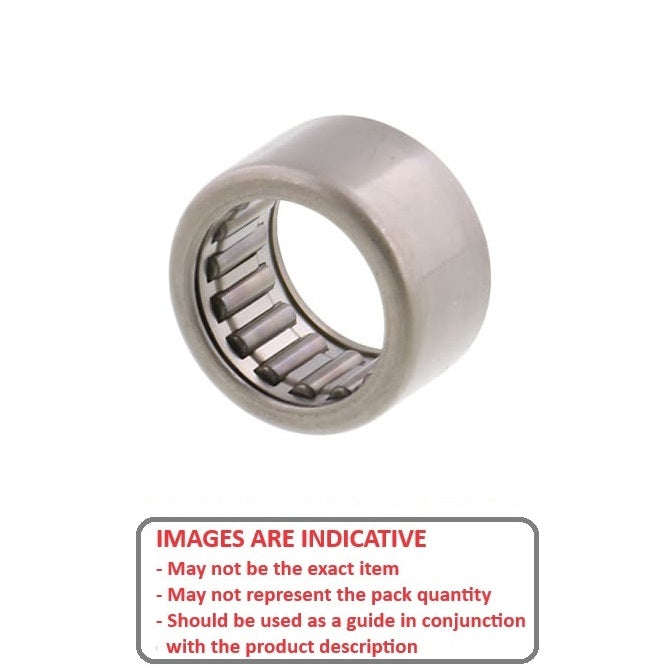

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Shafting
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Bearings - Needle Roller without Inner Ring

Top Level Category: Bearings - Needle Roller without Inner Ring - Shell Type - Open Ends

Product Details

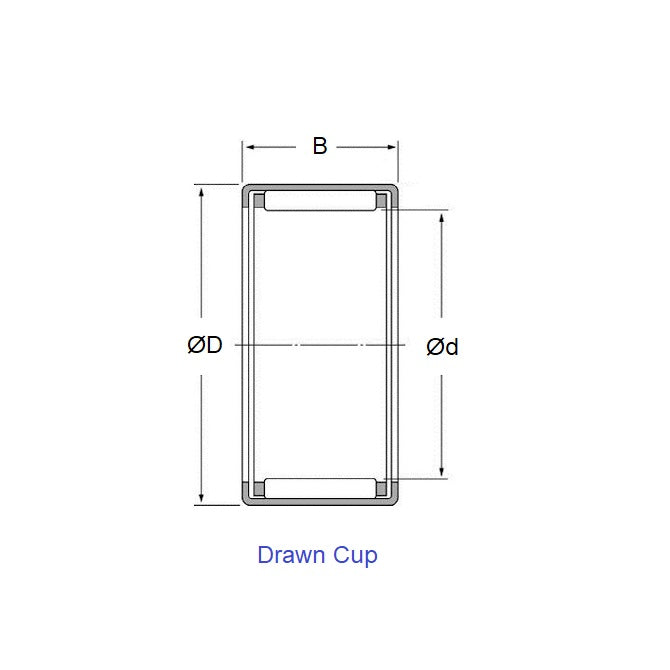

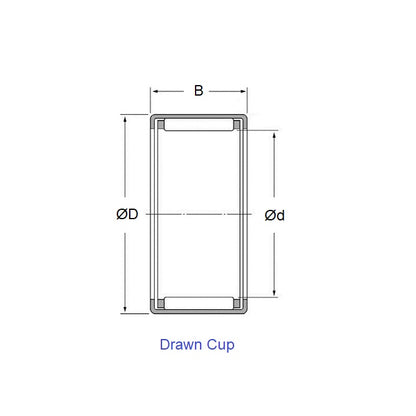

Shaft Diameter (d): 20.000mm
(20.000mm is 0.787 in.)

Chrome Steel
  • Shaft Diameter (d): 20.000mm
    (20.000mm is 0.787 in.)
  • OD (D): 27.000mm
    (27.000mm is 1.063 in.)
  • Width (B): 25.000mm
    (25.000mm is 0.984 in.)
  • Basic Dynamic Load Rating: 3060Kgf
  • Basic Static Load Rating: 5940Kgf
  • Cage Type: None
  • Seals: None
  • Type: Open

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Nachi YT-2025
  • IKO YTL2025
  • YT2025

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
