NSO-0120-0180-0160-ST-2RS

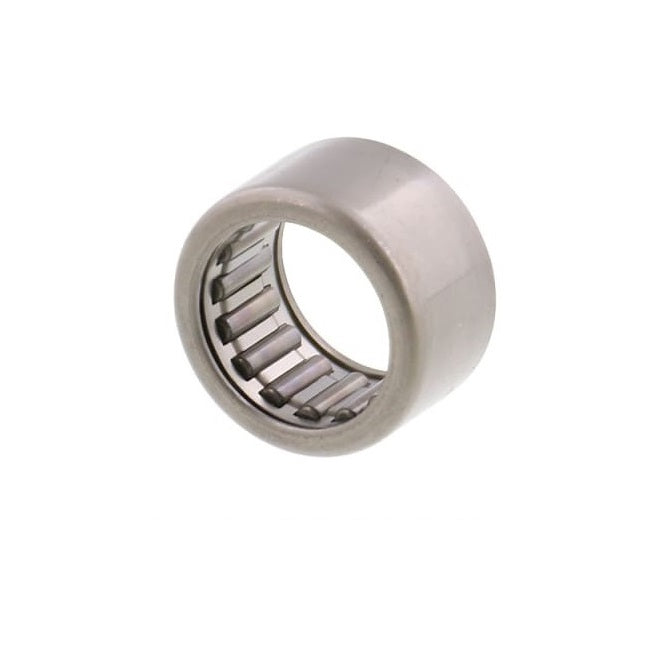

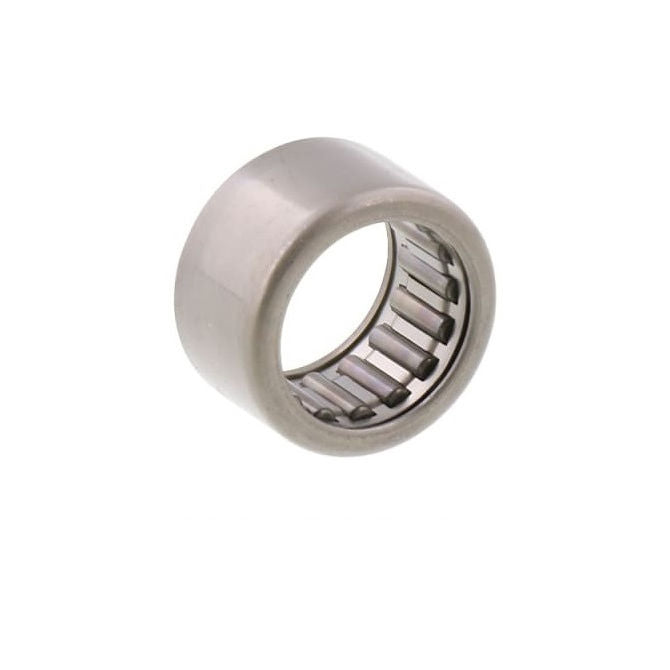

Needle Roller without Inner Ring Bearings - 12x18x16 mm / 655 Kgf

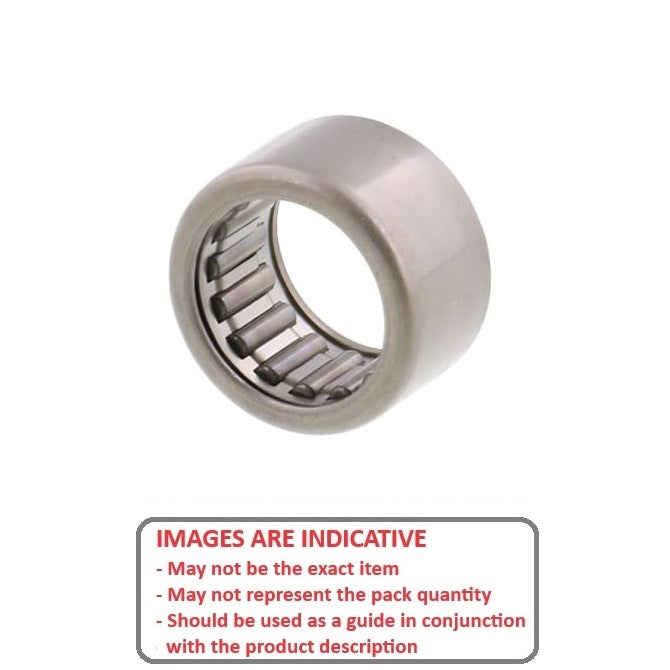

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Shafting
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Bearings - Needle Roller without Inner Ring

Top Level Category: Bearings - Needle Roller without Inner Ring - Shell Type - Open Ends

Product Details:

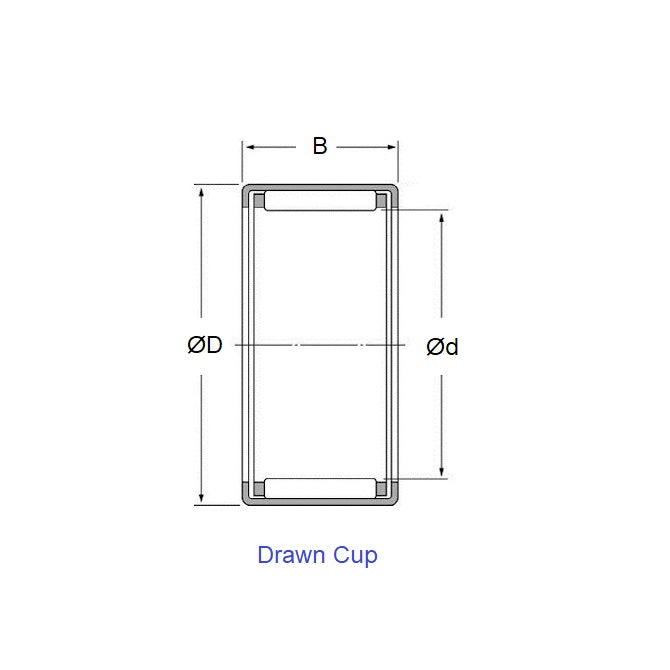

Shaft Diameter (d): 12.000mm
(12.000mm is 0.472 in.)
  • OD (D): 18.000mm
    (18.000mm is 0.709 in.)
  • Width (B): 16.000mm
    (16.000mm is 0.63 in.)
  • Basic Dynamic Load Rating: 655Kgf
  • Basic Static Load Rating: 780Kgf
  • Limiting Speed Grease: 12000RPM
  • Cage Type: Steel
  • Seals: Nitrile 2 sides
  • Type: Open

Brand: MBA
Country of Origin: JP

Alternative Parts Include: HK1216.2RS, FAG

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
