W0665-D-099-010-BB-C (Each)

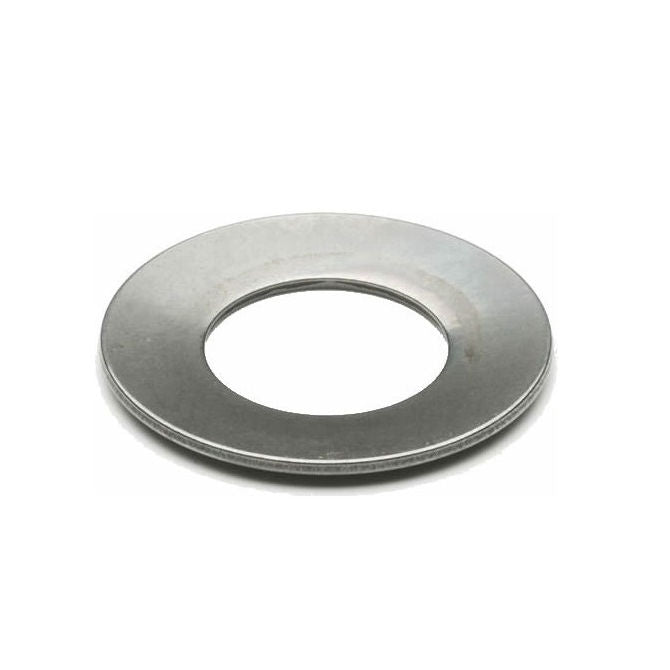

Disc Spring Washers - 99x65.5x1 mm Ball Bearing Type - Carbon Steel Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Couldn't load pickup availability
99x65.5x1 mm Disc Spring Washers - Carbon Steel - Sold per Each:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Ball Bearing Type
Product Details

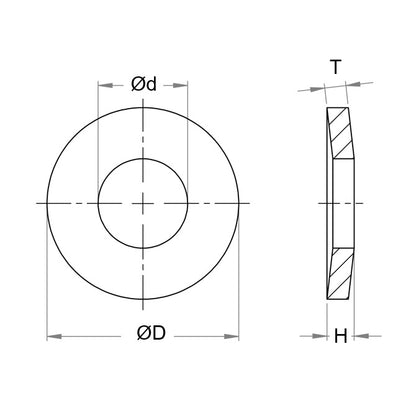

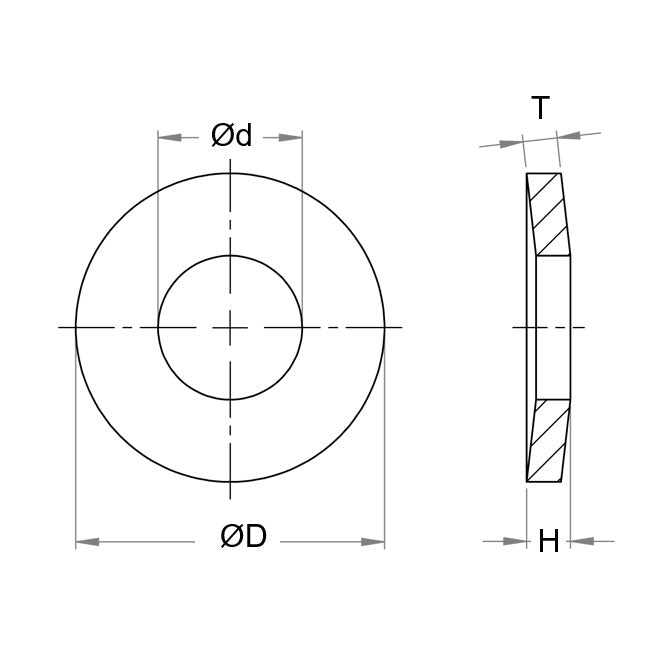

Nominal Outside Diameter (A): 99.00mm(99.00mm is 3.898 in.)
Carbon Steel
- Nominal Outside Diameter (A): 99.00mm
(99.00mm is 3.898 in.)
- Nominal Inside Diameter (B): 65.50mm
+ 0.50 / - 0.00
(65.50mm is 2.579 in.)
- Thickness (C): 1.00mm
(1.00mm is 0.039 in.)
- Suits Bearing Size: 6309
- Free Height (E): 2.60mm
- Inside Height (D): 1.60mm
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- Belleville Springs BP-996510
- ExaktKey® BP-996510
- NoCor® BP-996510
- Springmaster BP-996510
- XOSpring® BP-996510
- BP996510
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0665D099010BBC, W0665D099
