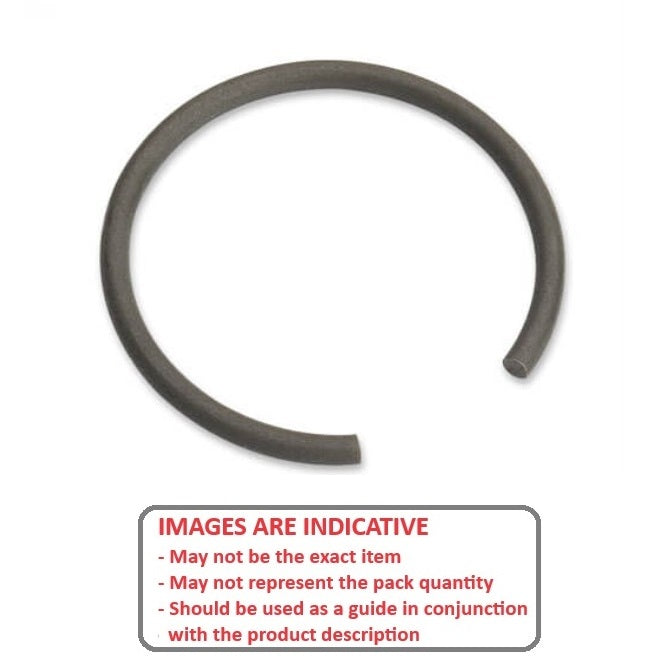

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

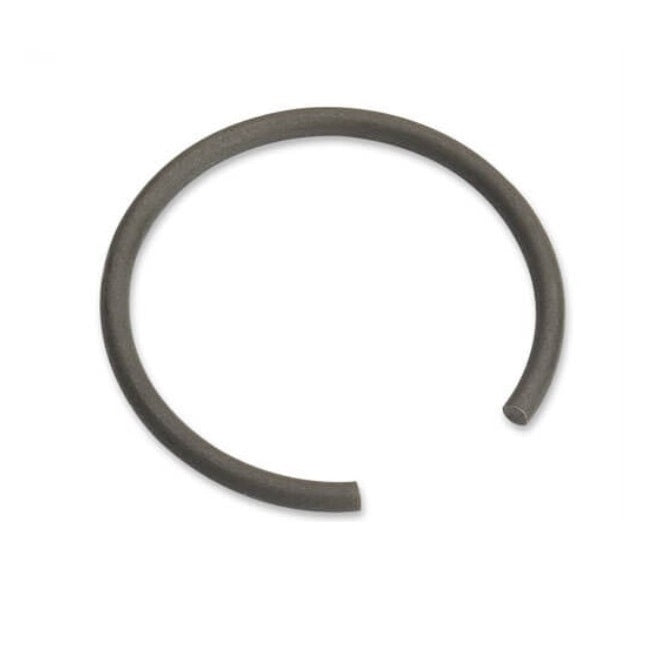

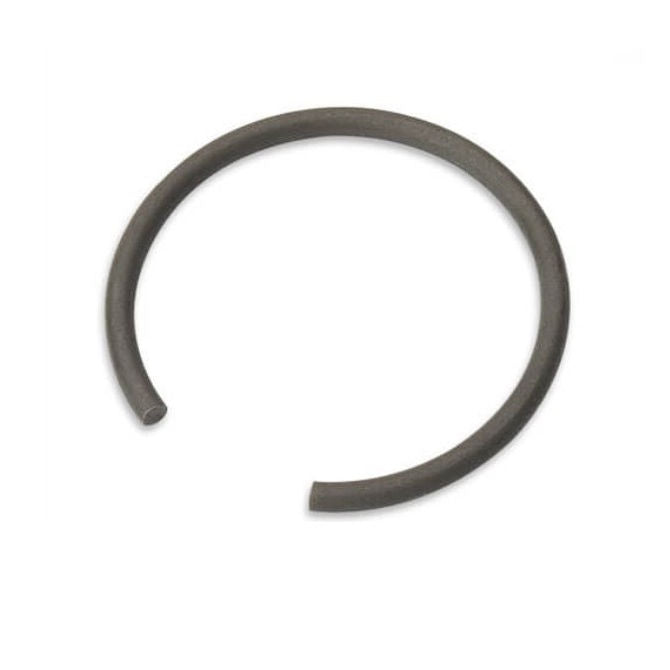

Circlips - 90 mm x 3.2 mm x 94 mm
WRI-0900-RD

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Snap Rings
Price:
$15.77 AUD
$15.77 AUD
Each
Out Of Stock
Order 50 or more for $14.19 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 18, 2025

Base Category: Wire Rings - Internal

Top Level Category: Wire Rings - Internal - Round Section

Product Details:

Additional stock available from USA subject to Prior Sale = 113

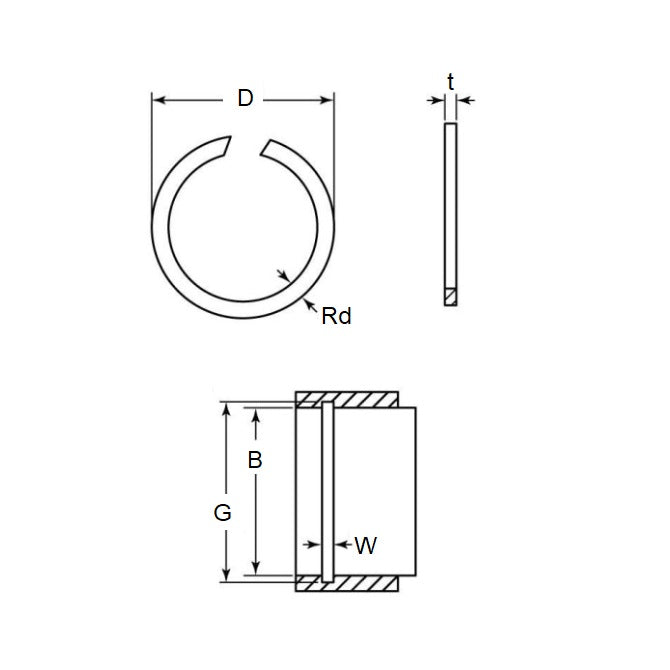

Hsg. Bore (Db): 90.00mm
Spring Steel
  • Wire Thickness (t): 3.2mm
    B DIN 2076
  • Free Outside Dia (Dr): 94.00mm
    +1.0/-0.0
  • Free Inside Diameter (D): 87.6mm
  • Groove Dia. (Dg): 93.20
    +0.00/-0.15
  • Groove Width (W): 3.60
  • Info: DIN7993
  • Section Profile: Round Section
  • Groove Radius (r): 1.80mm
  • Gap (g): 25.000mm

Brand: MBA
Country of Origin: USA

Alternatives: DRB-090, RB-090

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
