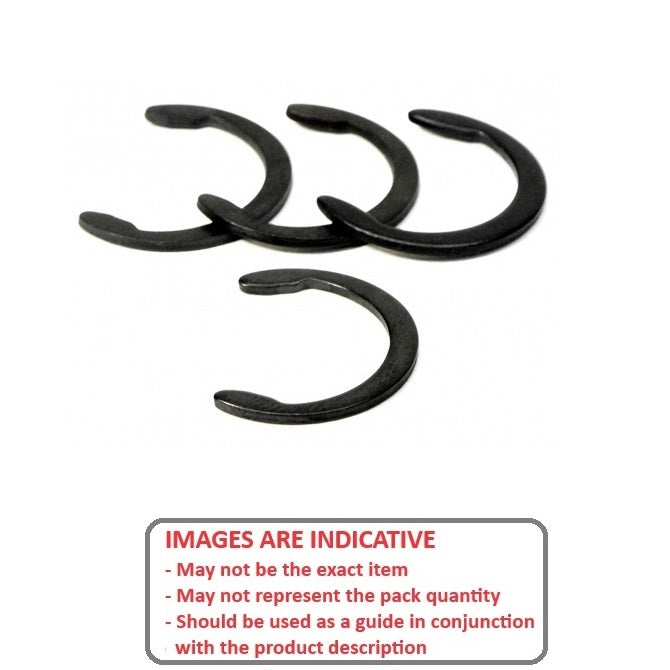

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

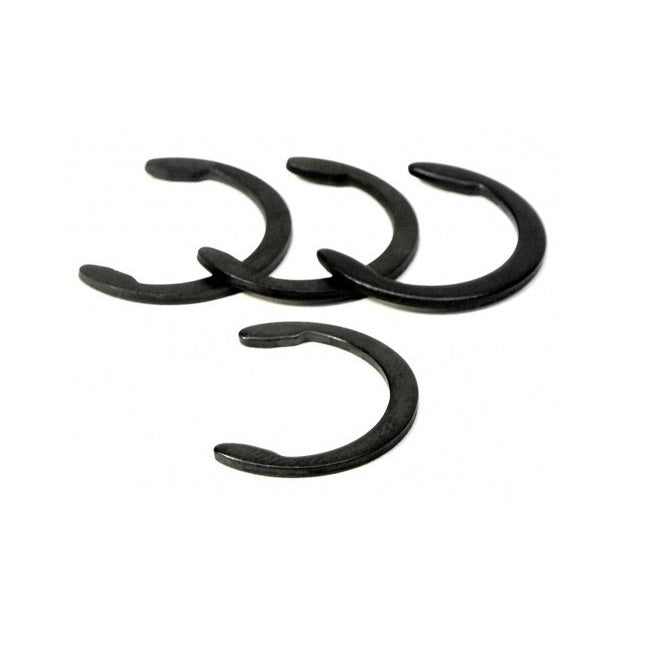

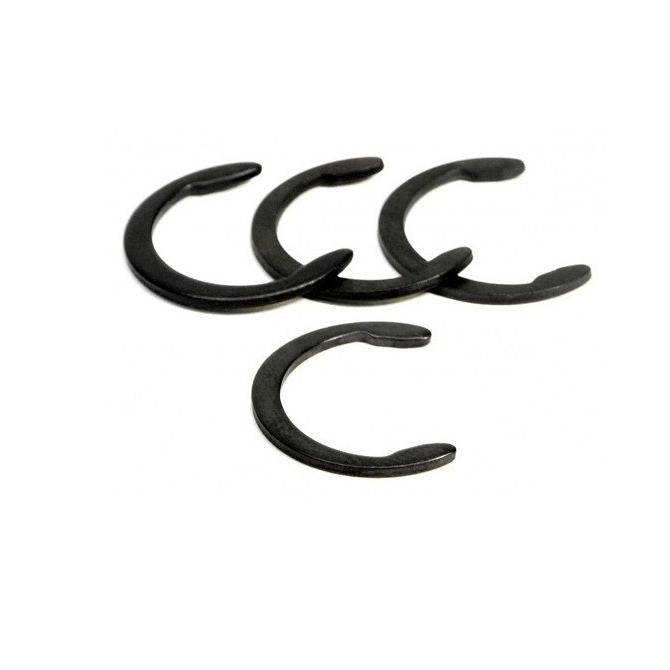

Rings - 9.98 mm x 11.13 mm x 0.64 mm
CC-100-111-C (20 Pcs)

Name: 1090420 | CC-100-111-C (20 Pcs) --- Rings - 9.98 mm x 11.13 mm x 0.64 mm
Brand: MBA
SKU: CC100111C
Price: 4.77 AUD
Availability: InStock

MBA

Category: Rings - Crescent

Price:

$4.77 AUD

per 20
Out Of Stock
Order 50 or more (1000 pcs) for $4.29 AUD per 20

More stock due Jan 11, 2025: Qty 40 (800 pcs)

Similar Items

Pre-Order now! If you wish to order more than 40, delivery is expected before Jan 17, 2025

Quantity

Base Category: Retaining Rings - Crescent

Top Level Category: Retaining Rings - Crescent

Product Details:

Additional stock available from USA subject to Prior Sale = 4921

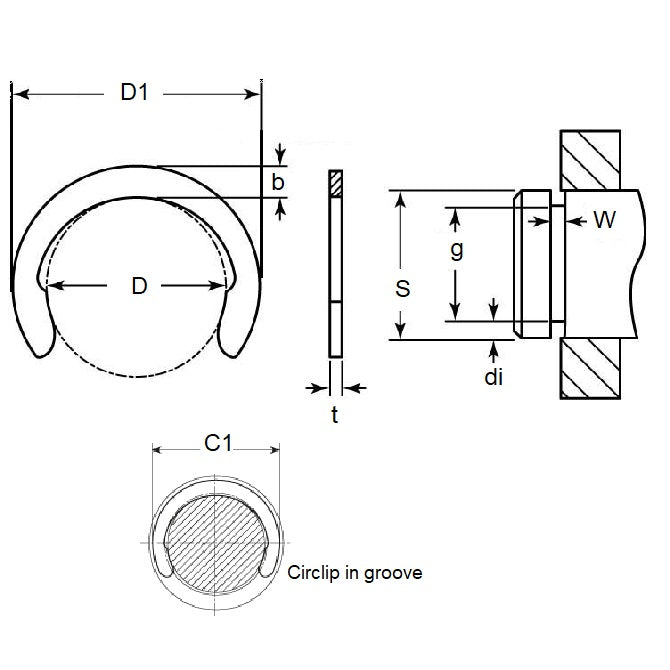

Groove Diameter (G): 9.98mm
Carbon Spring Steel

Shaft Diameter (S): 11.13mm
Thickness (t): 0.64mm
Clip OD in groove (C1): 13.46mm
Clip OD Loose (D1): 13.13mm
Groove Width (W): 0.74

Brand: MBA
Country of Origin: US

Alternatives: C-043, C-043/B, C-043-B, N1800-0043APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
