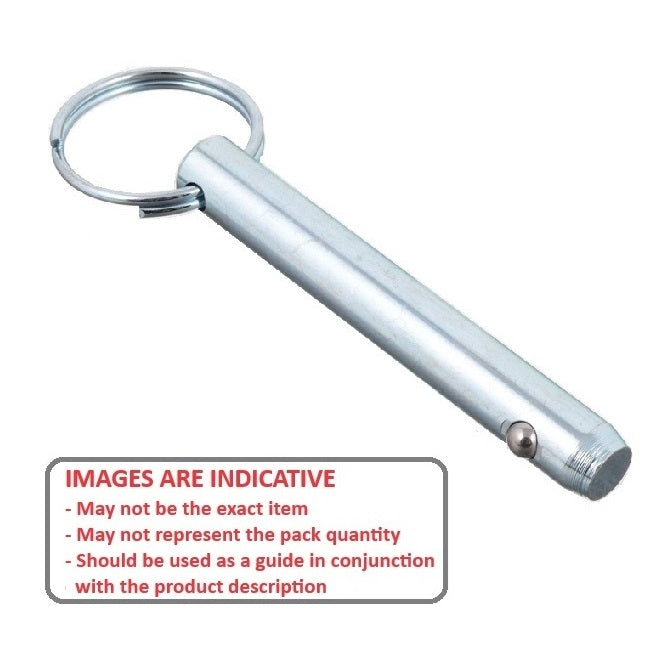

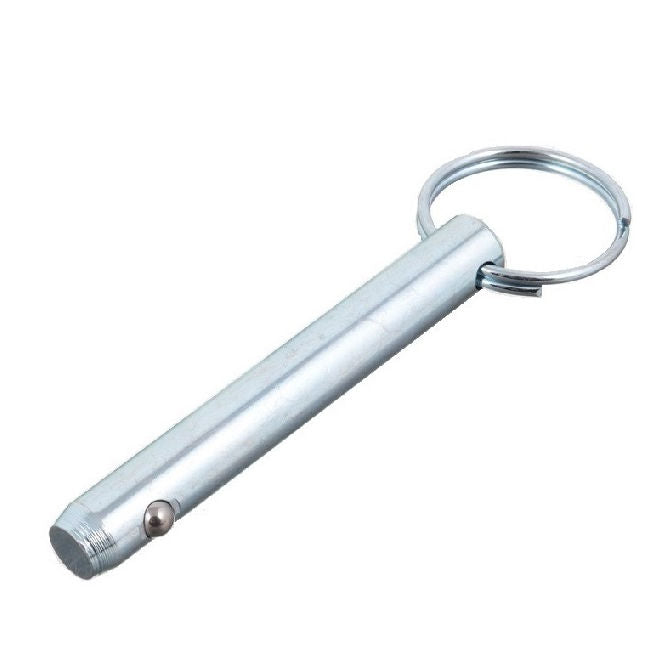

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Pins - 9.53 mm x 25.4 mm Carbon Steel
BLP-095-0254-K1-C

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$5.32 AUD
$5.32 AUD
Each
Out Of Stock
Order 50 or more for $4.79 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 03, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Keyring Style - Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 9226

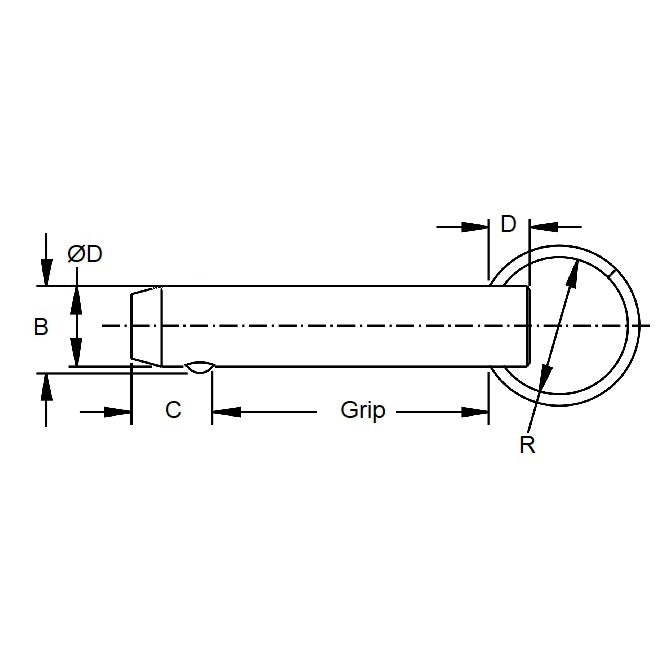

Nominal Diameter: 9.53mm
  • Grip Length: 25.40mm
  • Pin Material Grade: Carbon Steel
  • Locking Ball to End (C): 12.70mm
  • Open Ball Distance (B): 10.82mm
  • Detent Style: 1 Ball Plain Pin No Shoulder
  • Ring Diameter (R ): 25.40mm
  • Depth of Ring in Pin (D): 6.35mm

Brand: MBA
Country of Origin: US

Alternatives: 98320A370, DTP-0375-1000, FPC6-10R

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
