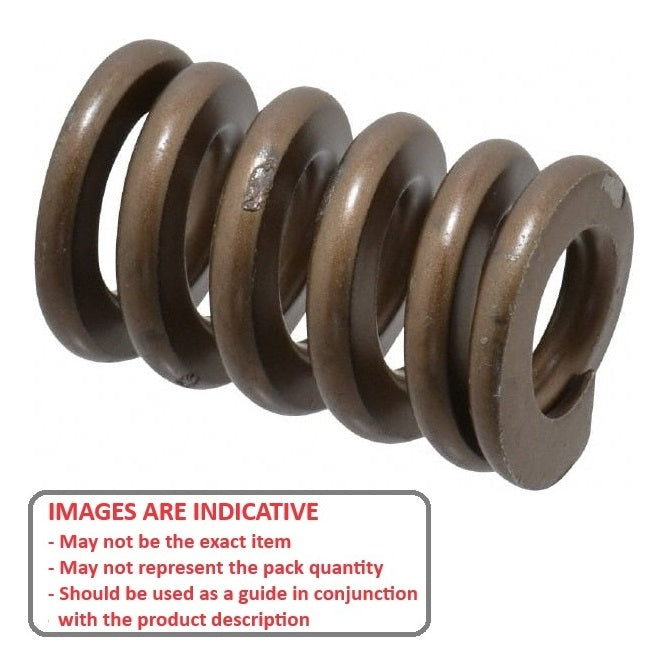

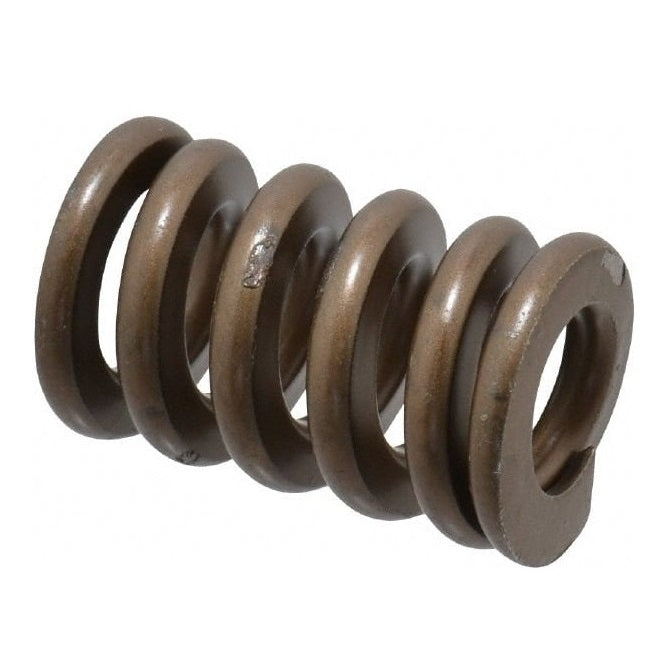

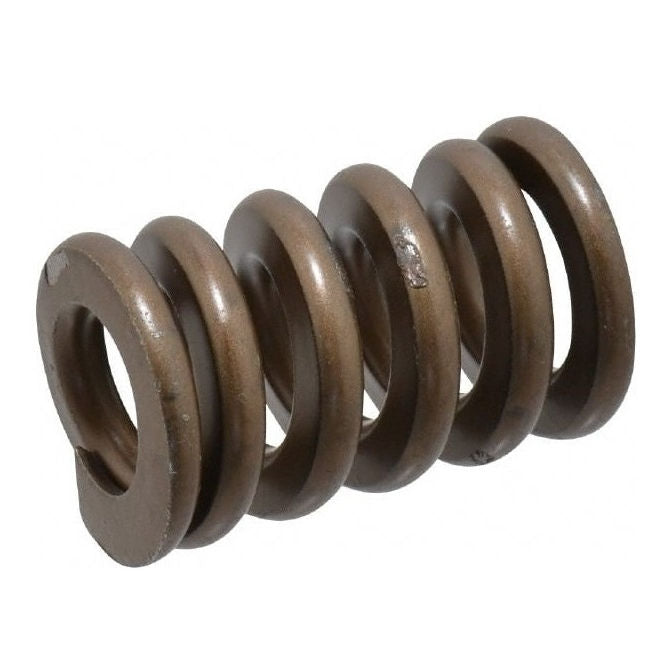

Springs - 9.53 mm x 4.763 mm x 76.2 mm
DS-095-076-HD
Spings Catalogue PDF
Out Of Stock
Order 50 or more for $15.67 AUD Each
Base Category: Springs - Die
Top Level Category: Springs - Die - Imperial - Heavy Duty - Standard

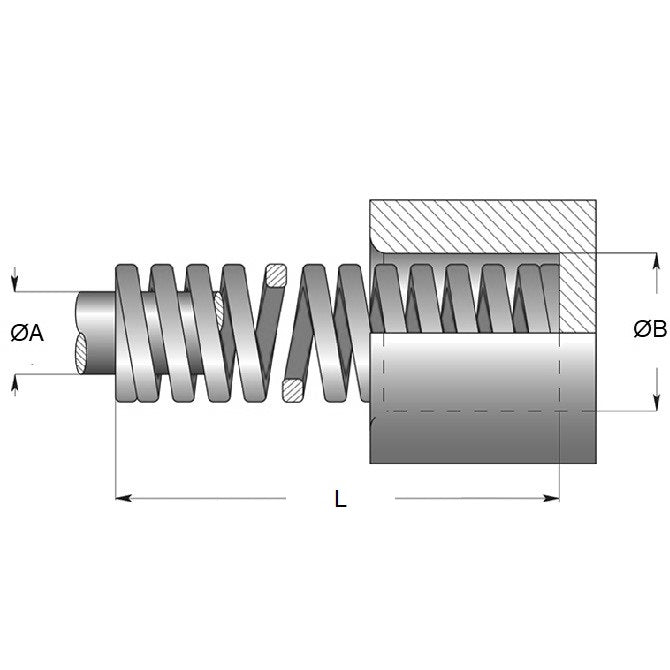

Product Details:Hole Diameter (A): 9.53mm
Spring Steel
- Rod Diameter (B): 4.763mm
- Length (L): 76.200mm
- Optimum Deflection: 15Percent
- Optimum Deflection: 11.4mm
- Load at Optimal: 82.1N
- Maximum Deflection: 25Percent
- Maximum Deflection: 19.1mm
- Load at Maximum: 137.5N
- Spring Rate: 7.2N/mm
- Colour Code: Gold
Brand: MBA
Country of Origin: US
Alternatives: JS-707
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
