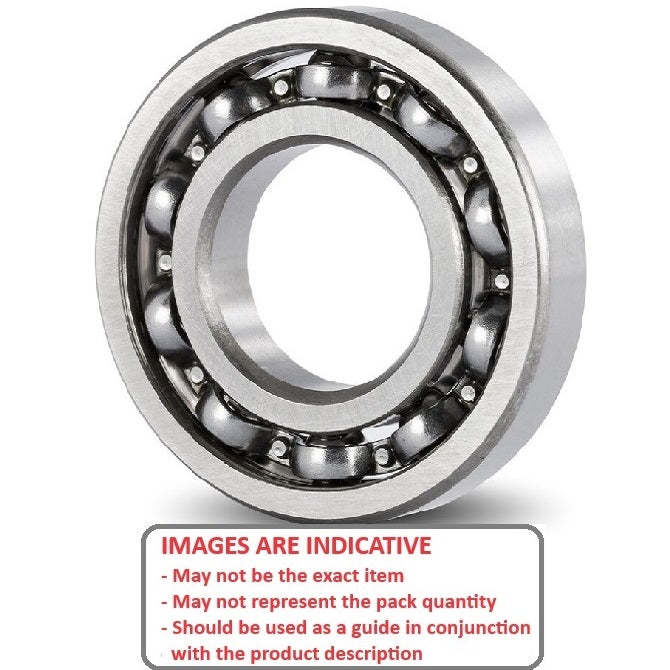

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

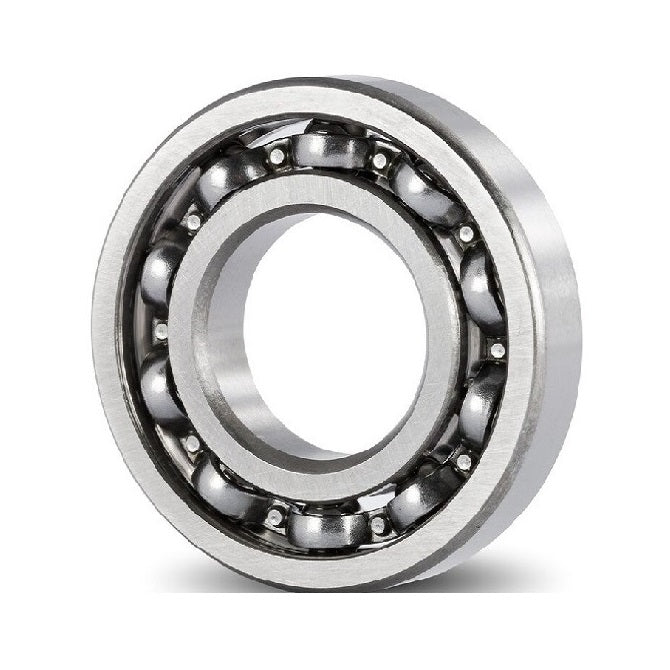

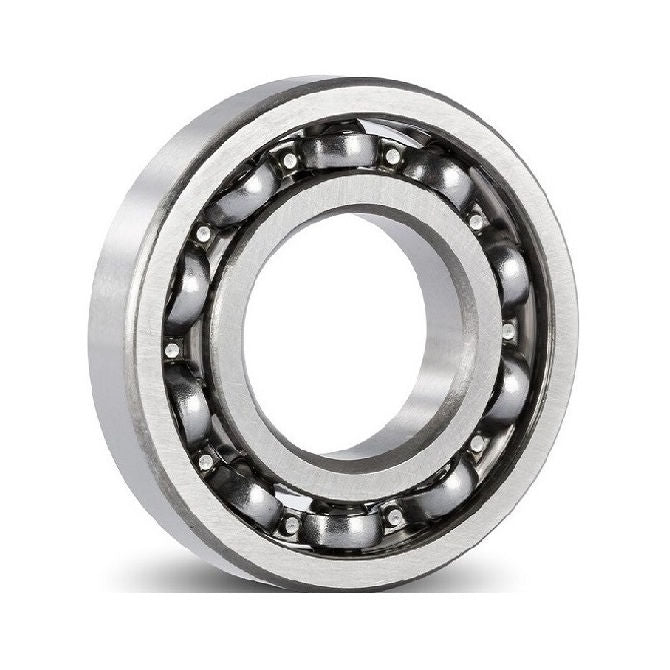

Single Row Ball Bearings - 9.525 mm x 22.225 mm x 5.556 mm
SR6-MC3-AF12

Name: 1088032 | SR6-MC3-AF12 --- Single Row Ball Bearings - 9.525 mm x 22.225 mm x 5.556 mm
Brand: MBA
SKU: SR6MC3AF12
Price: 5.66 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$5.66 AUD

~~$8.50 AUD~~ $5.66 AUD

Each
Qty: 45 available now

Only 45 packs may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Product Details:

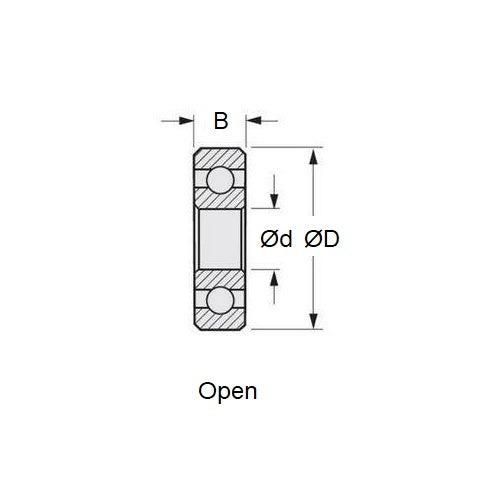

ID (d): 9.525mm
_{+0.000/-0.0075}

AIS I 440C Stainless Steel

OD (D): 22.225mm
_{+0.000/-0.010}
Width (B): 5.556mm
_{+0.000/-0.125}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Alternatives: 6138K14, AS3K, DD-R1-1438, DDR1-1438, R6-MC3-AF12, SBR3-8, SR6, SR-6, SR6R, SS-R1-1438, SSR1-1438, SSR6, SSR6D, WY3-8

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for RC Nitro Engine Parts. Brands: Dooling, Fox, Irvine, K.B, Kraft, McCoy, OPS, Webra. Models: 0 - 15, 0.15, 15 All Models, 3.5 21CC All Models, 40 All Models, 40 With Tapered Collect - 0.17, 45 All Models, 61 - 67, 61 FS Speed - 160, 65 All Models, DF - 61, DF - 91, IB - 11, IB - 25, IB - 61, IB New - 6.5, Inboard Late Model - 11, New - 1, Old 1.
