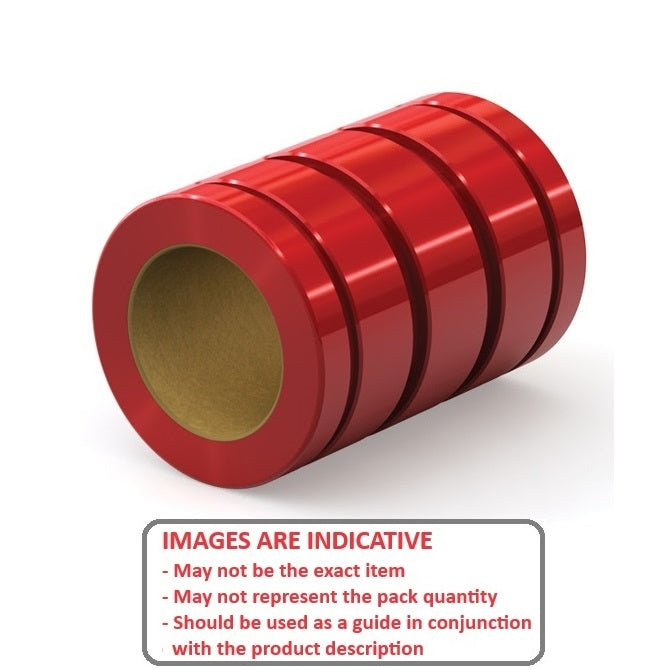

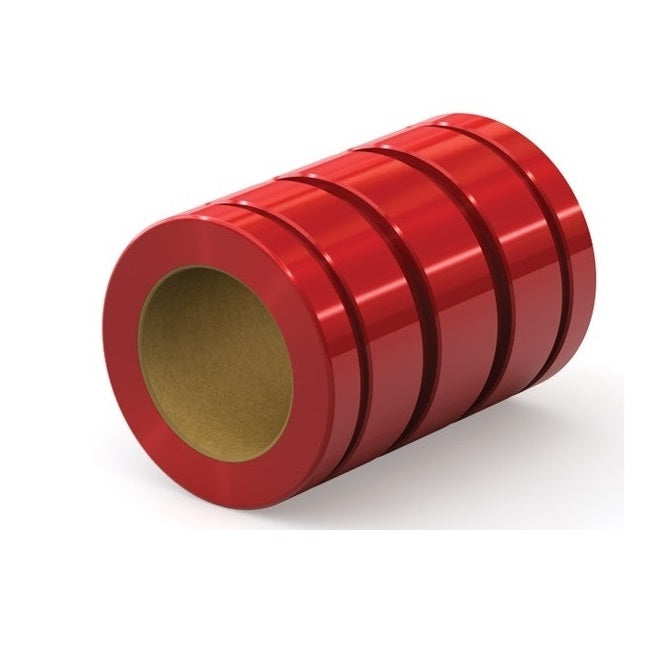

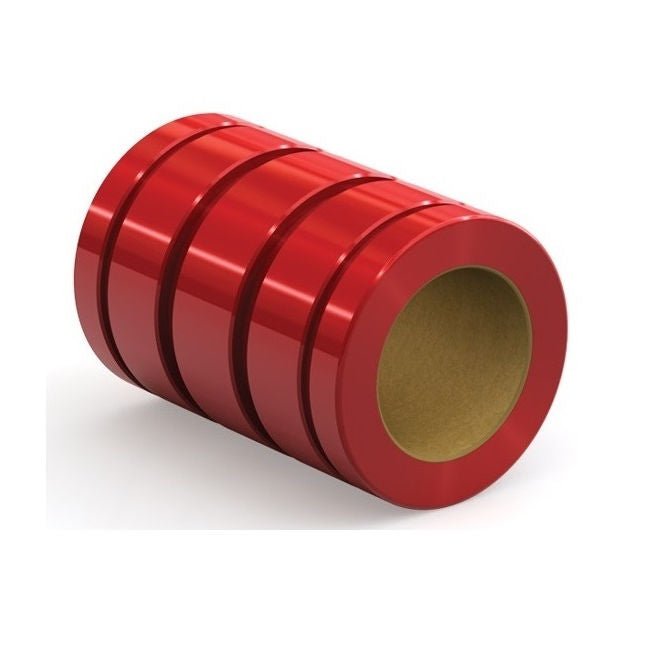

Bearings - 9.525 mm x 15.875 mm x 22.225 mm
LCP-0095-016-022-FG
Out Of Stock
Order 50 or more for $38.66 AUD Each
Base Category: Bearings - Linear Sliding
Top Level Category: Bearings - Linear Sliding - Frelon Gold Lined - Closed - Standard

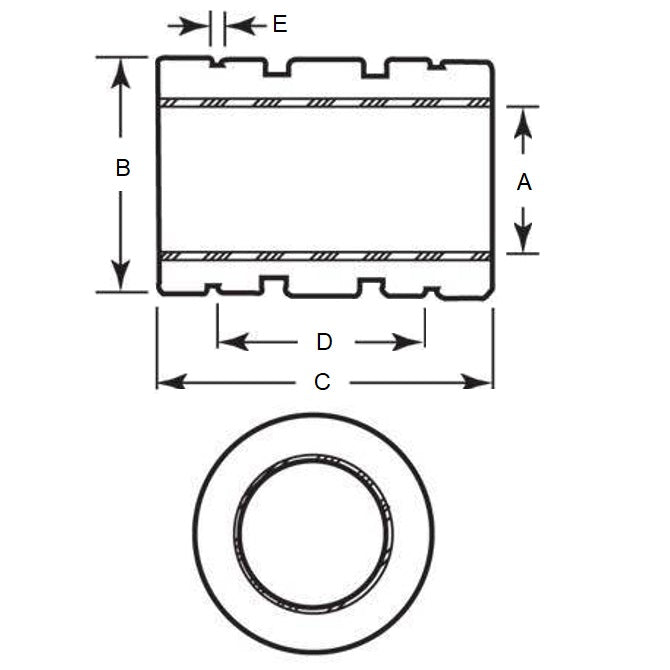

Product Details:Nom. Shaft Size (T): 9.525mm
Frelon Gold Lined
- Nom. Outer Diameter (D): 15.875mm
- Overall Length (L): 22.225mm
- Max. Load: 231.332N
- Groove Distance: 14.275mm
- Groove Width: 1.041mm
- Series: Compensated
- Type: Closed
- Max Speed Dry: 42.600m/s
- Max Speed Lubricated: 122.000m/s
Brand: MBA
Country of Origin: US
Alternatives: 5986K671, FLC06, PBC-27
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
