SHLD095-008-SKT-J-C (500 Pcs)

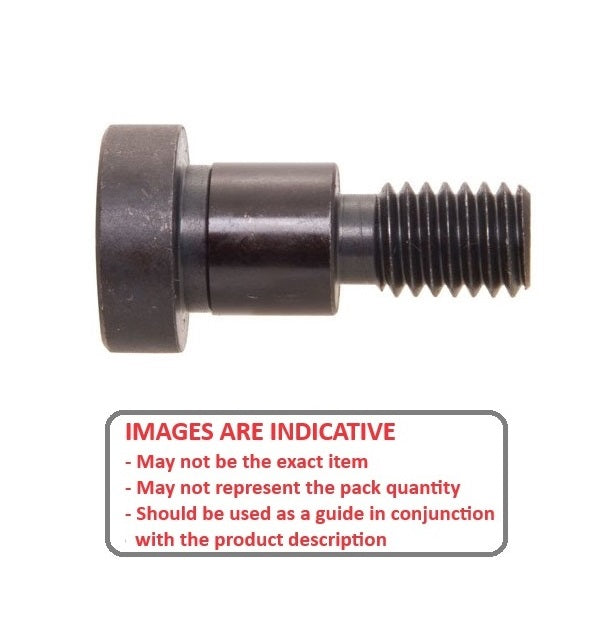

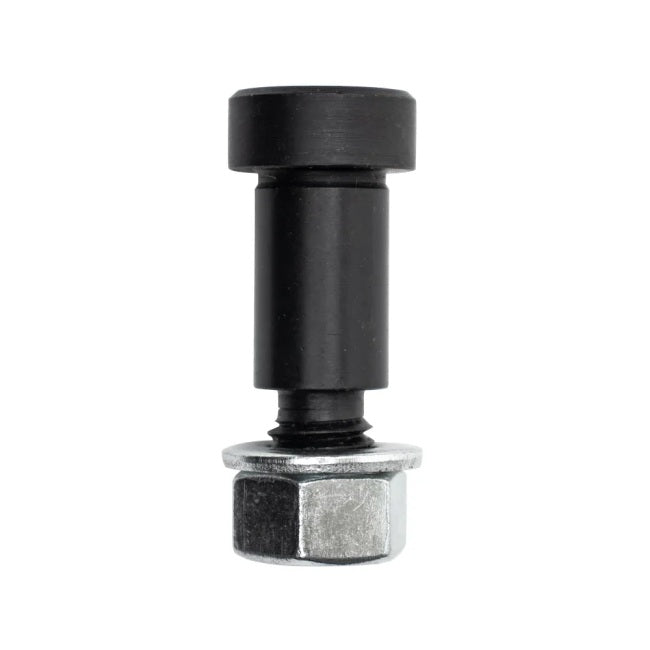

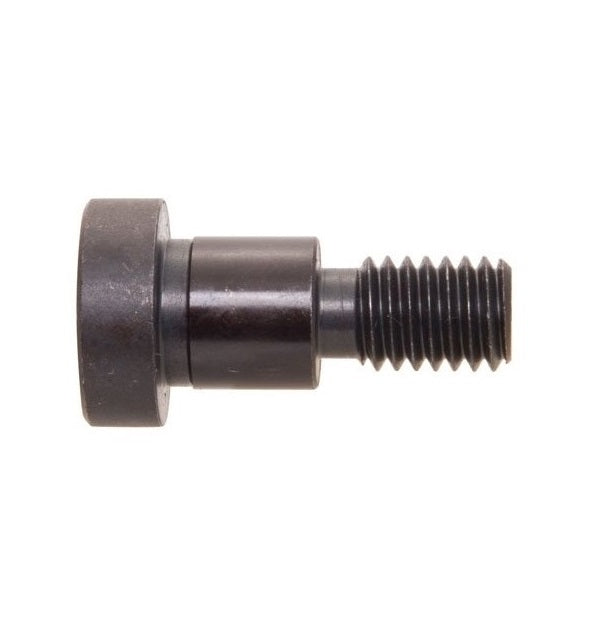

Shoulder Screws - 9.525x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$7,179.14 AUD
$7,179.14 AUD
per 500
Out Of Stock
Order 50 or more (25000 pcs) for $6,461.23 AUD per 500
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 03, 2025

Base Category: Screws - Shoulder

Top Level Category: Screws - Shoulder - Jig and Fixture

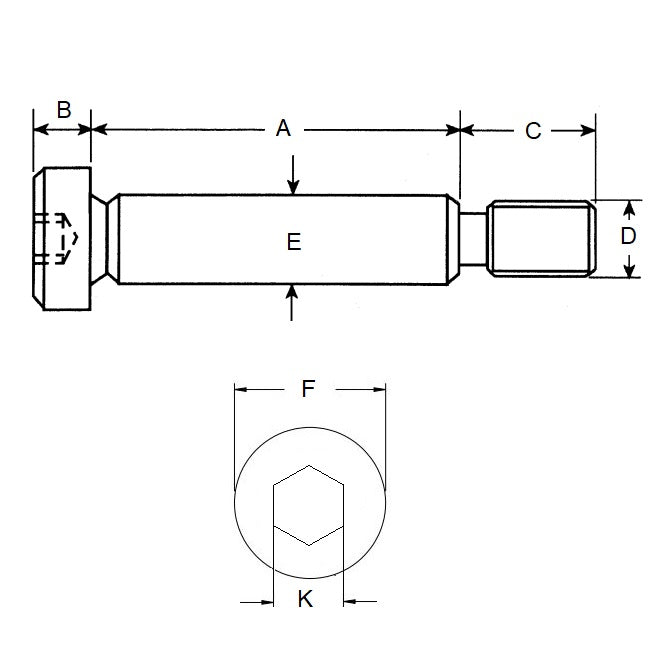

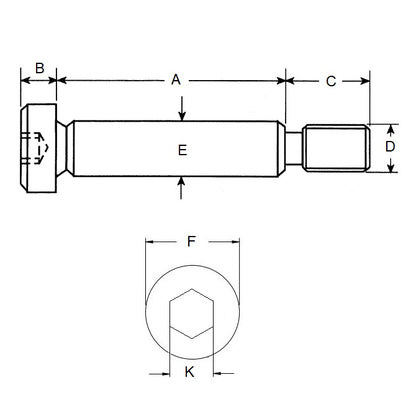

Product Details:

Shoulder Diameter (E): 9.525mm
- 0.051 / - 0.102
(9.525mm is 0.375 in.)

Steel 4140L Heat Treated
  • Shoulder Length (A): 7.938mm
    (7.938mm is 0.313 in.)
  • Thread (D): 1/4-20 UNC
  • Max. Thread Length (C): 9.53mm
  • Head Height (B): 4.76mm
  • Head Diameter (F): 15.88mm
  • Hex Key Size: 4.75mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: SS-2, SS2

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
