BB-095-ZD (Each)

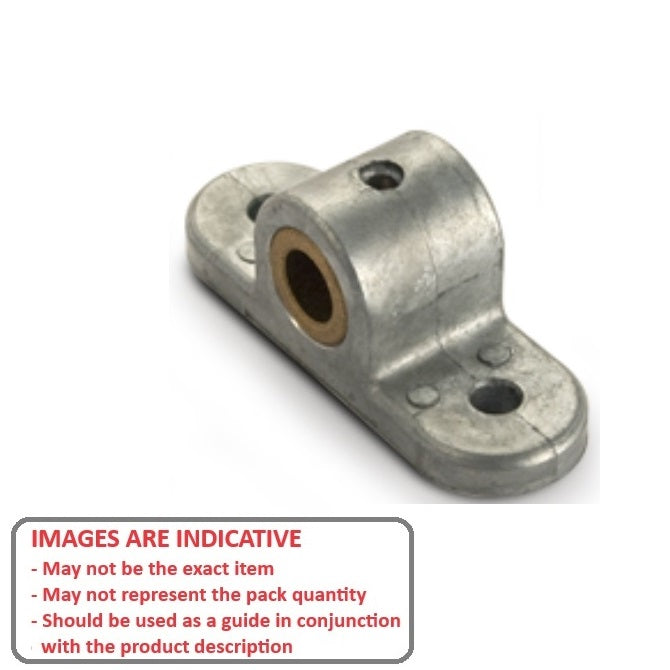

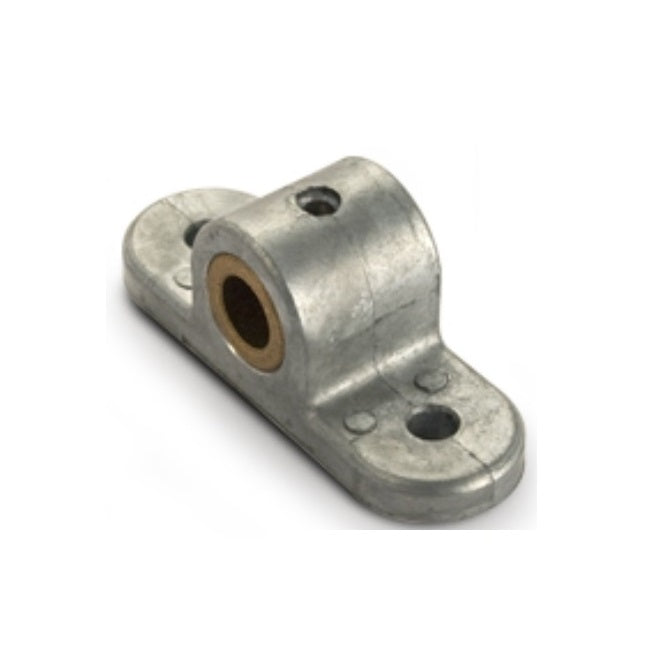

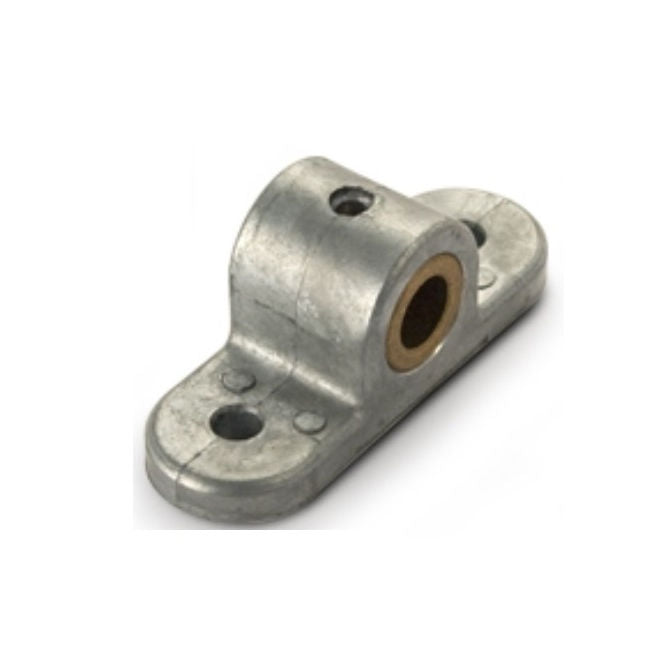

Pillow Block Die Cast Housings - 9.525x56.356x38.1 mm - Die Cast Zinc Housing
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportCouldn't load pickup availability
Base Category: Housings - Pillow Block Die Cast
Top Level Category: Housings - Pillow Block Die Cast
Product Details
Deleted Item. Available while stocks last.
Bore Diameter: 9.525mm
+ 0.10 / + 0.05
(9.525mm is 0.375 in.)
Die Cast Zinc

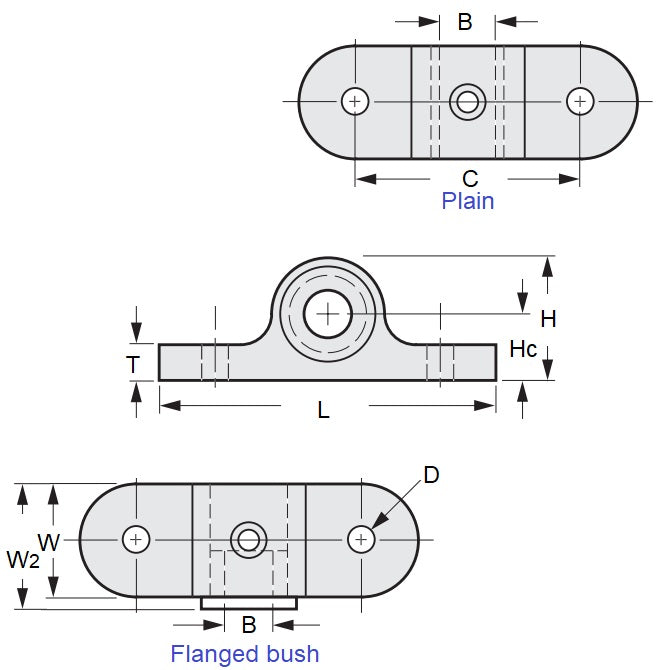

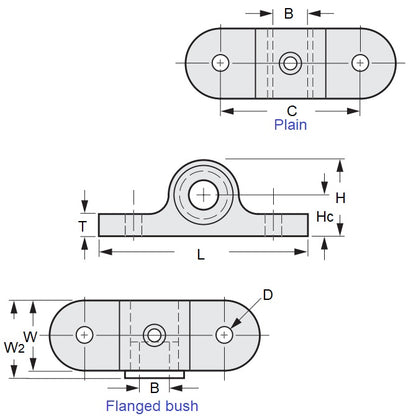

- Bore Diameter: 9.525mm
+ 0.10 / + 0.05
(9.525mm is 0.375 in.)
- Length (L): 56.356mm
(56.356mm is 2.219 in.)
- Bolt Hole Centres (c): 38.100mm
(38.100mm is 1.5 in.)
- Width (W): 19.050mm
- Height (H): 20.638mm
- Centre Height (Hc): 11.113mm
- Base Height (T): 4.762mm
- Bolt Hole Diameter: 4.762mm
- Sintered Bearing Type: None
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- A 7Z 4-37
- A7Z4-37
- A7Z437
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BB095
