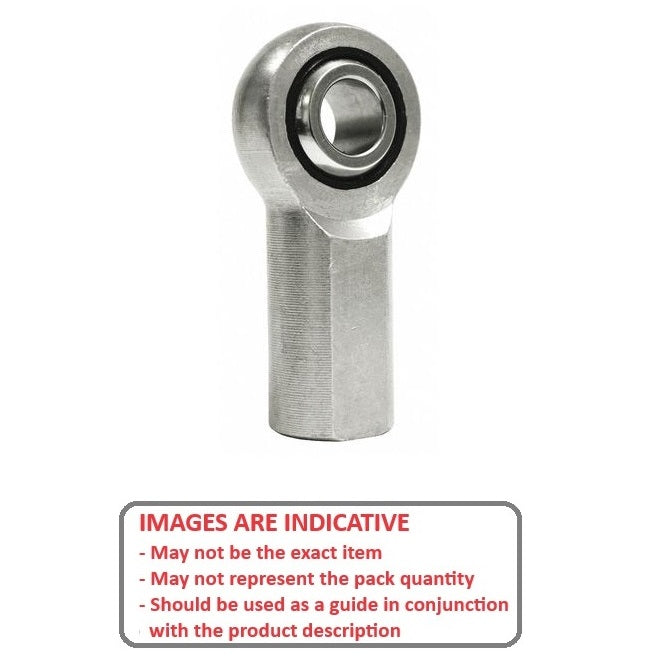

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Female Rod Ends - 9.525 mm x 53.975 mm 3/8-24 UNF Right
REF-095-R-SN

MBA

Price:
$93.59 AUD
$93.59 AUD
Each
Out Of Stock
Order 50 or more for $84.23 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Feb 02, 2025

Base Category: Rod Ends - Female

Top Level Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway

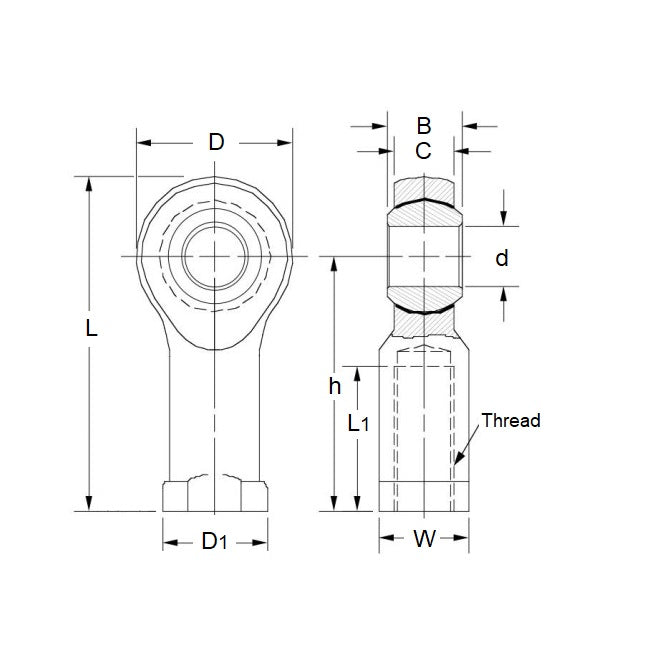

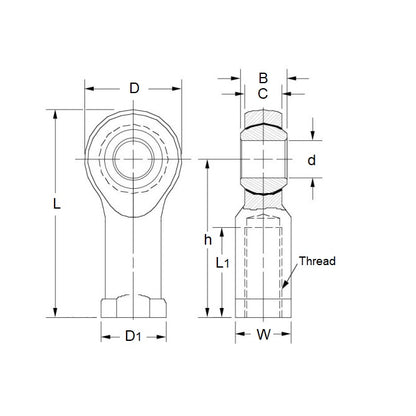

Product Details:

Eye Size (d1): 9.525mm
Stainless with Nylon
  • Overall Length (L): 53.975mm
  • Thread Size: 3/8-24 UNF Right
  • Thread Length (l2): 23.80mm
  • Head Width (W): 10.31mm
  • Eye Width (W1): 12.70mm
  • Head Diameter (D): 25.40mm
  • Centre Height (l1): 41.28mm
  • Grease Nipple: No
  • Body Width/Flange Width(W2/D3): 17.45 / 14.28mm

Brand: MBA
Country of Origin: DE

Alternatives: SSPF

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
