TR-095-110-040-S3 (Each)

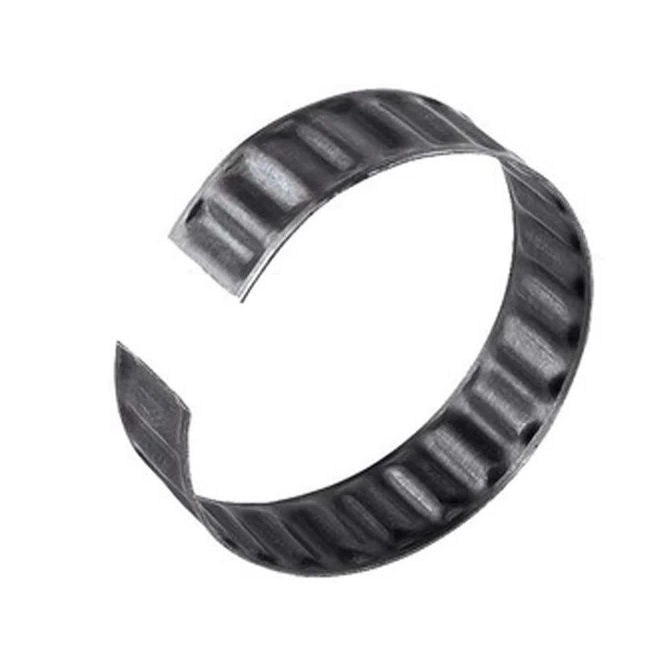

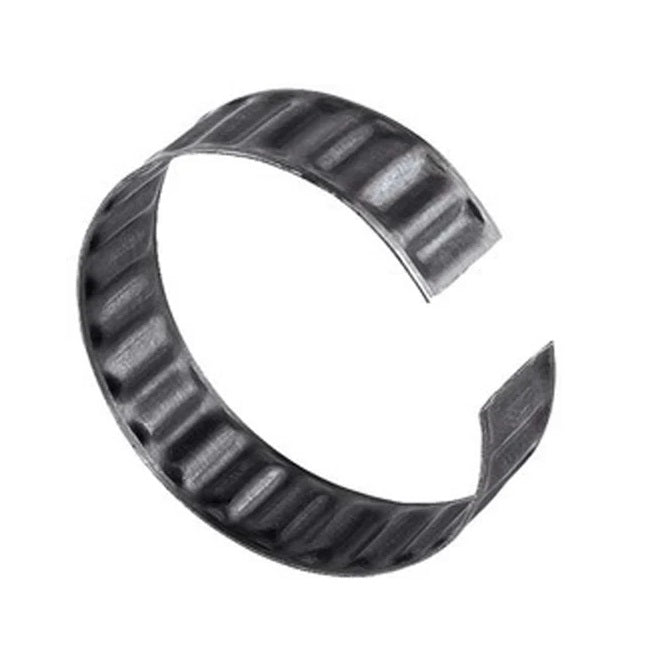

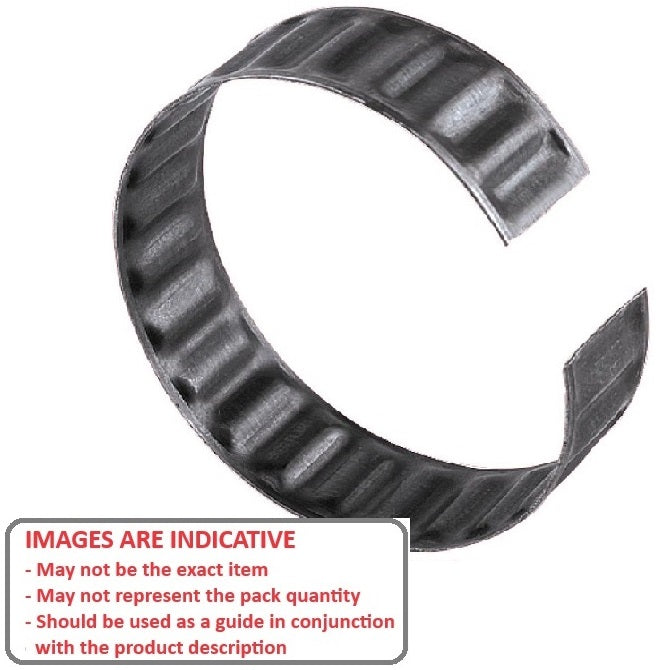

Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $31.05 AUD Each
Couldn't load pickup availability
9.50 to 9.48 10.97 to 10.90 4 mm Tolerance Retaining Rings - Stainless Steel 301 (Similar to A2, 302, 304, 18-8) - Sold per Each:
Base Category: Retaining Rings - Tolerance
Top Level Category: Retaining Rings - Tolerance
Product Details

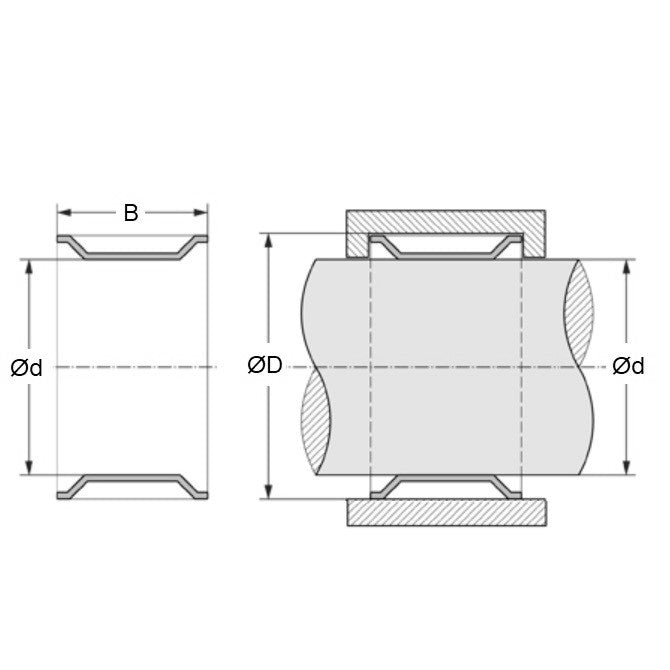

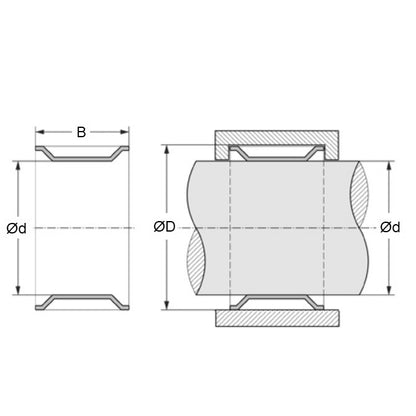

Inner Part OD (d): 9.50 to 9.48mm(9.50 to 9.48mm is 0.374 in.)
Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
- Inner Part OD (d): 9.50 to 9.48mm
(9.50 to 9.48mm is 0.374 in.)
- Housing ID (D): 10.97 to 10.90mm
(10.97 to 10.90mm is 0.432 in.)
- Ring Width (B): 4.00mm
(4.00mm is 0.157 in.)
- Outer Part ID (DT) mm: 10.82 to 10.77For Torque Transfer
- Max. Design Torque: 0.90N.m
- Style: For bearing OD
- Max. Radial Load: 180N
- Max. Design Thrust: 200N
- To Suit OD of Bearing: R2
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 3547K11
- S77RH1M095X04
- TR0951100403
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
TR095110040S3, TR095110
