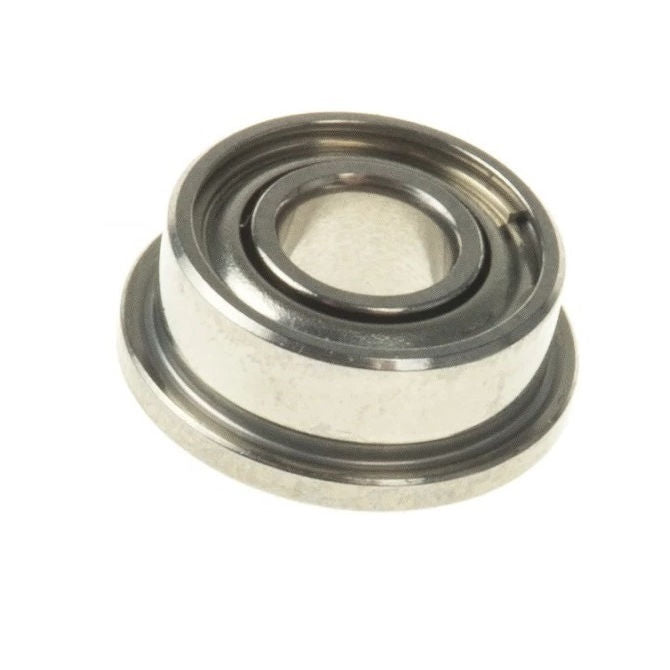

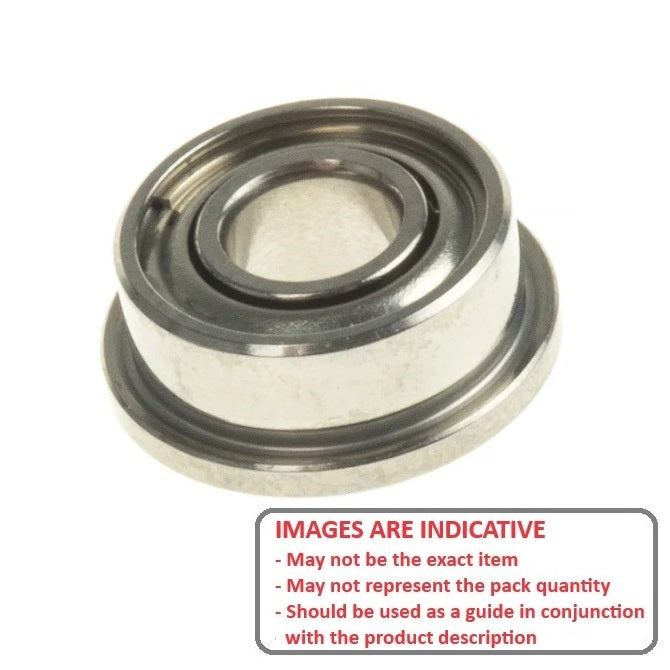

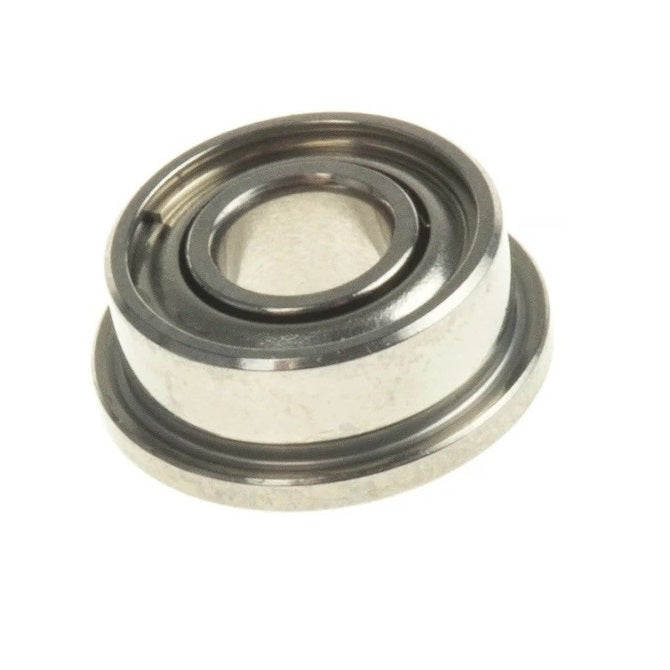

Bearings - 8 mm x 16 mm x 6 mm
SF688B-ZZS-MC34-GR7-R-G48

Name: 1082433 | SF688B-ZZS-MC34-GR7-R-G48 --- Bearings - 8 mm x 16 mm x 6 mm
Brand: MBA
SKU: SF688BZZSMC34GR7RG48
Price: 40.46 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$40.46 AUD

~~$60.70 AUD~~ $40.46 AUD

Each
Qty: 6 available now

Similar Items

Only 6 packs may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Product Details:

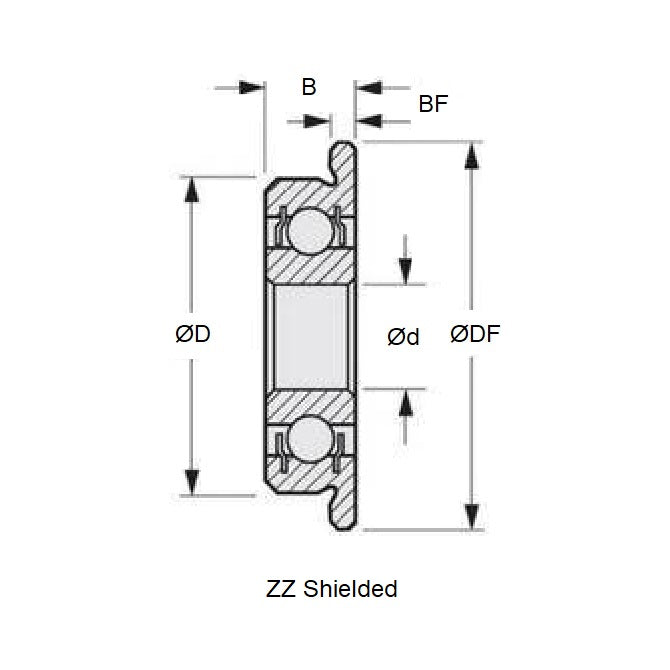

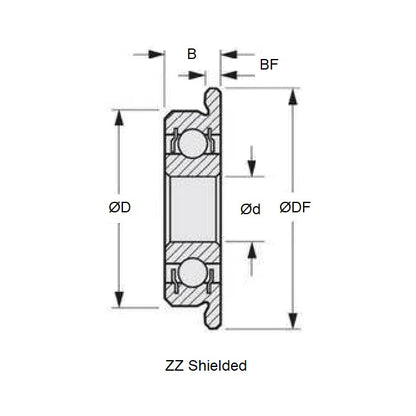

ID (d): 8.000mm
_{+0.000/-0.004}

AIS I 440C Stainless Steel

OD (D): 16.000mm
_{+0.000/-0.005}
Width (B): 6.000mm
_{+0.000/-0.040}
Flange Diameter (DF): 18.000mm
Flange Width (BF): 1.300mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Lubricant: Turmogrease Li 802 EP plus

Brand: MBA
Country of Origin: DE

Alternatives: P4-F688SS, P4-SF688SS, SF688BZZSMC3GR7G48, SF688BZZSRGR7MC34G48, ULKZ-816X-48-A7P-6/15-G48, ULKZ816X-A7P-G48

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
