DT-419RS (Each)

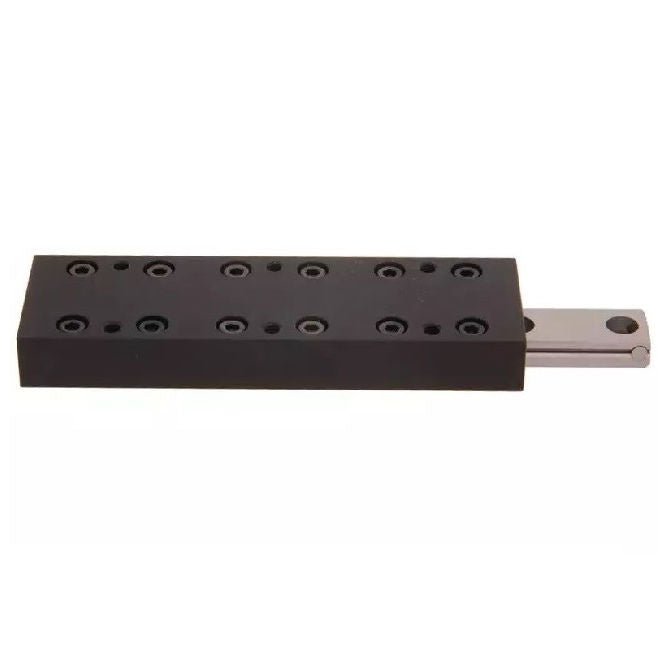

Cross Roller Slide Tables Low Profile Linear - 89.992 mm - 309.35 Kg - 154.991 mm - Aluminium

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Cross Roller Slide Tables Low Profile Linear - 89.992 mm - 309.35 Kg - 154.991 mm - Aluminium
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$1,549.59 AUD
$1,859.51 AUD $1,549.59 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $1,394.63 AUD Each
Backorder now! Backorders are expected before Aug 02, 2026

89.992 mm - 309.35 Kg - 154.991 mm Cross Roller Slide Tables Low Profile Linear - Aluminium - Sold per Each:

Base Category: Linear - Cross Roller Slide Tables Low Profile

Top Level Category: Linear - Cross Roller Slide Tables Low Profile - Aluminium

Product Details

Travel: 89.992mm
(89.992mm is 3.543 in.)

Aluminium
  • Travel: 89.992mm
    (89.992mm is 3.543 in.)
  • Load Capacity: 309.350Kg
  • Length (L): 154.991mm
    (154.991mm is 6.102 in.)
  • Height (A) / Width (B): 16.002 / 40.005mm
  • Rail Height (C): 8.001mm
  • Number of Holes(Base/Carriage): 4 / 6
  • Rail Bolt Spacing (U/W): 140.0 / 95.0
  • R: 7.493mm
  • Thread Size (Base): Counterbored 10-32UNF
  • Thread Size (Carriage): 10-32UNFx7.49mm
  • Carriage Spacing (M / P): 30.0mm
  • Bolt From Carriage End (N): 27.5mm

Brand: MBA
Country of Origin: US
