G032B-080-M04-030-040-AB-G

Spur Gears - 80 tooth - 32x4 mm - Acetal - Brass Insert

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Module 0.4 Gear Racks
Price:
$10.00 AUD
$19.00 AUD $10.00 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Pickup available at Shop location

Usually ready in 4 hours

Base Category: Gears - Spur

Top Level Category: Gears - Spur - Standard - Module 0.4 - Plastic - With Insert

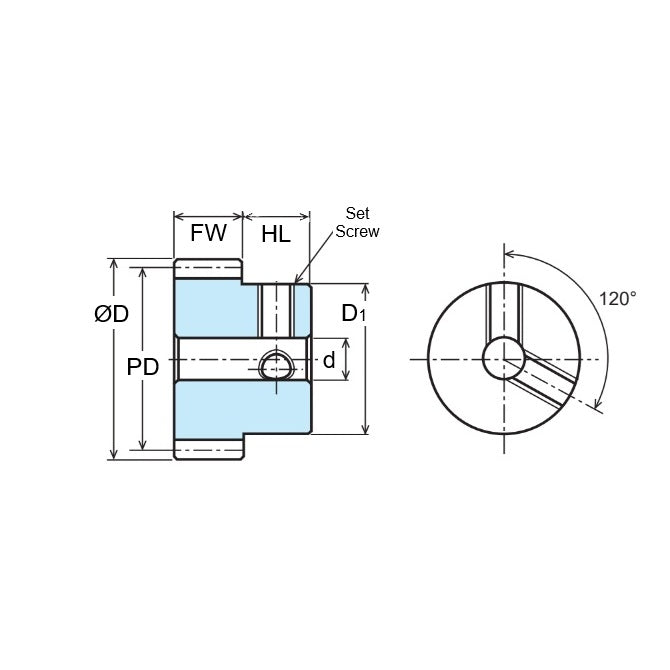

Product Details:

Teeth: 80

Acetal - Brass Insert
  • Pitch Circle Diameter (PD): 32.00mm
    (32.00mm is 1.26 in.)
  • Bore (d): 4.000mm
    (4.000mm is 0.157 in.)
  • Outside Diameter (OD): 32.800mm
  • Face Width (FW): 3.000mm
  • Hub Diameter (D1): 16.00mm
  • Hub Projection (HL): 6.50mm
  • Locking Method: Set Screw
  • Quality: ISO 9 / Machined

Brand: MBA
Country of Origin: JP

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: G032B80M04030040ABG

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
