BWU8-20 (PK-10)

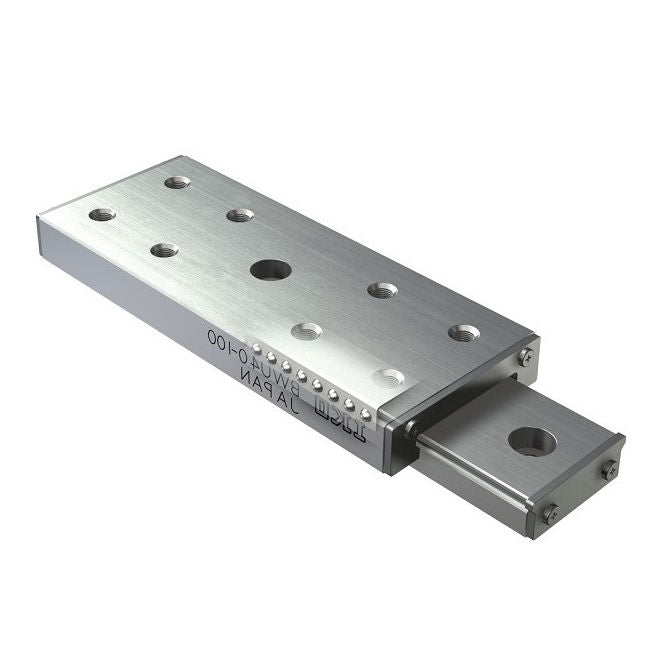

Linear Slides - 8x4x20 mm Clean Room
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportBase Category: Slides - Linear
Top Level Category: Slides - Linear - Clean Room
Product Details
Width (W): 8.00mm(8.00mm is 0.315 in.)
- Width (W): 8.00mm
(8.00mm is 0.315 in.)
- Height (H): 4.00mm
(4.00mm is 0.157 in.)
- Length (L): 20.00mm
(20.00mm is 0.787 in.)
- Hole Ctrs (W1 / W2 / L1 / L2 ): - / - / 10 / -mm
- Holes Thr x S1 (Nr.): M2 x 0.8 (4)
- Max Stroke Length: 12mm
- Screw Size / Max Depth: 0.8mm
- Track Width (W3): 3mm
- Track Height (H2): 2.6mm
- Basic Static Load Rating: 306Co N
- Allowable Load: 102F N
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
