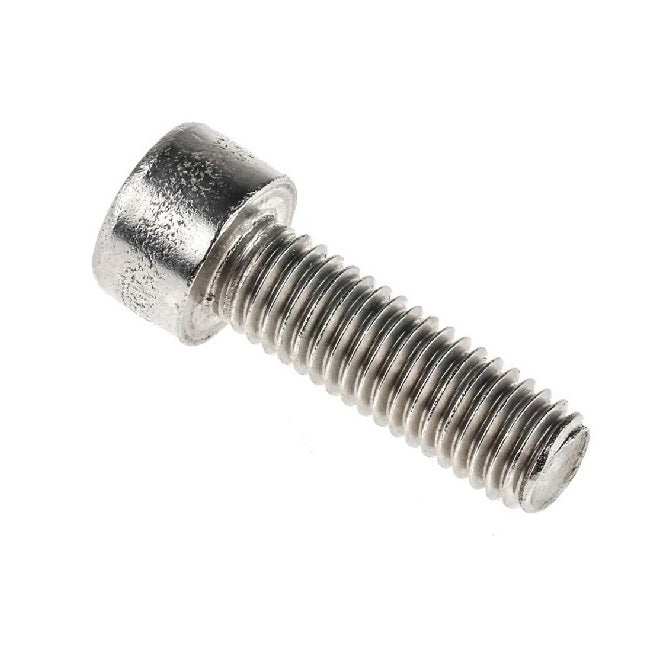

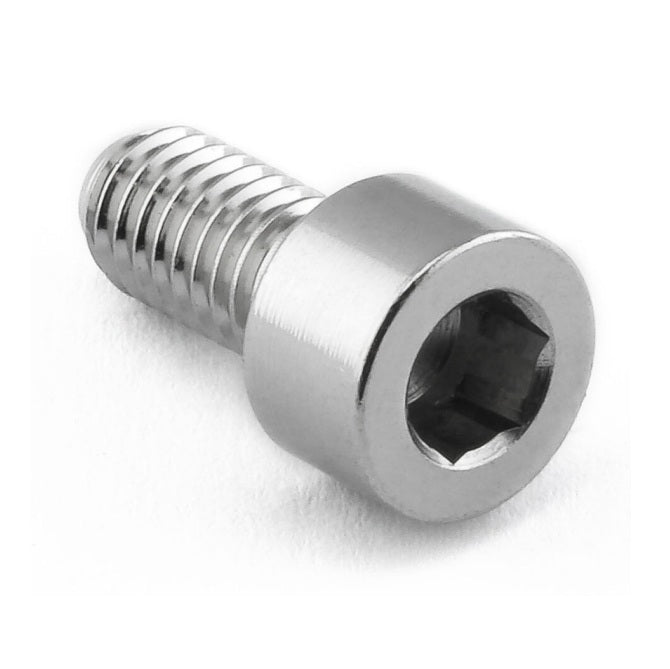

SC042C-011-C-SK-S3 (10 Pcs)
Qty: 47 available now (470 pcs)
Order 50 or more (500 pcs) for $4.37 AUD per 10
Base Category: Screws - Cap
Top Level Category: Screws - Cap - Socket - 303-304 Stainless

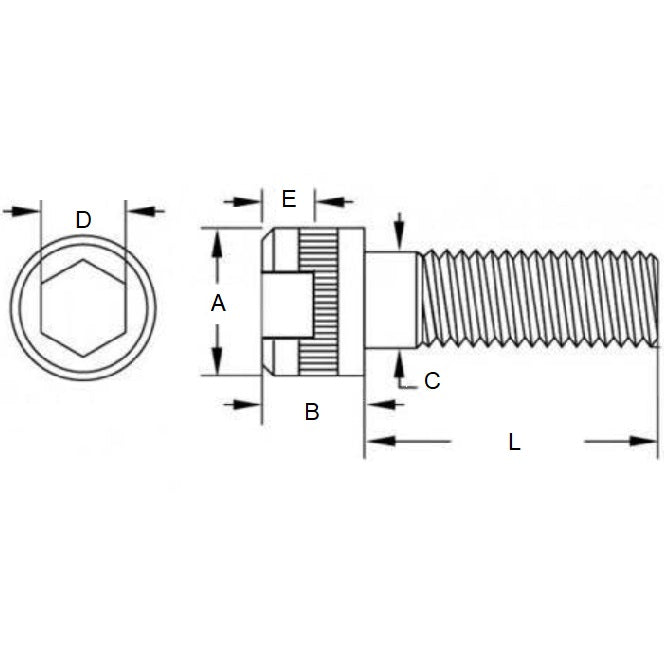

Thread Size (C): 8-32 UNC (4.166mm)
304 Stainless
- Length (L): 11.1mm
- Material: 303 Stainless
- Head Length (B Max.): 4.2mm
- Head Diameter (A Max.): 6.9mm
- Drive Depth (E): 1.96mm
- Shank Diameter (C): 4.03 - 4.17mm
- Hex Key (D): 3.57 (9/64)mm
- Pitch: 0.794mm
- Threads Per Inch: 32TPI
- Min thread Length: 11.1mm
Brand: MBA
Country of Origin: US
Alternatives: A9X26-083214
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
