CS-0800-0250-04-S4-C (5 Pcs)
Spings Catalogue PDF
Out Of Stock
Order 50 or more (250 pcs) for $10.11 AUD per 5
Base Category: Springs - Compression
Top Level Category: Springs - Compression - Stainless Steel

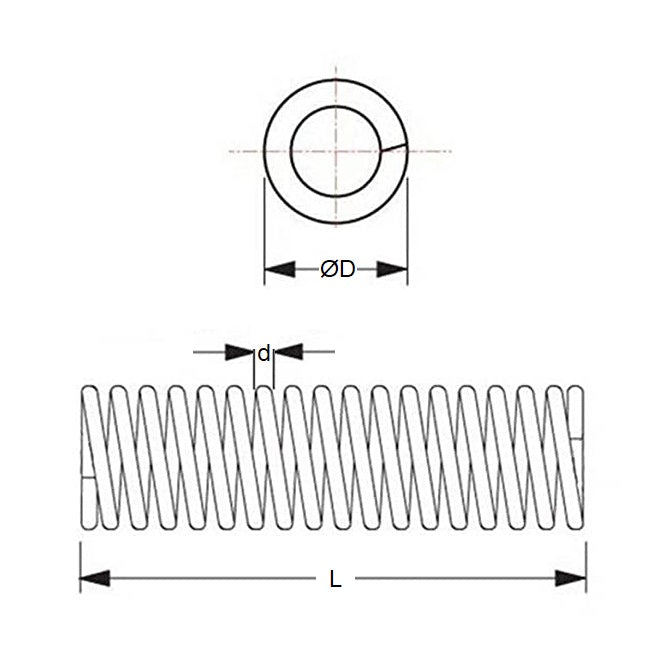

Spring OD (D0): 8.00mm
304 Stainless
- Free Length (L0): 25.0mm
- Wire Diameter (d): 0.400mm
- Loaded Height (L1): 7.00mm
- Load at L1: 0.88N
- Rate (P/f): 0.0N/mm
- Solid Height (Sh): 5.60mm
- End Type: Closed
- Max Rod Dia. (A): 7.20mm
Brand: MBA
Country of Origin: US
Alternatives: C-UV8-25
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
