W0080-FP-014-0025-CL (PK-50)

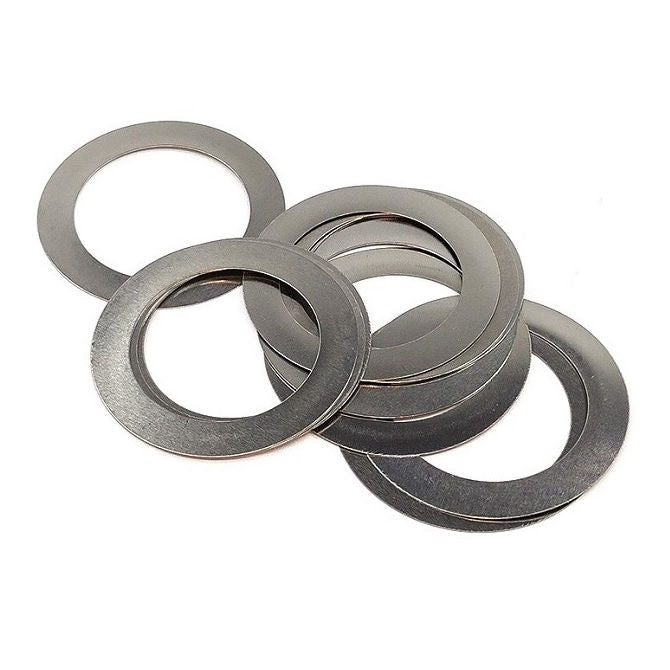

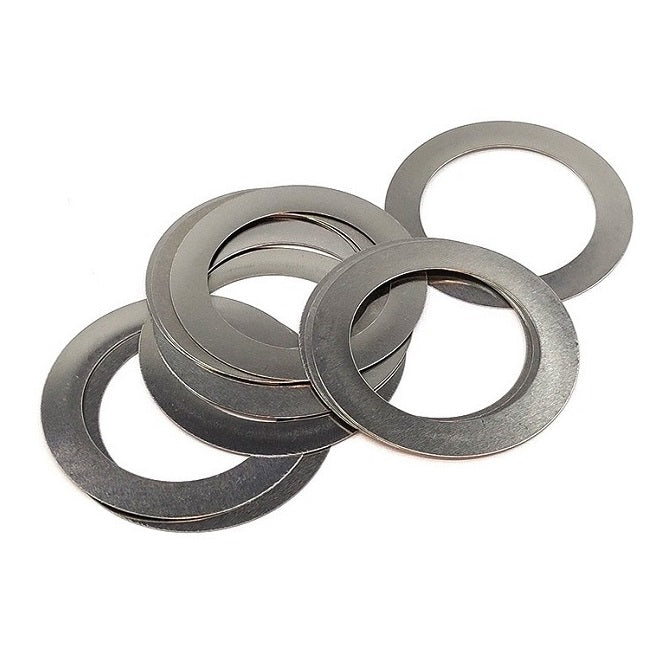

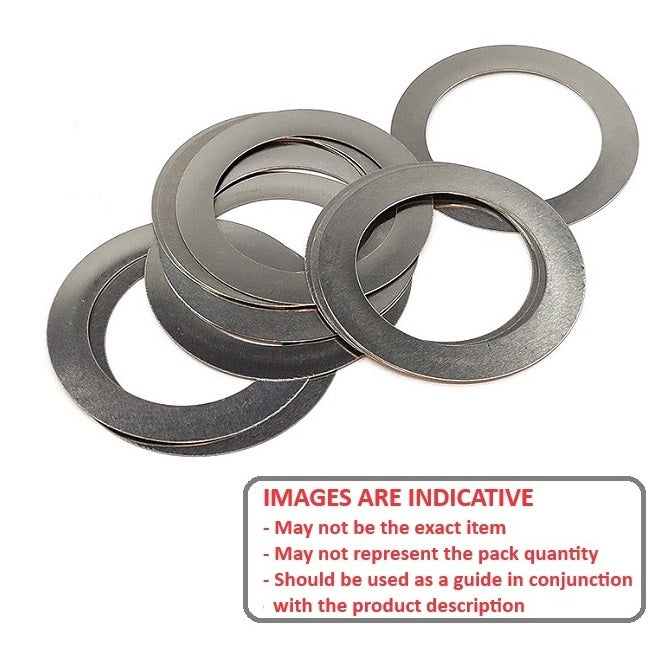

Flat Washers - 8x14x0.25 mm Precision Shim - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Couldn't load pickup availability
8x14x0.25 mm Flat Washers - Carbon Spring Steel Self Finish - Sold per pack of 50:
Base Category: Washers - Flat
Top Level Category: Washers - Flat - Precision Shim - Carbon Spring Steel
Product Details
Deleted Item. Available while stocks last.

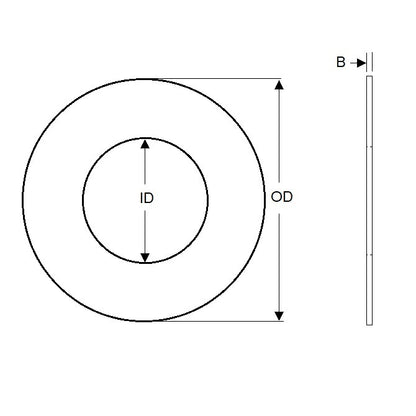

Nominal Inside Diameter (d): 8.000mm
+ 0.300 / - 0.000
(8.000mm is 0.315 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 8.000mm
+ 0.300 / - 0.000
(8.000mm is 0.315 in.)
- Nominal Outside Diameter (D): 14.000mm
+ 0.000 / - 0.300
(14.000mm is 0.551 in.)
- Thickness (T): 0.250mm
+ 0.000 / - 0.040
(0.250mm is 0.01 in.)
- Other: Rockwell B 80 Min
- Grade: Precision
- Other: DIN988
- Min. Actual ID (Ref): 8.04mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- P8x14x0.25
- CPS8X14X0.25
- W0080FP0140025C
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0080FP0140025CL, W0080FP014
