WRI-0794-LS-N (2 Pcs)

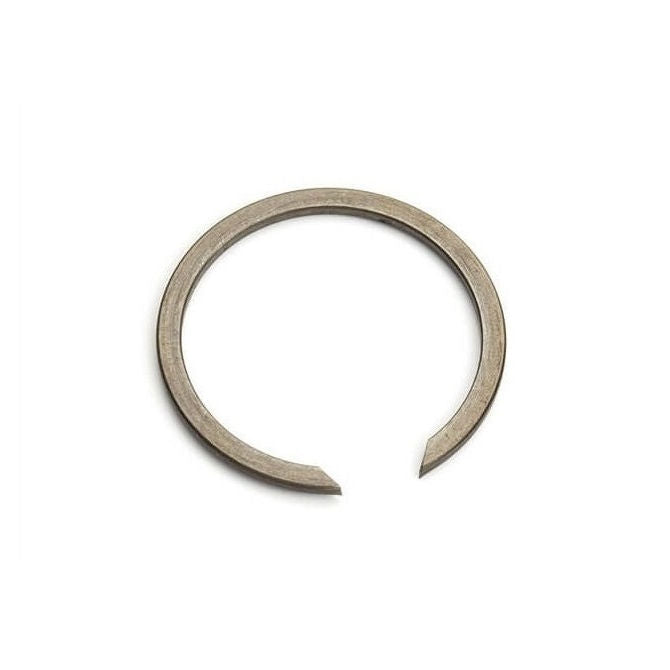

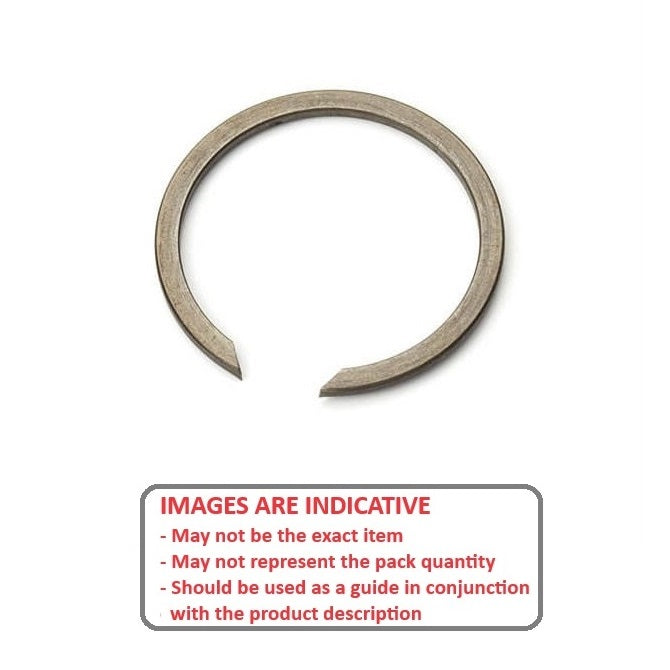

Internal Retaining Rings - 79.38x2.77x84.2 mm - Spring Steel
MBA
Additional resources:Snap Rings and Spiral Rings PDF
Out Of Stock
Order 50 or more (100 pcs) for $11.41 AUD per 2
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Product Details:Additional stock available from USA subject to Prior Sale = 165

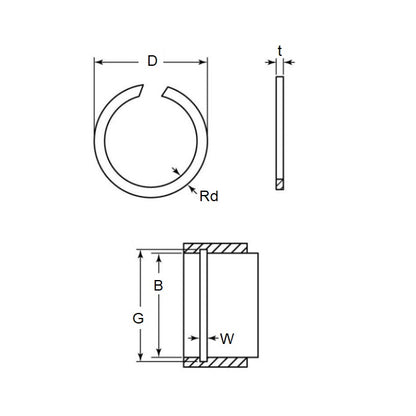

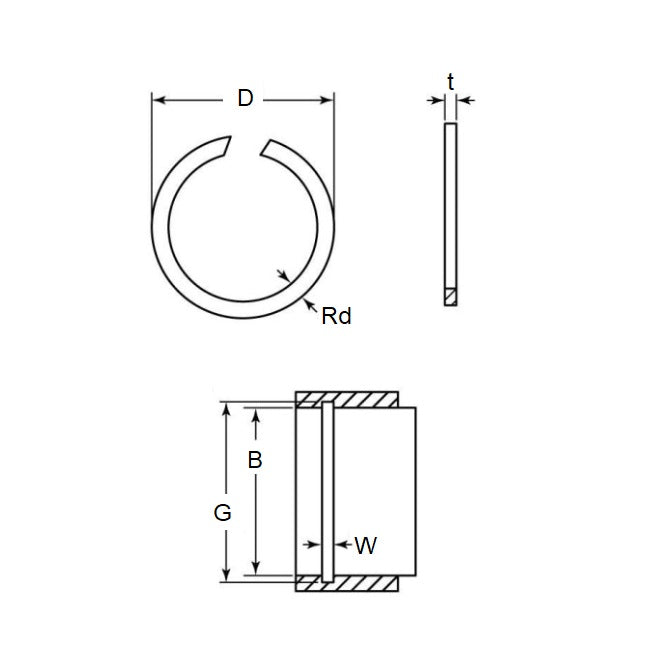

Housing Bore (B): 79.38mm
(79.38mm is 3.125 in.)
Spring Steel
- Clip Thickness (T): 2.77mm
+/- 0.05
(2.77mm is 0.109 in.)
- Groove Dia. (Dg): 84.20mm
+/- 0.15
(84.20mm is 3.315 in.)
- Approx. Loose Circlip OD (Dr): 85.17mm
+ 2.55 / - 0.00
- Section (Rd): 5.54mm
+/- 0.13
- Groove Width (W): 3.05mm
- Approx. Loose Clip ID: 74.09
- Info: Notched
- Section Profile: Rectangular with Square Edge
Brand: MBA
Country of Origin: US
Alternative Parts Include: WRI0794SRN, UHO-312, UHO312, NoCor
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
